Product

ATTX-200 temperature transmitter consists of Pt100 temperature sensor, compensation circuit and switching circuits. It features high stability, temperature sensitivity and reliability. The integrated structure, all- welded design and explosion-proof enclosure ensuring safe operation and temperature measurement in hazardous environment.

ATT-110 Temperature sensor adopts high performance and high reliability RTD Pt100. It features compact design with fast response to ambient temperature change. ATT-110 temperature sensor is specially design for air compressor. Its wide range temperature measurement makes ATT-110 suitable for measuring liquid and gas temperature or solid surface temperature in various industrial process application.

LPTX-HT420S is a heat-resistance level transmitter which is suitable for high temperature fluid level measurement. It has been widely in geothermal water, boiler level measurement and water electricity, power generator level monitor.

LPT integrated level transmitter adopts high quality SS316L diaphragm pressure sensor and features high accuracy and strong anti-corrosive performance, which has been used in various industrial process level control.

PTX-302 adopts stainless material with integrated welded structure design to ensuring its explosionproof performance. The rigid and compact design with vibration-proof, waterproof and explosionproof performance makes PTX-302 suitable for pressure measurement in the hazardous environment.

PTX-301 adopts stainless material with integrated welded structure design to ensuring its flameproof performance. The rigid and compact design with vibration-proof, waterproof and flameproof performance makes PTX-301 suitable for pressure measurement in the hazardous environment.

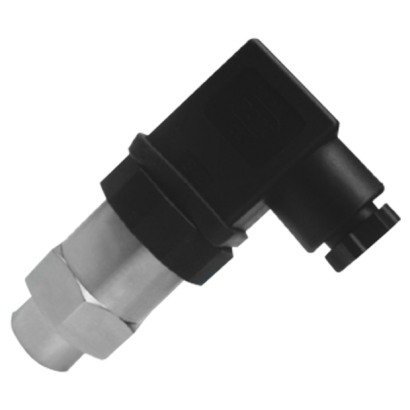

PS(E)-WT10 industrial pressure sensor is a standard and economical pressure sensor that applied in air and liquid pressure measurement. Each sensor adopts a high sensitivity piezoresistive silicon pressure chip. The housing is filled with oil for pressure transmission. PS (E)-WT10 sensor is specially designed for industryapplication with long-term stability.

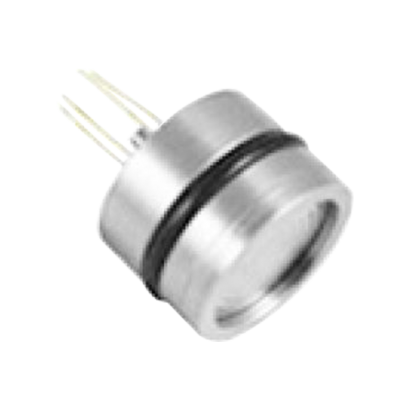

PS (E)-WT19 industrial pressure sensor is a high performance pressure sensor which can be assembled into standard signal output transmitter. The core is sealed with O-ring for easy installation. Suitable for the industries of biomedical, marine, aviation and defense. Applications include control system, pressure calibration, refrigeration and HVAC system, hydraulic system, level measurement, and harsh corrosive medium environment.

FDPT-9 pressure transmitter adopts flush diaphragm structure, which is specially design for viscous fluid pressure measurement. It has been applied to petroleum, chemical, electrical, hydraulic, pneumatic, energy industry, water treatment, automatic equipment, and industry process control.

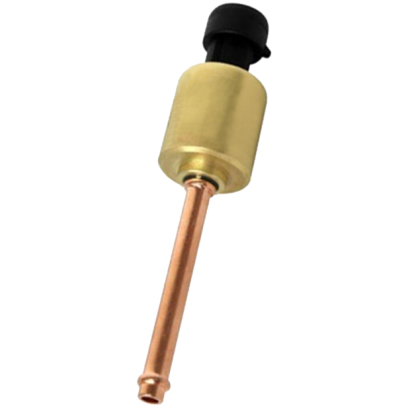

PT-CH 1202 pressure transmitter widely used in watercooled screw chillers, water-sourced heating pump and over-flowed high temperature chillers, etc. It apply to measure the pressure of refrigerants and cooling medium (before/after energy exchange). The measured pressure value will transmit to chiller control unit and control chiller working status accordingly.

FDPT(MP) series flush diaphragm pressure transmitter adopts flush connection design. The blind space has been eliminated to prevent impurity generated, making FDPT(MP) series transmitter suitable for corrosive or viscous media pressure measurement.

Features
■ OEM service
■ Low power consumption
■ Positive and negative over-voltage protection
■ High overload and electrical strength
■ Anti-salt spray
■ EMC comply with CE & IEC standards
