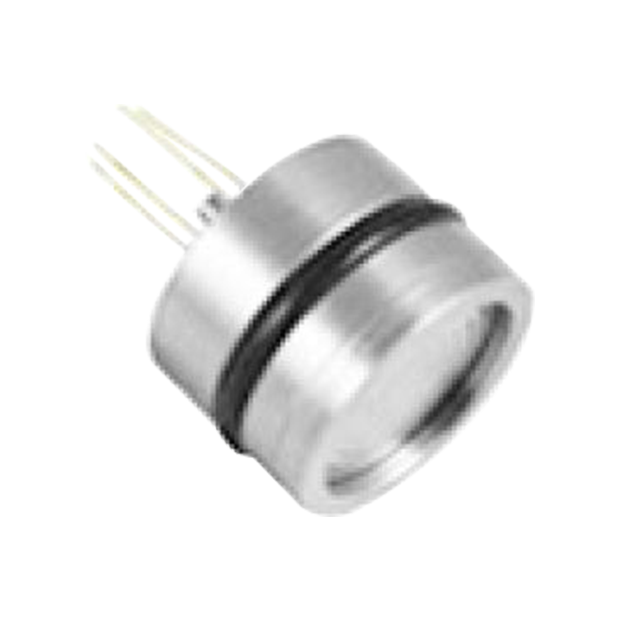

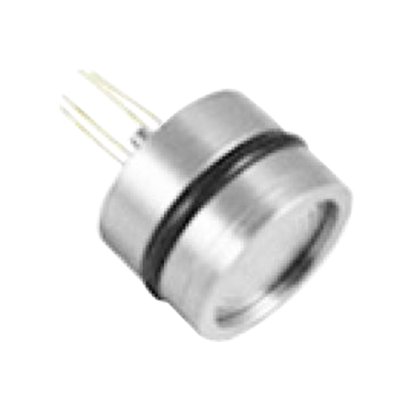

  • Industrial Pressure Sensor

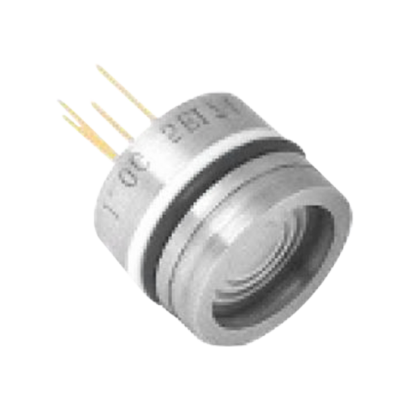

  • Industrial Pressure Sensor

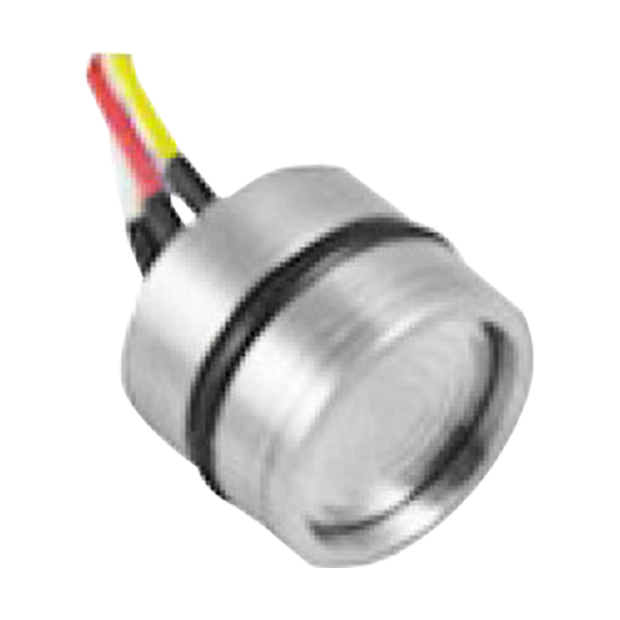

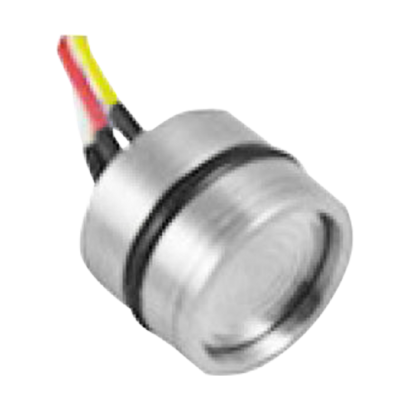

  • Industrial Pressure Sensor

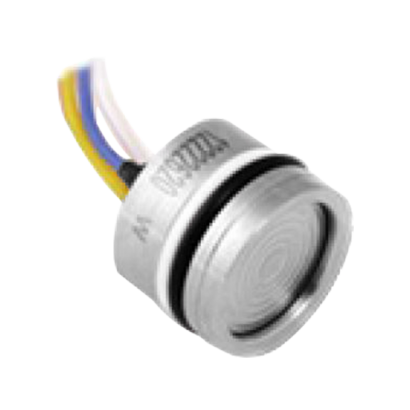

  • Industrial Pressure Sensor
DETAIL
Industrial Pressure Sensor
Model: PS(E)-WT19

Introduction

PS (E)-WT19 industrial pressure sensor is a high performance pressure sensor which can be assembled into standard signal output transmitter. The core is sealed with O-ring for easy installation.  Suitable for the industries of biomedical, marine, aviation and defense. Applications include control  system, pressure calibration, refrigeration and HVAC system, hydraulic system, level measurement, and  harsh corrosive medium environment.

Features
■ OEM service
■ Adopts diaphragm as pressure sensor
■ Wide pressure range and electrical connection available
■ Power supply with options: 1.5mA or 10VDC
■ Wide temperature compensation range
■ All SS316L material design

Main Specifications
▼Size
Φ19mm (Std.)
▼Pressure type
Gauge pressure (G) / Absolute pressure (A) / Sealed gauge pressure (S)
▼Pressure range
-100kPa~0~10kPa…100MPa
For more information please refer to pressure range table
▼Electrical connection
4-wire connection / 5-wire connection / 6-pin connection
(Gold-plated KOVAR pin or silicon soft wire)
▼Applicable media
Liquid and gas that compatible with SS316L
▼Sealing
O-ring sealing
Material: NBR, fluororubber
▼Oil-filling
Silicon oil
▼Operating temperature
-40 to 125℃
▼Storage temperature
-40 to 125℃
▼Vibration resistance
20g (20-5000Hz)
▼Shock
100g (ms)

Other Specifications
▼Diaphragm material
SS316L
▼Housing material
SS316L
▼Power supply
For constant current: 1.5mA / For constant voltage: 10VDC
▼Accuracy
0.25%F.S.
▼Response time
≦1ms (up to 90%F.S.)
▼Non-linearity, hysteresis, repeatability
Please refer to basic parameters table
▼Zero & full scale span output
Please refer to basic parameters table
▼Zero & span temp. coefficient
Please refer to basic parameters table
▼Thermal hysteresis
Please refer to basic parameters table
▼Long term stability
Please refer to basic parameters table
▼Compensated temperature
For constant current: 0 to 60℃ (≦35kPa)
-10 to 70℃ (Other range)
For constant voltage: -20 to 85℃
▼Insulation resistance
>200MΩ / 250VDC
▼Operating overpressure
For more information please refer to pressure range table
▼Burst pressure
For more information please refer to pressure range table
▼Service life
10×106 cycles
▼Other requests (Option)
Third party notarized document
Inspection report (issued by Re-Atlantis)
Tag
