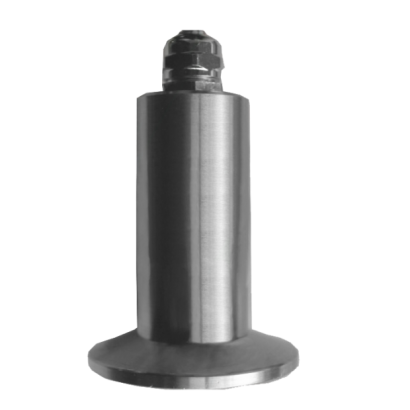

Flush Diaphragm Pressure Transmitter FDPT-9

Flush Diaphragm Pressure Transmitter FDPT-9

FDPT-9 pressure transmitter adopts flush diaphragm structure, which is specially design for viscous fluid pressure measurement. It has been applied to petroleum, chemical, electrical, hydraulic, pneumatic, energy industry, water treatment, automatic equipment, and industry process control.
DETAIL

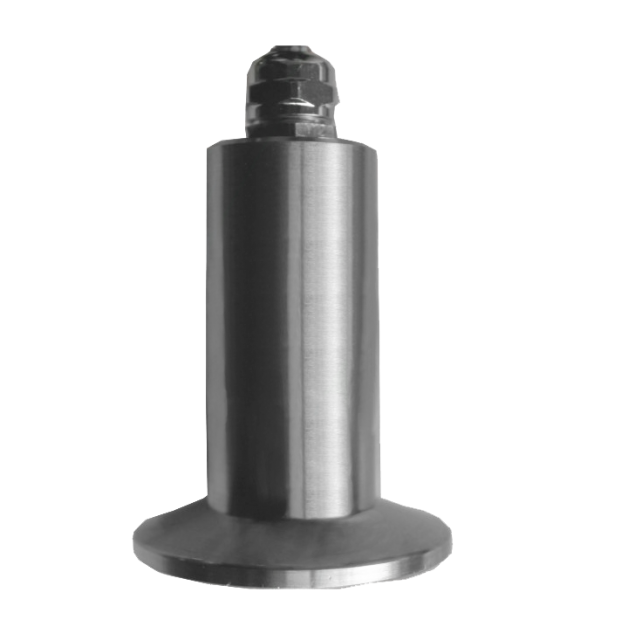

Flush Diaphragm Pressure Transmitter
Model: FDPT-9

Introduction

FDPT-9 pressure transmitter adopts flush diaphragm structure, which is specially design for viscous fluid pressure measurement. It has been applied to petroleum, chemical, electrical, hydraulic,  pneumatic, energy industry, water treatment, automatic equipment, and industry process control.

Features
■ OEM service
■ Flush process connection, suitable for viscous fluid pressure measurement
■ Fast installation
■ The open design allowing easy cleaning, and blind space has been eliminated to prevent impurity generated
■ Suitable for sanitary required environment

Main Specifications
▼Dimension
62 x 50mm
▼Process connection
Tri-clamp
▼Pressure range
Gauge / Absolute pressure
Min.: -1 bar
Max.: 600 bar
▼Applicable media
Liquid and gas that compatible with SS316L or ceramic
Viscous fluid
▼Operating temperature
-20 to 85℃
▼Protection level
IP65

Other Specifications
▼Housing material
SS304 / SS316L (Option)
▼Measuring element
Flush diaphragm
Material: SS316L / Ceramic
▼Power supply
12~36VDC (standard 24V)
▼Output Signal
4~20mA / 0~20mA / 0~5V / 0~10V / 1~5V
▼Load capacity
≤ 750Ω
▼Response time
≤ 1ms
▼Accuracy
0.1% / 0.25% / 0.5%
▼Non-linear accuracy
0.2% F.S.
▼Hysteresis
0.2% F.S.
▼Repeatability
0.2%% F.S.
▼Zero drift
≤ 0.1%F.S
▼Temperature drift
≤ 0.02%F.S/℃ (@25℃)
▼Overpressure pressure
2*F.S.
▼Service life
> 900 million cycles
▼Weight
90g
▼Other requests (Option)
Third party notarized documents
Inspection report (issued by Re-Atlantis)
Tag
