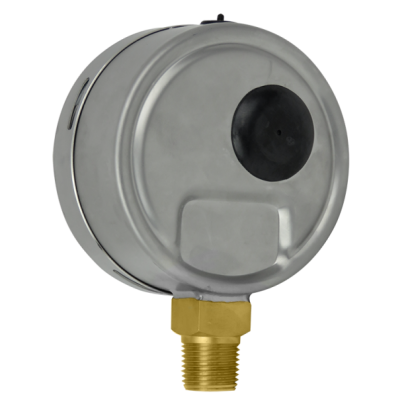

  • Stainless Steel Case Safety Pattern Pressure Gauge SF-SC.png

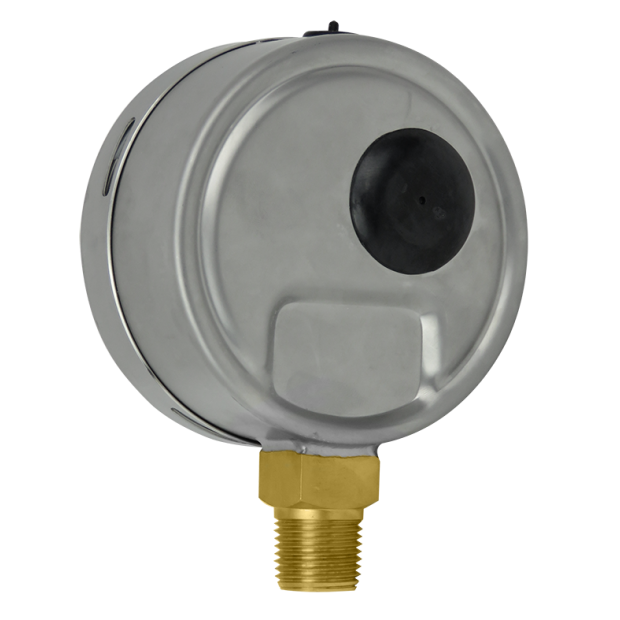

  • Stainless Steel Case Safety Pattern Pressure Gauge SF-SC.png

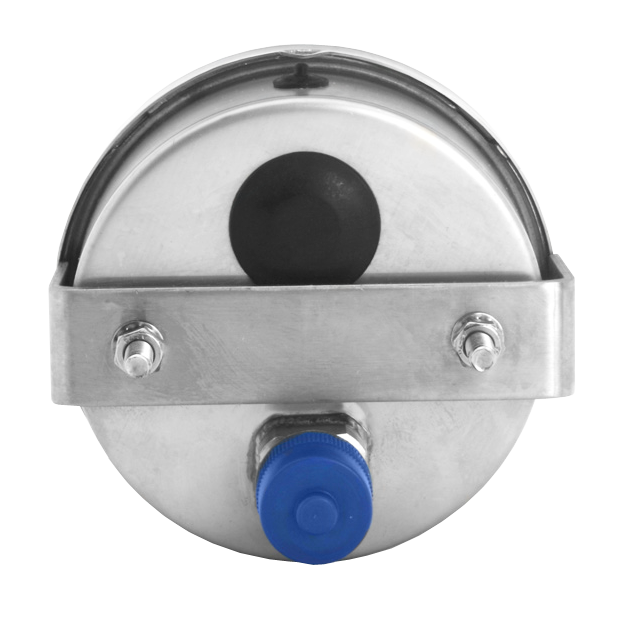

  • Stainless Steel Case Safety Pattern Pressure Gauge SF-SC.png

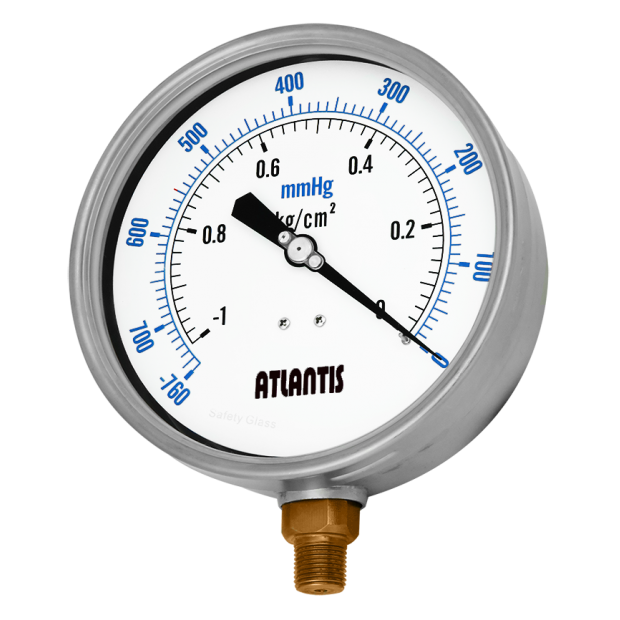

  • Stainless Steel Case Safety Pattern Pressure Gauge SF-SC.png

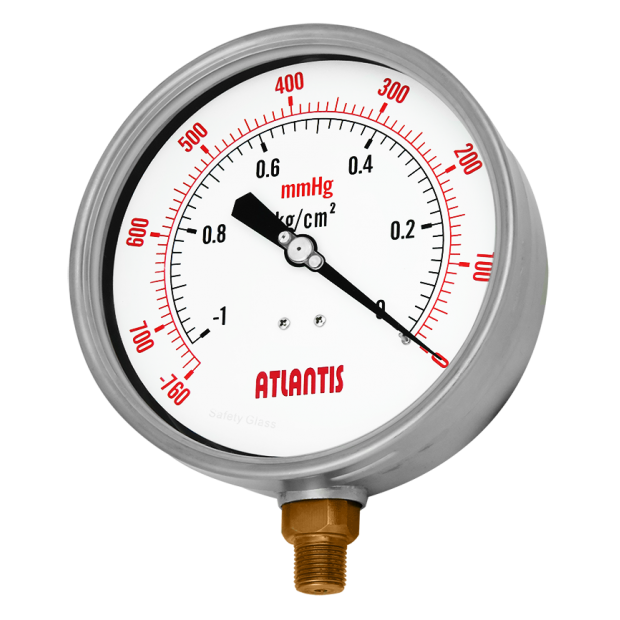

  • Stainless Steel Case Safety Pattern Pressure Gauge SF-SC.png

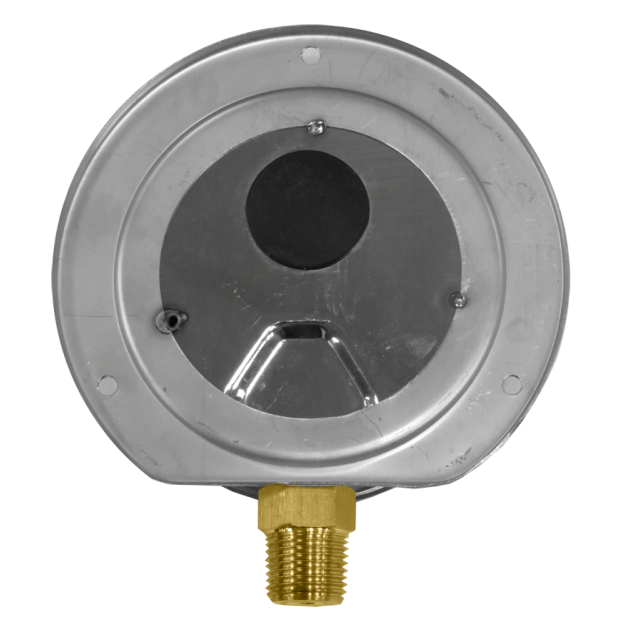

  • Stainless Steel Case Safety Pattern Pressure Gauge SF-SC.png
DETAIL

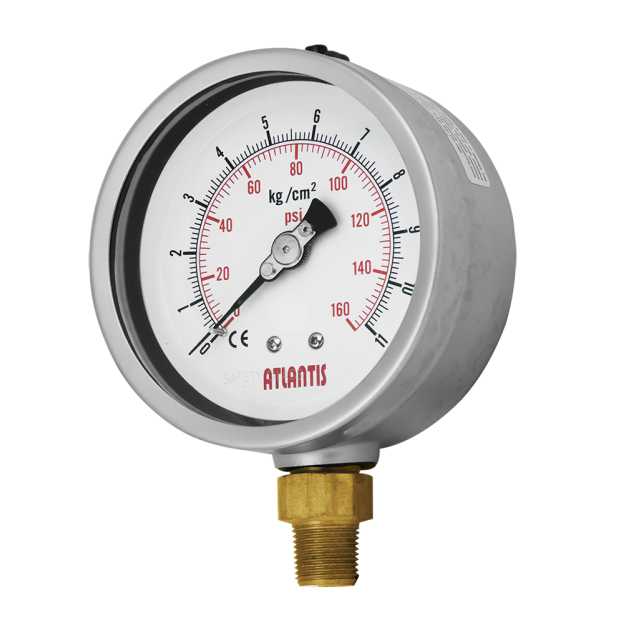

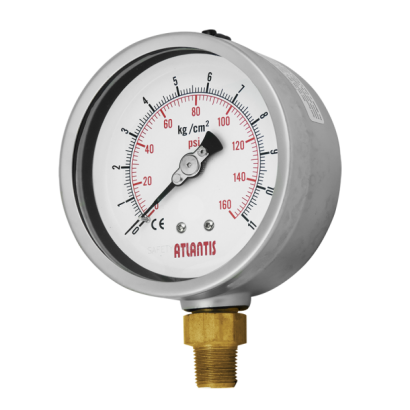

Stainless Steel Case Safety Pattern Pressure Gauge
Model: SF-SC


Features
■ OEM service
■ Stainless steel case design
■ Install a blow-out back, specially design for industrial applications
■ Sealing connection with O-ring
■ Long service life

Main Specifications
▼Size
4”,6”
▼Installation type

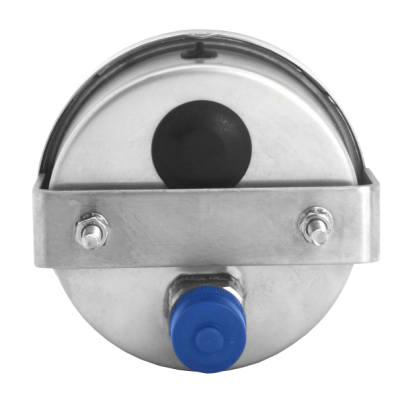

Bottom mount (A) / Bottom mount with flange (B) / Back mount (eccentric thread) (ADE) / Back mount with flange (eccentric thread) (BDE) / Back mount with U-Clamp (Eccentric thread) (UDE) /
Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
▼Window
Safety glass
Rubber O-ring sealed
▼Pressure connection
Material: copper alloy
Rubber O-ring sealed
Size: 1/4”, 3/8”, 1/2”
Type: BSPT, NPT, PF
Other thread specifications please specify before order
▼Pressure range
Gauge pressure▼
0…1 to 350bar
Negative pressure▼
-1…0bar
Compound▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
Dry & Silicone oil filled
-40°C to +60°C
Glycerin filled
-20°C to +60°C
▼Fluid temperature
+60°C
▼Temperature drift
Every ±12 °C
max. error: ±0.3%F.S.
▼Protection level
IP54 (standard) / IP65 (option)

Other Specifications
▼Ring
Stainless steel
▼Ring mount
Inside bayonet
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Pressure unit, scale & color can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy

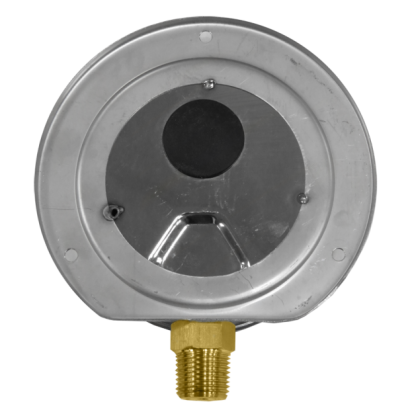

▼Safety design
Blow-out back
▼Movement
Copper alloy
▼Accuracy
±3.0%F.S.
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
