All Stainless Steel Differential Pressure Gauge (Bellow type) MDX

All Stainless Steel Differential Pressure Gauge (Bellow type) MDX

MDX differential pressure gauge adopts bellow as pressure sensor, which is suitable for measuring the differential pressure of liquid, gas and steam from same or different pressure source, can be matched with Triple Valve.

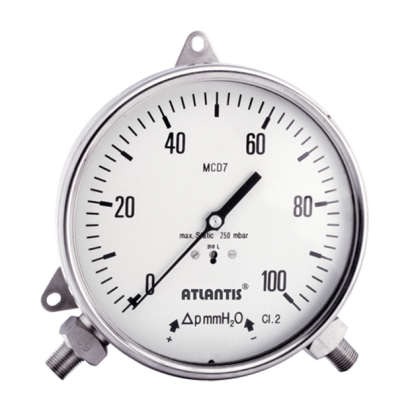

  • All Stainless Steel Differential Pressure Gauge

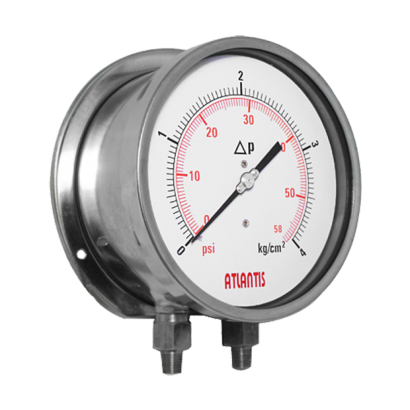

  • All Stainless Steel Differential Pressure Gauge

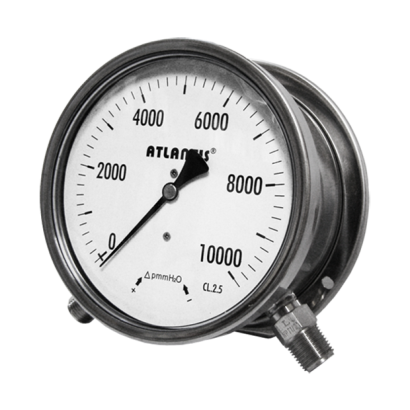

  • All Stainless Steel Differential Pressure Gauge
DETAIL
All Stainless Steel Differential Pressure Gauge (Bellow type)
Model: MDX


Introduction
MDX  differential pressure gauge adopts bellow as pressure sensor, which is suitable for measuring the differential pressure of liquid, gas and steam from same or different pressure source, can be matched
with Triple Valve.

Features
■ OEM service
■ Adopt stainless steel bellow as pressure sensor
■ Welded connection
■ Various installation type for selection
■ Long service life

Main Specifications
▼Size
4”,6”
▼Window
PC (standard)
Option:
Safety glass / Tempered glass
▼Installation type
Bottom Intersection (I)/Bottom parallel (P)/Bottom parallel with flange (PB)/Back parallel (B)/Back parallel with flange (BP)
▼Pressure connection
Material: SS316
Welded connection
Size: 1/2”
Type: BSP, NPT
Other thread spec. available upon request
▼Thread hole pitch
37mm(Φ4") / 54mm(Φ6")
▼Pressure range
0 … 0.1 to 50 bar
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Ambient temperature
-20°C to +70°C
▼Fluid temperature
+100°C
▼Protection level
IP54 (standard) / IP65 (option)

Other Specifications
▼Ring
Stainless steel
▼Ring mount
Outside bayonet
▼Case
SS 304
▼Pointer
Aluminum alloy
▼Dial face
Red and black scale
Dial face design for differential pressure gauge
Pressure unit, color can be customized upon request
▼Measuring elements
Bellow
Material: SS316
▼Movement
Stainless steel
▼Accuracy
±3.0% (Std.)/±2.0% (option)
▼Maximum static pressure
Full scale: 6*full scale
