Black Steel Case Refrigeration Gauge F-EPG

Black Steel Case Refrigeration Gauge F-EPG

F-EPG mechanical refrigeration pressure gauge adopts special dial face with various refrigerants application. It has widely applied in a variety of refrigeration systems pressure measurement, such as air conditioning, refrigerant filling equipment.
  • Black Steel Case Refrigeration Gauge.png
  • Black Steel Case Refrigeration Gauge.png
  • Black Steel Case Refrigeration Gauge.png
DETAIL
Black Steel Case Refrigeration Gauge
Model:   F-EPG


Introduction
F-EPG mechanical refrigeration pressure gauge adopts special dial face with various refrigerants application. It has widely applied in a variety of refrigeration systems pressure  measurement, such as air conditioning, refrigerant filling equipment.

Features
■ OEM service
■ Affordable price
■ Suitable for various refrigerant measurement - R12/R22/R404A/R410A/R502/R507/R134a
■ Special dial face for refrigeration gauge

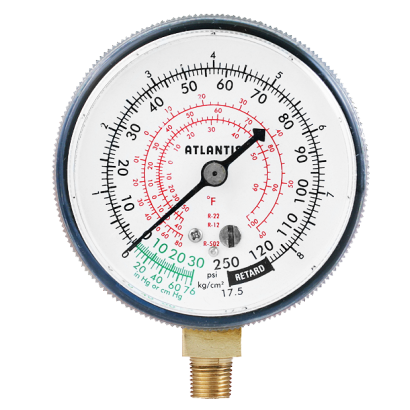

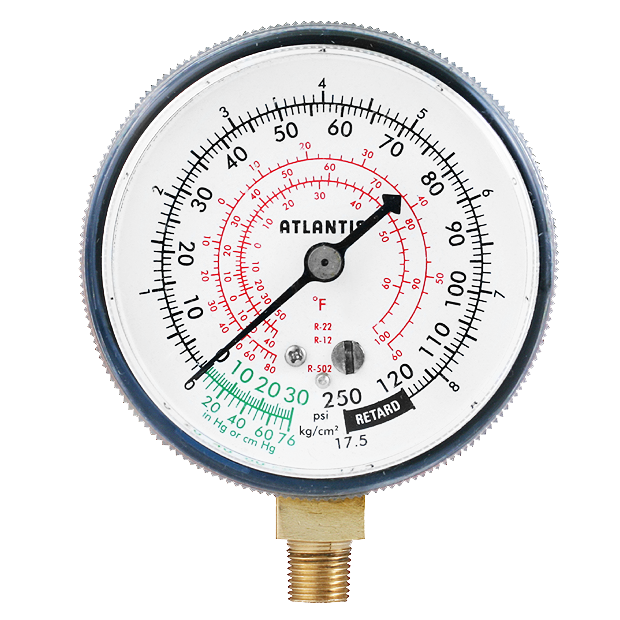

■ Retard scale on dial face for low pressure gauge
■ Various thread specifications and installation type available for selection

Main Specifications
▼Size
2.5”
▼Installation type

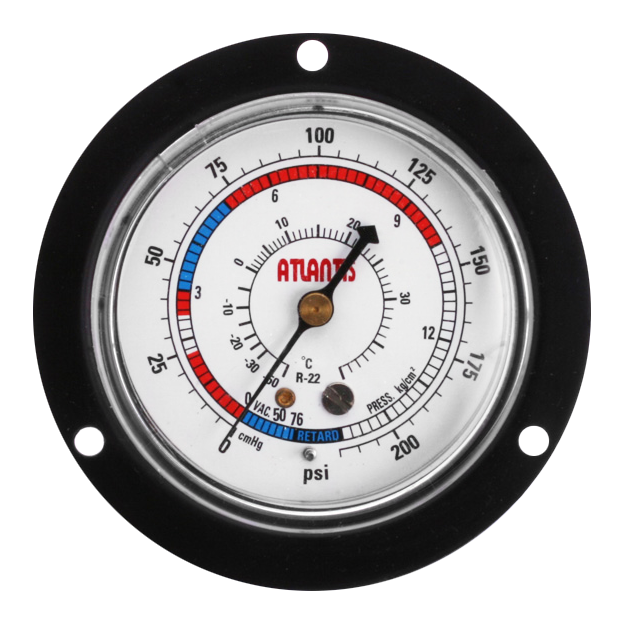

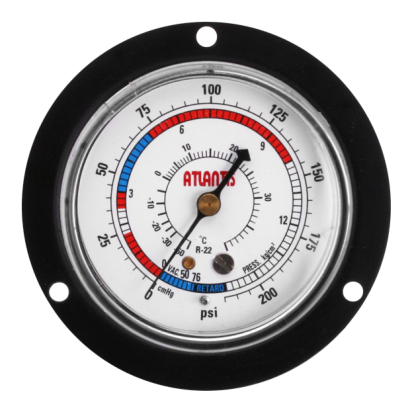

Bottom mount (A)/Back mount with flange (BDC)
▼Window
PC
▼Pressure connection
Material: copper alloy
Bottom mount: 1/8”NPT
Back mount: 7/16”UNF (1/4”SAE)
Other thread spec. are available upon request
▼Pressure range
Low pressure gauge▼
-76cmHg…0… 125 to 250 psi
-76cmHg…0… 250 to 500 psi
High pressure gauge▼
0 … 500psi to 800 psi
▼Applicable refrigerants
R12/R22/R502/R404A/R410A/R507/R134a
For other special refrigerant measurement requirement please specify before order
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every 12°C
max. error: ±0.3% F.S
▼Protection level
IP52

Other Specifications
▼Ring
Steel with black enamel
Snap-in
▼Case

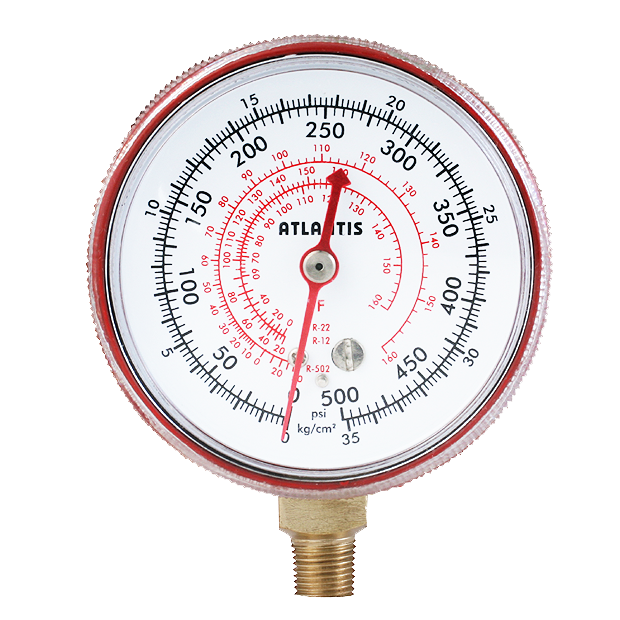

Red for high pressure gauge
Blue for low pressure gauge
Bottom mount material▼
Steel with black enamel/Chrome-plated steel
Back mount material▼
Steel with black enamel/ABS
▼Pointer
Aluminum with black enamel
▼Dial face
Special dial face for refrigeration gauge
Refrigerant-temperature corresponding scale
Pressure unit (custom): kg/cm2, psi, bar, kPa,
Temperature unit: ℃, ℉
With adjustable screw
▼Measuring elements
Bourdon tube
Material:
Bronze (high pressure)/Phosphor bronze (low pressure)
▼Movement
Copper alloy
▼Accuracy
±2.5%
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
