Digital Vacuum Gauge LV116B

Digital Vacuum Gauge LV116B

This digital vacuum gauge adopts battery power supply and it is easy to operate. It is suitable for measuring air content and vacuum in the air conditioning system.
  • Digital Vacuum Gauge
  • Digital Vacuum Gauge
  • Digital Vacuum Gauge
DETAIL

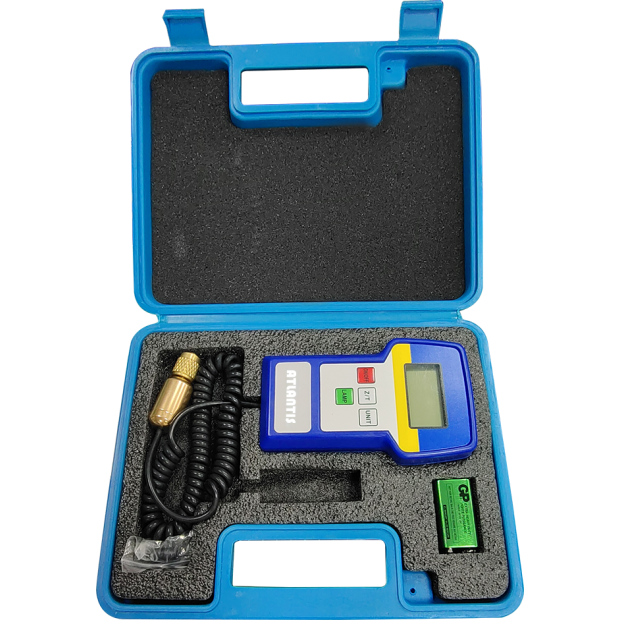

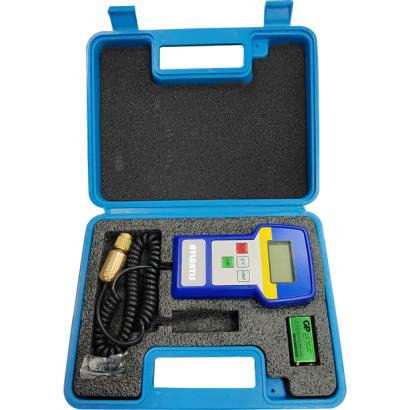

Digital Vacuum Gauge
Model: LV116B

Introduction

This digital vacuum gauge adopts battery power supply and it is easy to operate. It is suitable for measuring air content and vacuum in the air conditioning system.

Features
■ A key to switch pressure unit
■ One-click initialization

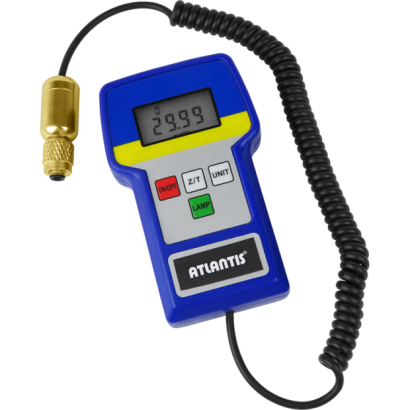

■ LCD display screen, easy to read values, simple interface operation
■ Auto power offautomatically shut down if it is not operated for more than 15 mins.
■ Turn on/off backlight with the button

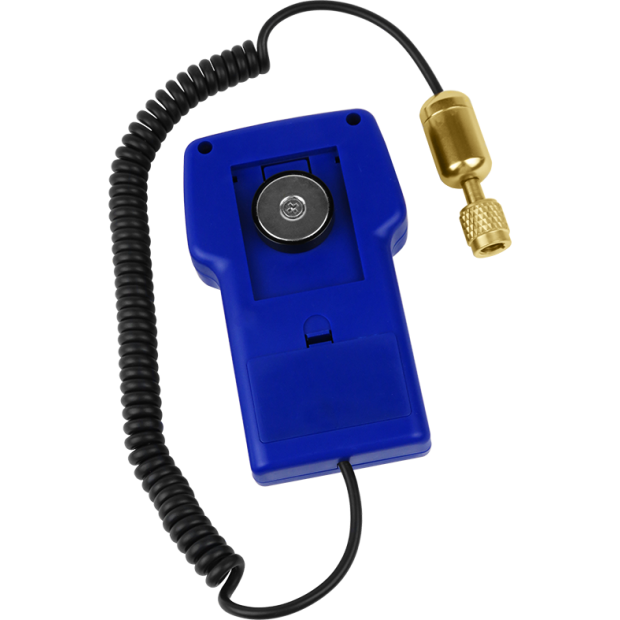

■ Vacuum sensor with integrated spring wire for easy connection to refrigerant equipment

Main Specifications
▼Size
145 x 88 x 30 mm
▼Sensor
Vacuum sensor with
integrated spring wire
▼Connection thread
7/16-20UNF (1/4”SAE)
▼Vacuum measurement range
0 ~ 30000 micron
▼Ambient temperature
-20 ~ 60℃
▼Ambient accuracy
≦85%R.H.

Other Specifications
▼Screen display
LCD display
Turn on/off backlight with the
button
▼Screen size
45 (W) x 23 (H) mm
▼Switchable vacuum unit
Micron / kPa / Torr / mmHg
▼Power supply
9V battery x1
▼Accuracy
±10 micron (@0~2000 micron)
±100 micron (@2000~5000micron)
±300 micron (@5000~10000 micron)
±500 micron (@10000~30000 micron)
