Pressure Damper PD
Pressure Damper PD

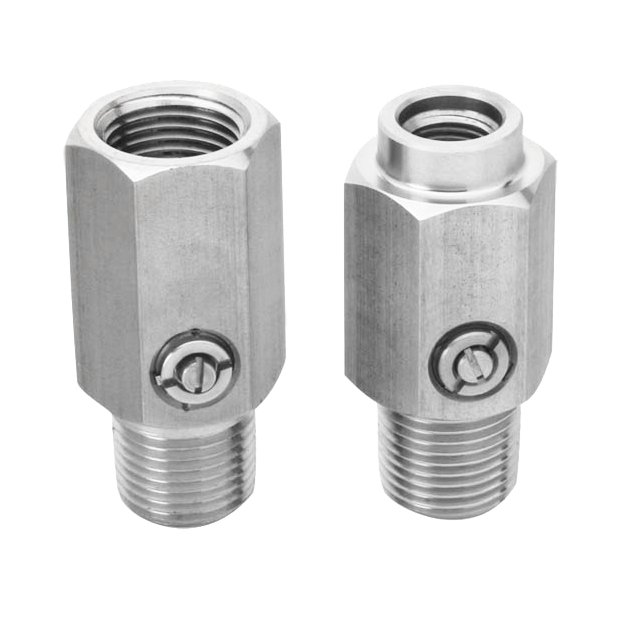

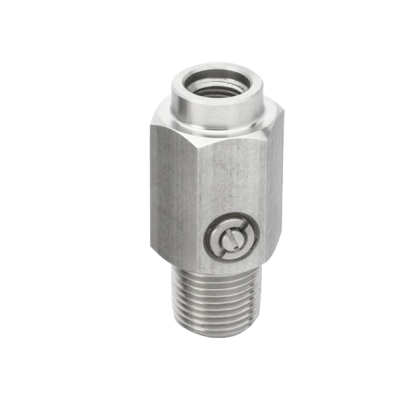

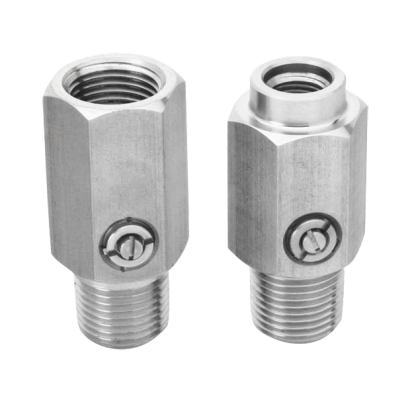

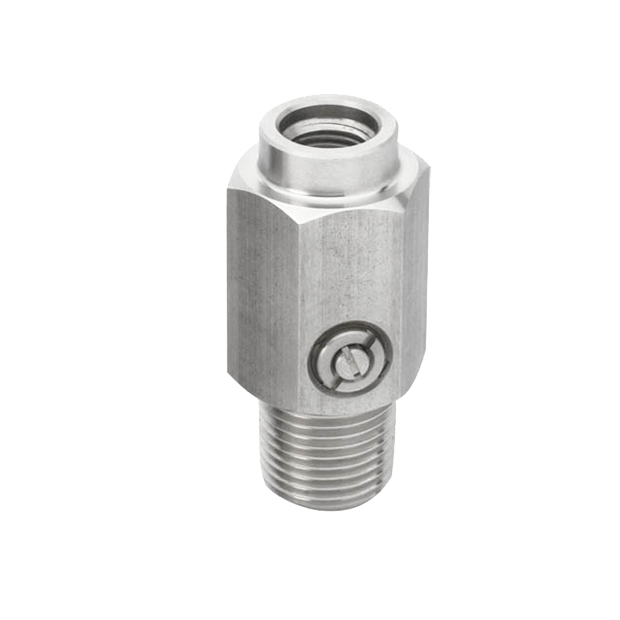

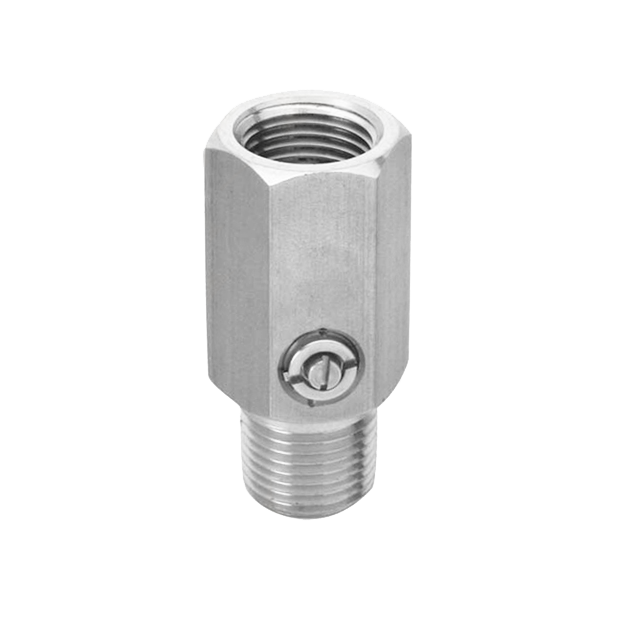

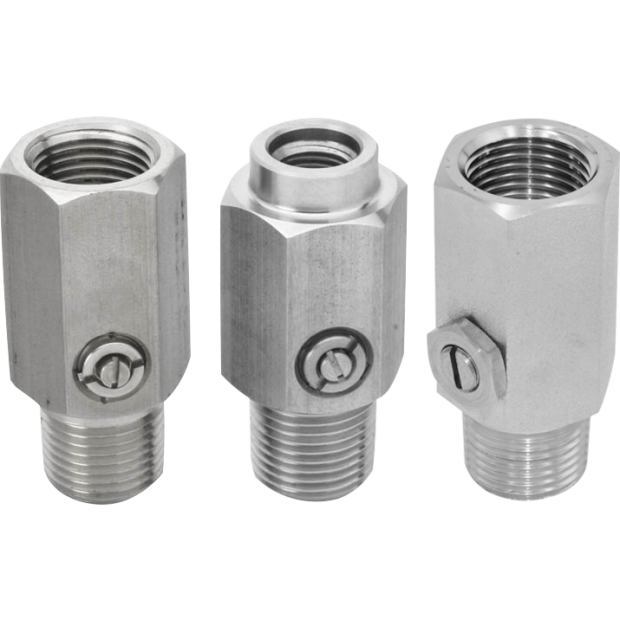

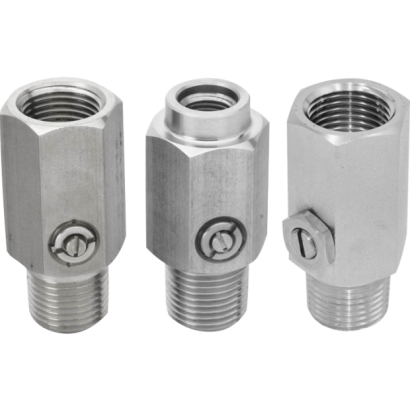

PD damper adopts integrated design, suitable for petrochemical, offshore platforms, and process pipeline.
DETAIL
Model: PD
Introduction
PD damper adopts integrated design, suitable for petrochemical, offshore platforms, and process pipeline.
Features
■ OEM service
■ Max. rated pressure: 400kg/cm2
■ Temperature range: -30~120℃
■ Various damper material for selections
Main Specifications
▼Damper material
Standard:
SS304 / SS316
Option:
SS316L / Monel / Hastelloy C / Tantalum / Titanium / Brass
▼Process & gauge side connection
General:
1/4"；3/8"；1/2"
PT / NPT / PF
Male / female thread
Available made-to-order
For other general spec. please refer to process & gauge side table in the following page
▼Max. rated pressure
400kg/cm2
▼Temperature range
-30~120℃
▼Sealing material
FKM
