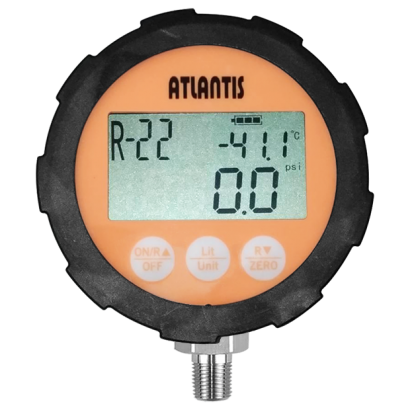

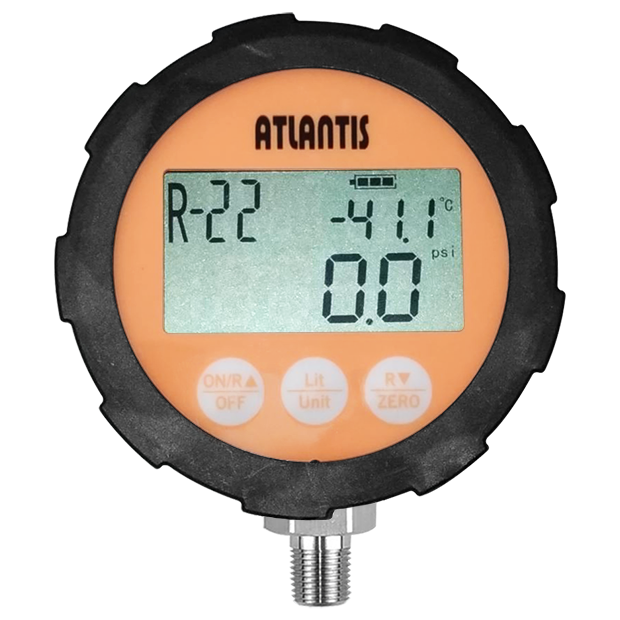

Digital Refrigeration Gauge FDPG-2.5

Digital Refrigeration Gauge FDPG-2.5

FDPG-2.5 digital refrigeration gauge can simultaneously display pressure and saturation temperature on LCD screen. FDPG-2.5 is suitable in pressure and temperature measurement for noncorrosive refrigeration, liquid and alcohols.
  • Digital Refrigeration Gauge.png
  • Digital Refrigeration Gauge.png
DETAIL
Digital Refrigeration Gauge
Model: FDPG-2.5


Introduction
FDPG-2.5 digital refrigeration gauge can simultaneously display pressure and saturation temperature on LCD screen. FDPG-2.5 is suitable in pressure and temperature measurement for noncorrosive refrigeration, liquid and alcohols.

Features
■ Measurable pressure range -14.5~800psi
■ Switchable pressure units
■ 21 types of applicable refrigerants

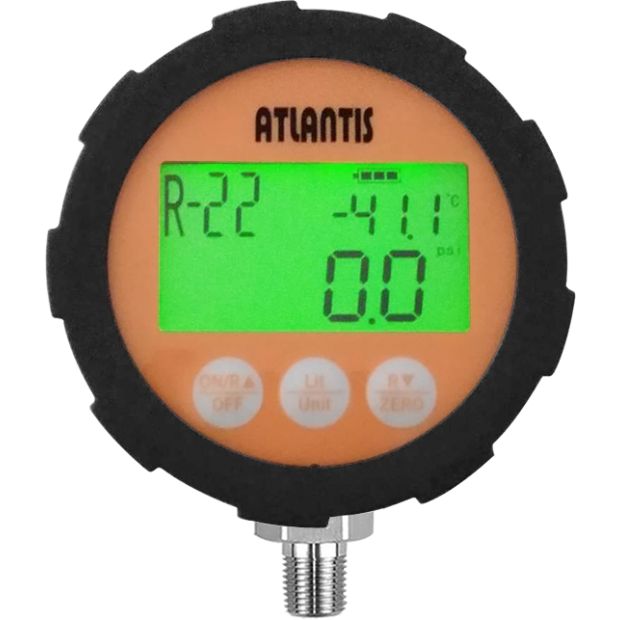

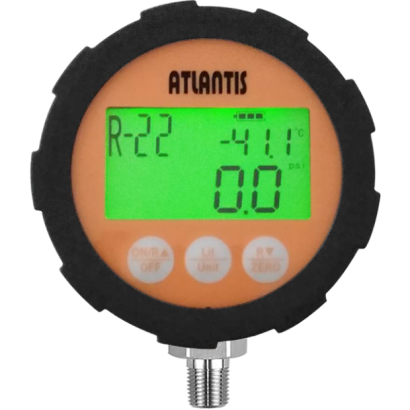

■ 4.5 digits LCD screen with backlight function, fast refresh rate
■ One-click return to zero function
■ Power saving design - 10 mins auto power off
■ Battery life indicator on screen

Main Specifications
▼Size
2.5”
▼Pressure connection
1/8”NPT
▼Pressure range
-14.5 ~ 800 psi
▼Applicable refrigerants
21 types
R22, R23, R32, R124, R134A, R290, R404A, R407C, R407F, R408A, R410A, R417A, R427A, R444B, R448A, R449A, R452A, R507, R600A, R1234YF, R1270
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Operating temperature
-10 to 60℃
▼Operating humidity
35~85% RH

Other Specifications
▼Housing material
ABS
▼Screen display
4.5 digits LCD with backlight
Switchable pressure unit: psi / bar / MPa / kg/cm2 / kPa
Temperature unit: ℃ / ℉
▼Refresh rate
Max. 1.2 sec/times
▼Pressure resolution
0.1psi / 0.01bar / 1kPa / 0.001MPa / 0.01kg/cm2
▼Temperature resolution
0.1℃(@<100℃)/1℃(@≧100℃)
0.1℉(@<100℉)/1℉(@≧100℉)
▼Accuracy
±0.5%F.S. (@22~28℃)
±1.0%F.S.
▼Power supply
CR123A battery x1 (3.0V, 1400mAh)
Battery life:
About 2 years for continuous operation without backlight
▼Burst pressure
3xF.S.
