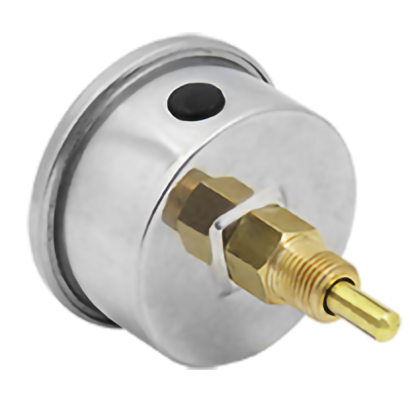

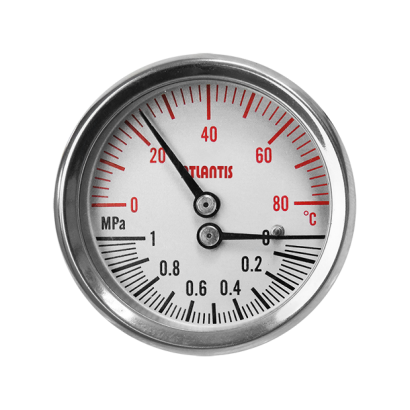

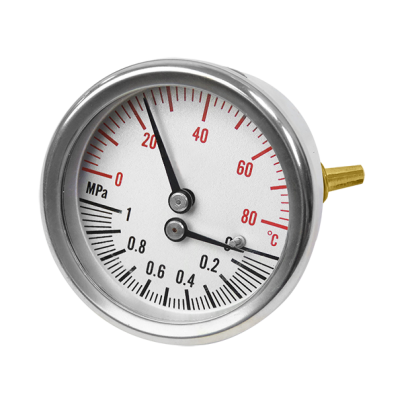

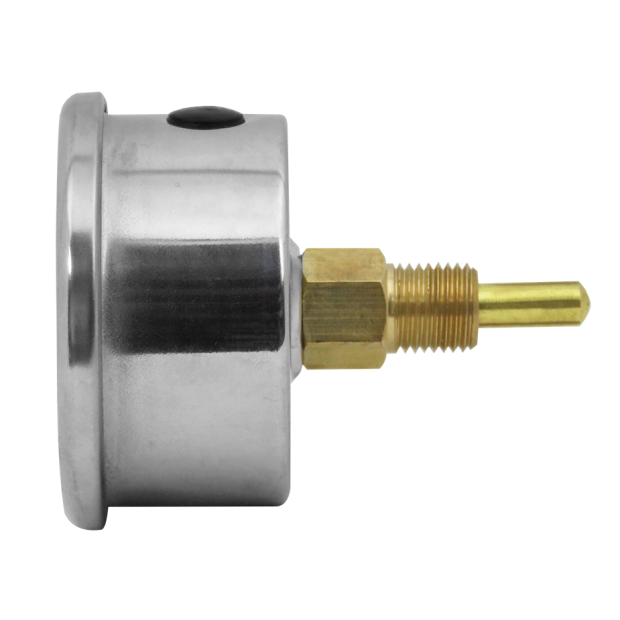

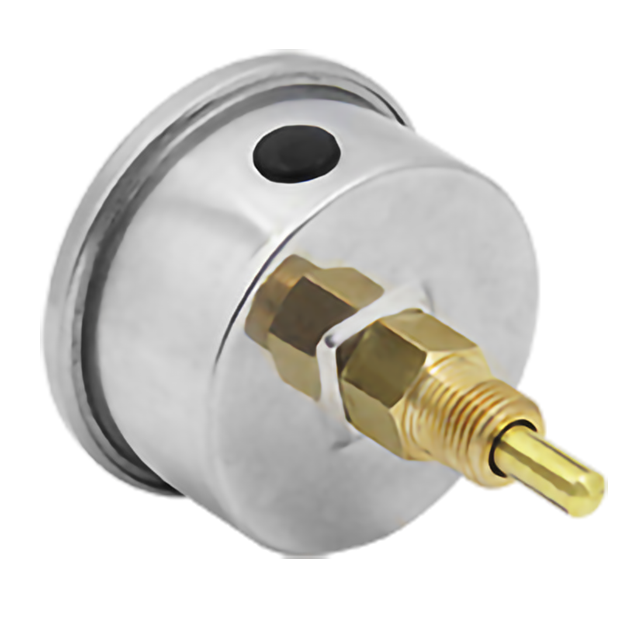

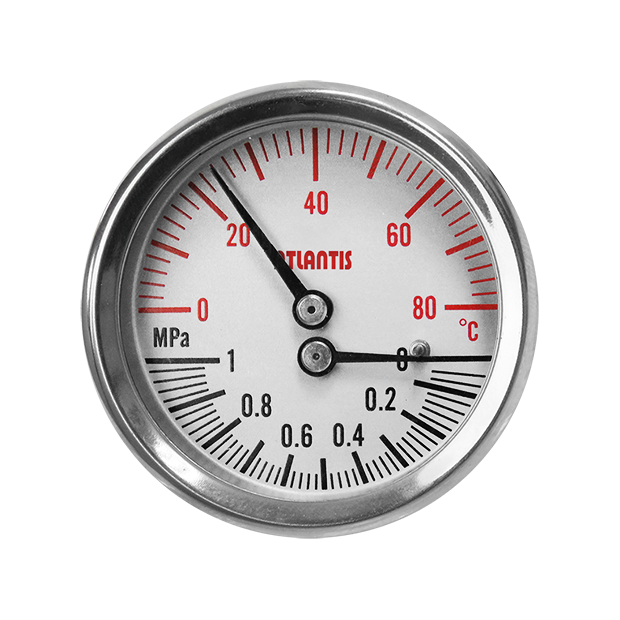

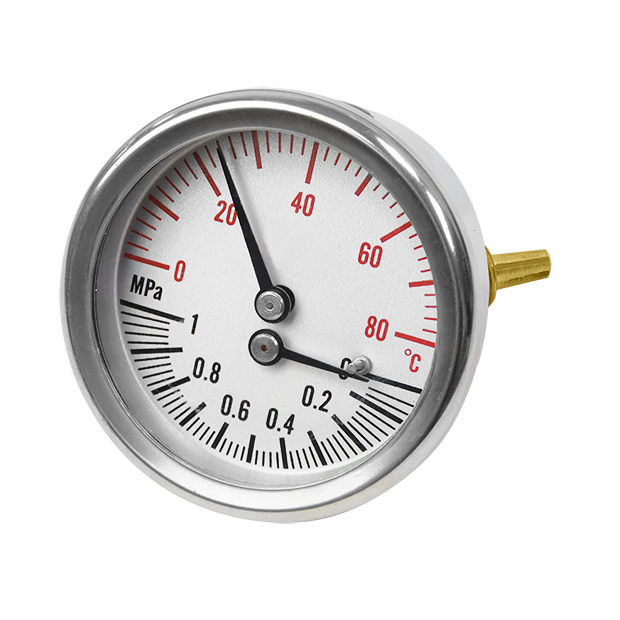

Stainless Steel Case Thermo-manometer
Model: TMG-SC


Introduction
Integrated indication for pressure and temperature design, reducing space and cost.

Features
■ OEM service
■ Combined indication for pressure and temperature
■ Stem length and diameter can be customized upon request

Main Specifications
▼Size
2.5”
▼Window
Glass
Silicone rubber O-ring sealed
▼Process connection
Material: copper alloy
1/4”NPT
▼Pressure range
0…1 to 16bar
▼Temperature range
Min. -50°C
Max. 160°C
▼Stem length
25mm
Other available upon request
▼Stem outer diameter
6.35mm
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
Equal to the specified temperature measurement range
▼Temperature error
Every 12 °C
max. error ±0.3% F.S
▼Protection level
IP65

Other Specifications
▼Ring
Stainless steel
▼Case
SS 304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
▼Measuring elements
Bourdon tube
Material: copper alloy
Bimetal
▼Movement
Copper alloy
▼Accuracy
Pressure: ±1.6%
Temperature: ±1℃
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
