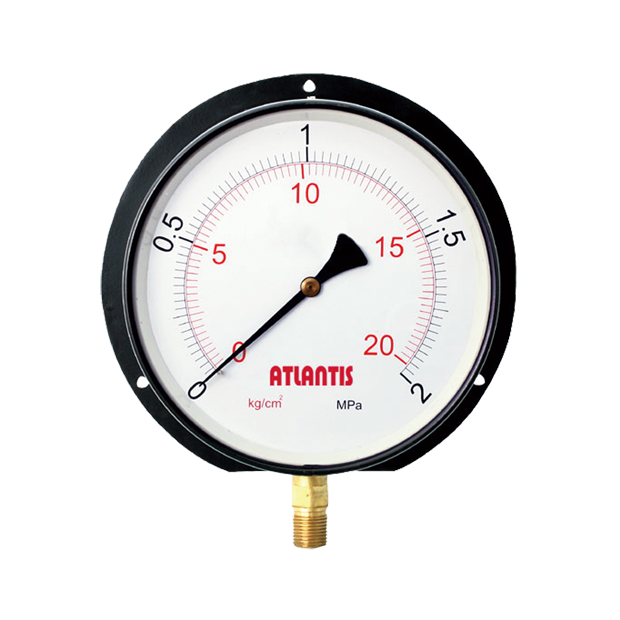

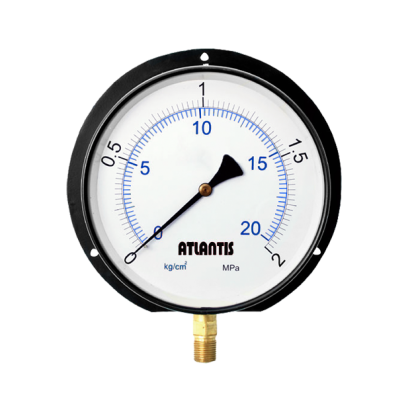

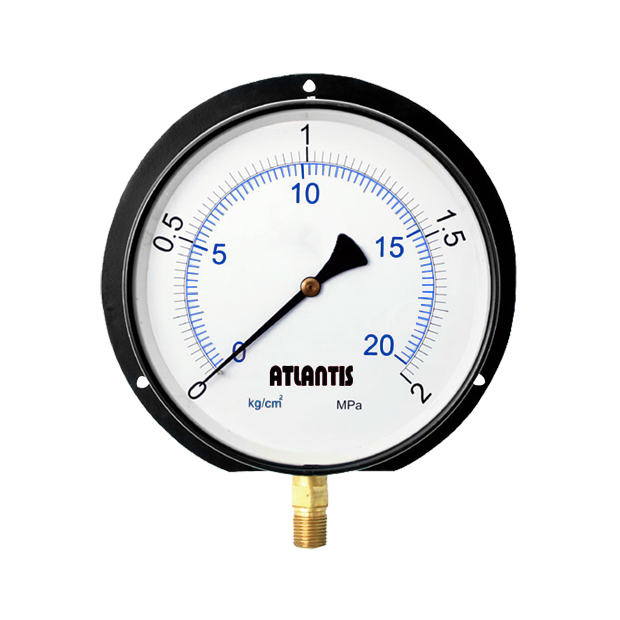

Black Steel Case Large Size Pressure Gauge LS-EPG

Black Steel Case Large Size Pressure Gauge LS-EPG

LS series pressure gauge features large dial face with clear readings, which is suitable for large apparatuses that require remote reading.
  • Black Steel Case Large Size Pressure Gauge.png
  • Black Steel Case Large Size Pressure Gauge.png
DETAIL
Black Steel Case Large Size Pressure Gauge
Model: LS-EPG


Introduction
LS series pressure gauge features large dial face with clear readings, which is suitable for large apparatuses that require remote reading.

Features
■ OEM service
■ 8”~12” large size pressure gauge
■ Large size dial face increases legibility
■ Specially design for apparatuses need remote reading

Main Specifications
▼Size
8”, 10”, 12”
▼Installation type
Bottom mount (A) / Bottom mount with flange (B)
▼Window
PC (Option: Tempered glass)
PE gasket
▼Pressure connection
Material: copper alloy
Unsealed connection
Size: 3/8”, 1/2”, 3/4”
Type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar
Negative pressure▼
-1…0bar
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54

Other Specifications
▼Ring
Steel with black enamel
▼Ring mount
Screw fixed
▼Case
Steel with black enamel
▼Pointer
Aluminum with black enamel
▼Dial face
Blue & black scale
Special large dial face
Pressure unit, scale, color can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy / SS304
<400bar: copper alloy
≥400bar: SS304
▼Movement
Copper alloy
▼Accuracy
±2.5%F.S.(standard) / ±1.6%F.S. (option)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
