Mini Pressure Gauge (Bourdon Tube Type) SBG

Mini Pressure Gauge (Bourdon Tube Type) SBG

The mini pressure gauge is commonly applied in limited space with affordable price. It is suitable for liquid and gas pressure measurement that compatible with connection’s material.

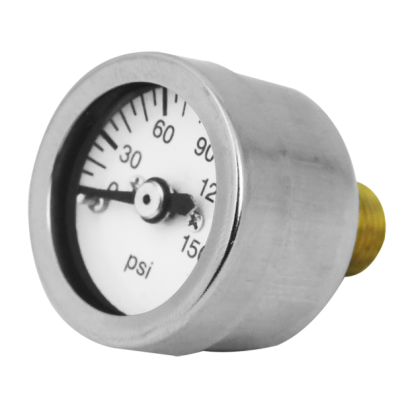

  • Mini Pressure Gauge.png

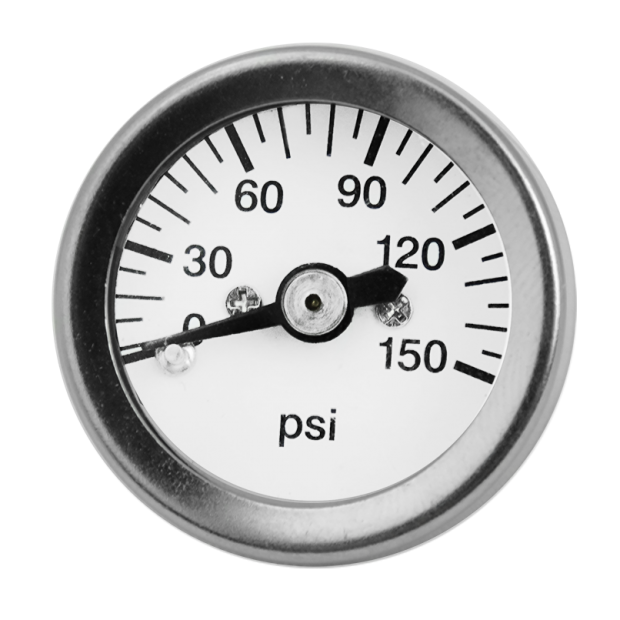

  • Mini Pressure Gauge.png

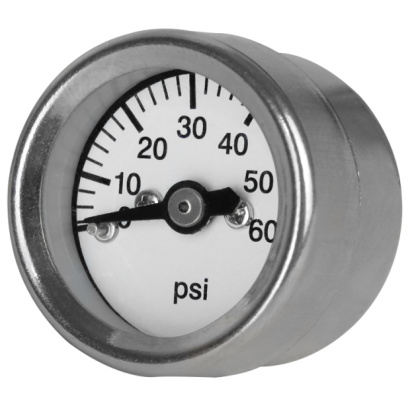

  • Mini Pressure Gauge.png

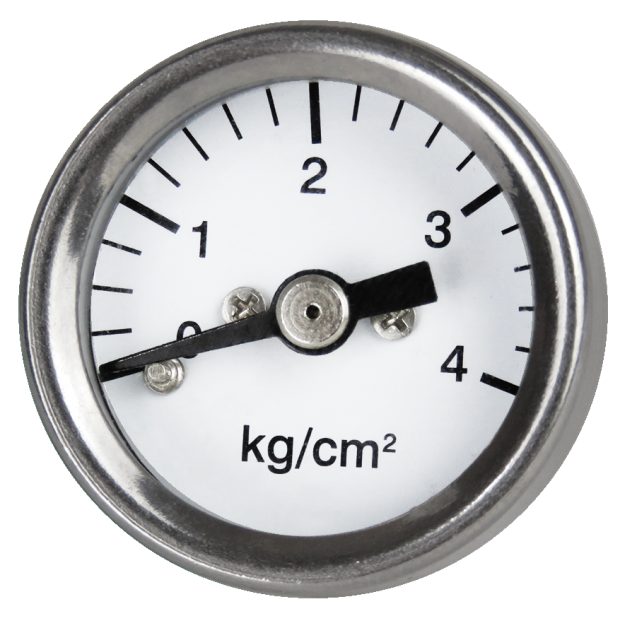

  • Mini Pressure Gauge.png

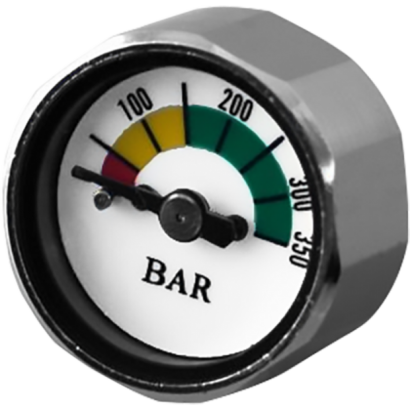

  • Mini Pressure Gauge.png

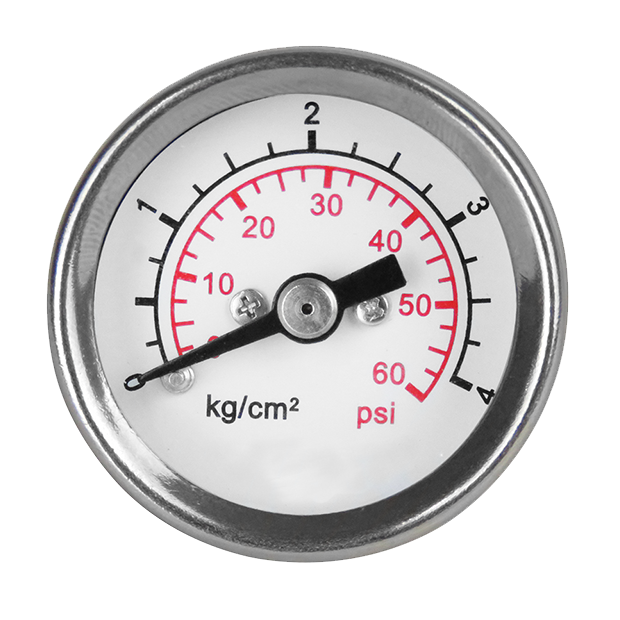

  • Mini Pressure Gauge.png
DETAIL
Mini Pressure Gauge (Bourdon Tube Type)
Model: SBG


Introduction
The mini pressure gauge is commonly applied in limited space with affordable price. It is suitable for liquid and gas pressure measurement that compatible with connection’s material.

Features
■ OEM service
■ Various case materials available (stainless steel, chrome-plated copper or reinforced plastic PP)
■ Bourdon tube is adopted to ensure high tolerance
■ Accuracy within ±4.0%F.S.

Main Specifications
▼Size
1”(25mm)/1”(25mm, hex case)/1.1”(28mm)/1.26”(32mm)
▼Installation type
Back mount (ADC)
▼Window
Glass
▼Pressure connection
Material: copper alloy/Chrome-plated copper
Thread size: 1/8”, 1/4”
Thread type: BSPT / NPT / PF
Other thread specification available upon request
▼Pressure range
0…2 to 28kg/cm(10psi available for Ø1.1”)
▼Applicable fluid
Liquid and gas that compatible with connection’s material
Note: Hex case type can only apply to measure air media
▼Ambient temperature
-20°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every 8°C
Max. error ±0.4% F.S
▼Protection level
IP43

Other Specifications
▼Ring
Stainless steel
▼Ring mount
Snap-in
▼Case
SS 304/Polypropylene (PP)/Chrome-plated copper
▼Pointer
Aluminum with black enamel
▼Dial
All black scale
165° / 180° / 190° / 215°
Scale, color, unit, can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Movements
Copper alloy
▼Accuracy
Within ±4.0%F.S. (Standard)
Within ±3.0%F.S. (Option)
▼Operation pressure
Stabilization 0.75* full scale
Impulse 1* full scale
