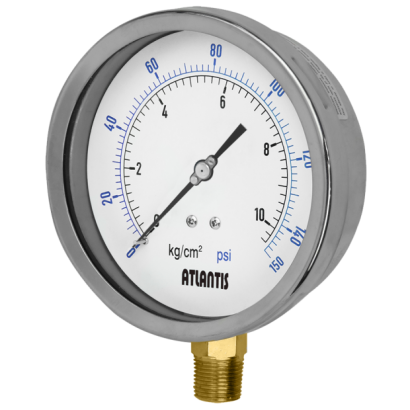

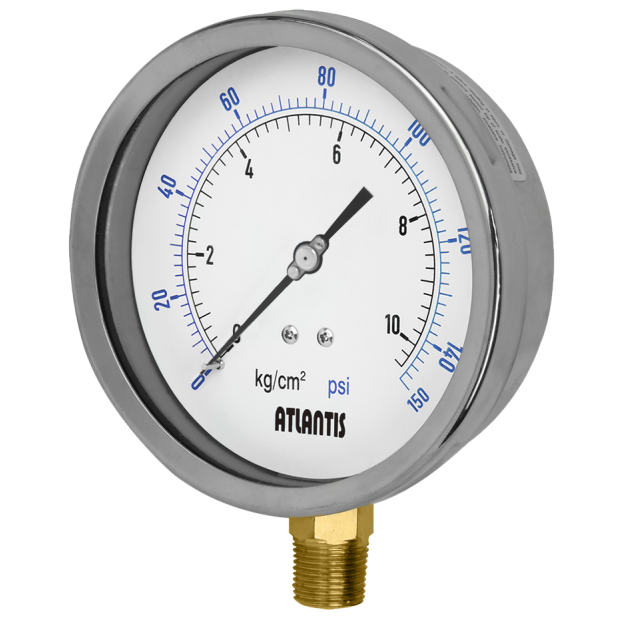

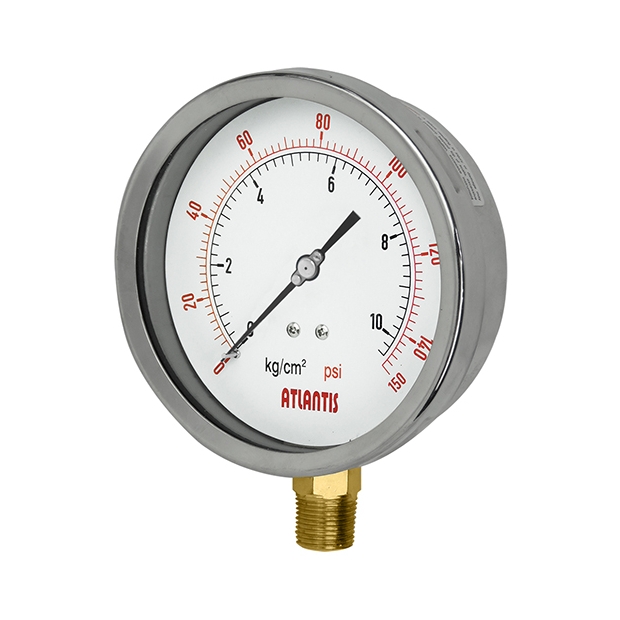

4”Stainless Steel Case Pressure Gauge With Zero Adjustment ZSC-4

4”Stainless Steel Case Pressure Gauge With Zero Adjustment ZSC-4

This 4”black steel case pressure gauge with zero adjustment is suitable for general engineering or other application that required field pointer calibration.
  • 4”Stainless Steel Case Pressure Gauge With Zero Adjustment.png
  • 4”Stainless Steel Case Pressure Gauge With Zero Adjustment.png
DETAIL
4”Stainless Steel Case Pressure Gauge With Zero Adjustment
Model: ZSC-4


Introduction
This 4”black steel case pressure gauge with zero adjustment is suitable for general engineering or other application that required field pointer calibration.

Features
■ OEM services
■ Stainless steel case design
■ Adjustable screw for field pointer calibration

Main Specifications
▼Size
4”
▼Installation type
Bottom mount (A)
▼Window
Tempered glass (standard)
Safety glass (option)
▼Pressure connection
Material: copper alloy
3/8”PT
Other thread types can be customized upon request
▼Pressure range
0…1 to 28bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every 12°C
max. error ±0.3% F.S
▼Protection level
IP54 (standard) / IP65 (option)

Other Specifications
▼Ring
Stainless steel
▼Ring mount
Outside bayonet
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
With adjustable screw
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
±2.5% (Option: ±1.6%)
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
