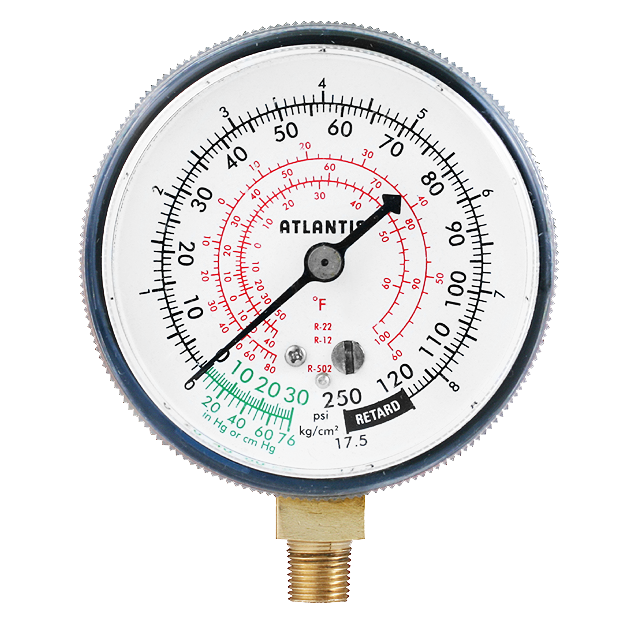

  • Stainless Steel Case Refrigeration Gauge.png

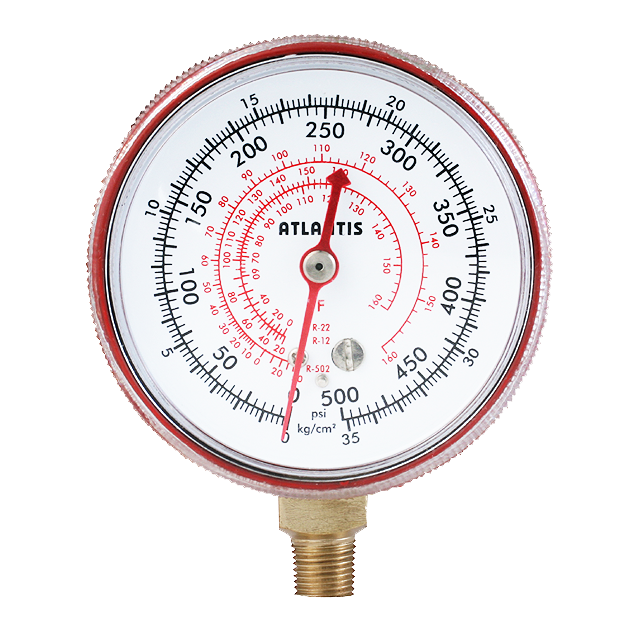

  • Stainless Steel Case Refrigeration Gauge.png

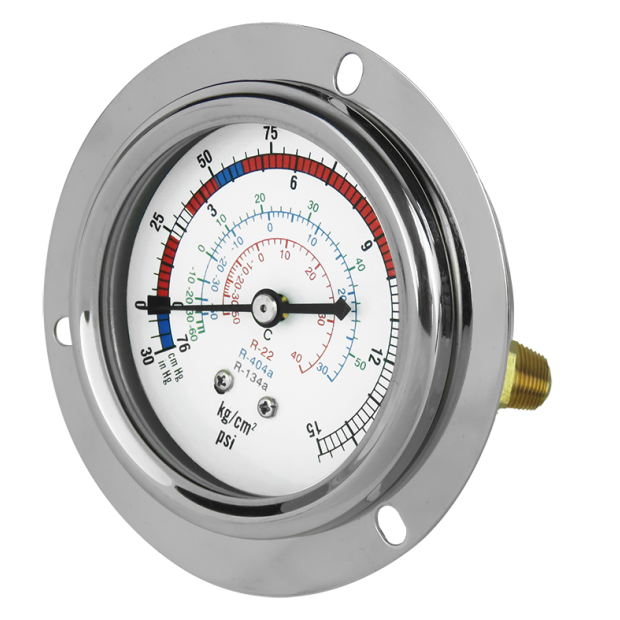

  • Stainless Steel Case Refrigeration Gauge.png
DETAIL
Stainless Steel Case Refrigeration Gauge
Model: F-SC


Introduction
F-SC mechanical refrigeration pressure gauge adopts special dial face with various  refrigerants application. It has widely applied in a variety of refrigeration systems pressure measurement, such as air conditioning, refrigerant filling equipment.

Features
■ OEM service
■ Stainless steel case design
■ Suitable for various refrigerant measurement - R12/R22/R404A/R410A/R502/R507/R134a
■ Special dial face for refrigeration gauge
■ Retard scale on dial face for low pressure gauge
■ Multiple choices of size and installation types
■ Liquid-filling type available for better protection

Main Specifications

▼Size
2.5”
▼Installation type
Bottom mount (A)/Back mount with flange (BDC)
▼Window
PC
▼Pressure connection
Material: copper alloy
Bottom mount: 1/8”NPT
Back mount: 7/16”UNF (1/4”SAE)
For other thread specifications please specify before order
▼Pressure range
Low pressure gauge▼
-76cmHg…0… 125 to 250 psi
-76cmHg…0… 250 to 500 psi
High pressure gauge▼
0 … 500psi to 800 psi
▼Applicable refrigerant
R12/R22/R502/R404A/R410A/R507/R134a
For other special refrigerant measurement demand please inform before ordering
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54

Other Specifications
▼Ring
Stainless steel
▼Ring mount
Crimp
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Special dial face for refrigeration gauge
Refrigerant-temperature corresponding scale
Pressure unit (custom): kg/cm2, psi, bar, kPa,
Temperature unit: ℃, ℉
With adjustable screw
▼Measuring elements
Bourdon tube
Material:
Bronze (high pressure)/Phosphor bronze (low pressure)
▼Movement
Copper alloy
▼Accuracy
±2.5%
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
