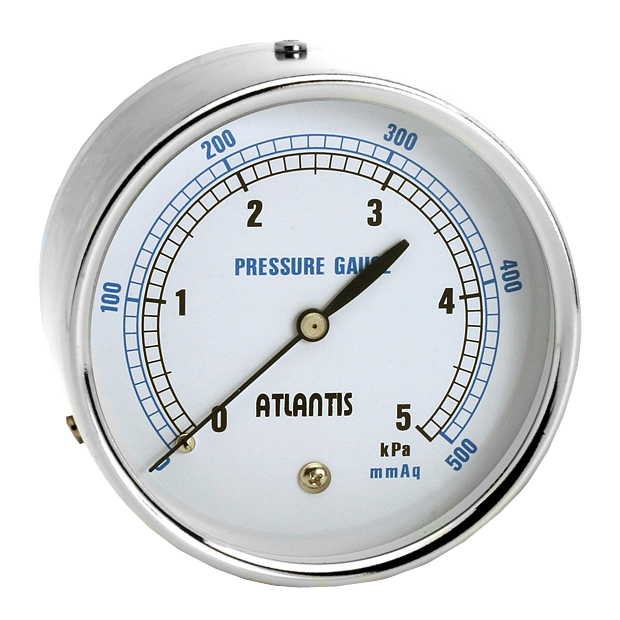

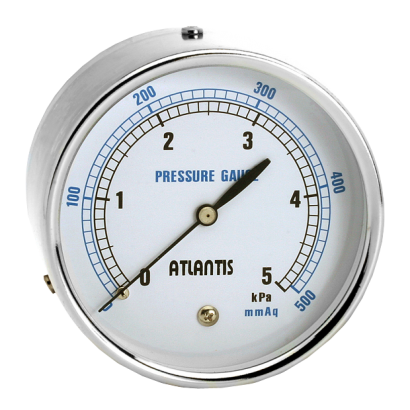

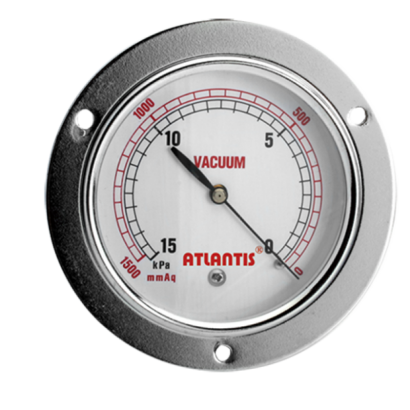

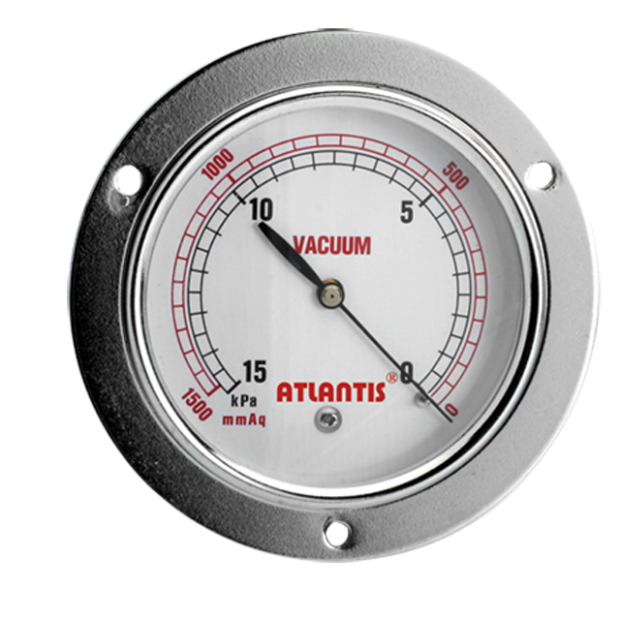

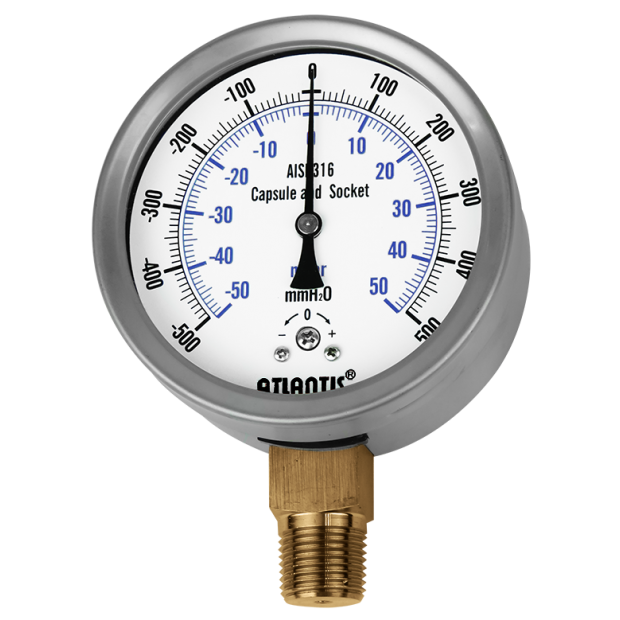

Stainless Steel Case Micro Pressure Gauge
Model: MP-SC


Introduction
MP Series pressure gauge is applicable to measure micro pressure of liquid and gas that compatible with copper alloy. Compared with the black steel case type, it has higher accuracy and better protection level.

Features
■ OEM service
■ Design for measuring micro pressure
■ Min. measurable pressure 160mmAq
■ Housing material adopts stainless steel

Main specifications
▼Size
2”, 2.5”, 3”, 4”, 6”
▼Installation type
Bottom mount (A) / Bottom mount with flange (B) / Back mount (ADC) / Back mount (eccentric thread) (ADE) / Back mount with flange (BDC) / Back mount with flange (eccentric thread) (BDE) /
Back mount with U-Clamp (Eccentric thread) (UDE) / Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
▼Window
PC/Glass
Option: safety glass (Only available for size > 4”)
▼Pressure connection
Material: copper alloy
Thread size: 1/8”, 1/4”, 3/8”,1/2”
Thread type: BSPT, NPT, PF
Other thread specifications please specify before order
▼Pressure range
Gauge pressure▼
2”/2.5”/3”: 0…300 to 6000mmAq
4”/6”: 0…160 to 6000 mmAq
Negative pressure▼
-6000….0 mmAq
Compound pressure▼
2”/2.5/3”: ±150 to ±3000mmAq
4”/6”: ±80 to ±3000mmAq
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
-20 C to +60°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP 54

Other Specifications
▼Ring material
Stainless steel
▼Ring mount
Inside bayonet / Snap-in / Screw fixed
▼Case
Material: SS304
With air outlet
▼Pointer
Aluminum with black enamel
▼Dial face
Blue & black scale
Adjustable screw on dial face
Pressure unit, scale & color can be customized upon request
Micro pressure unit: kPa, mbar, mmH2O, mmAq, mmWC, inH2O
▼Measuring elements
Capsule
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
2”, 2.5”, 3”, 4”: 3%
6”: 2%
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
