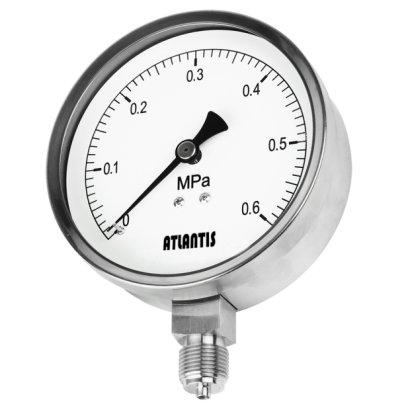

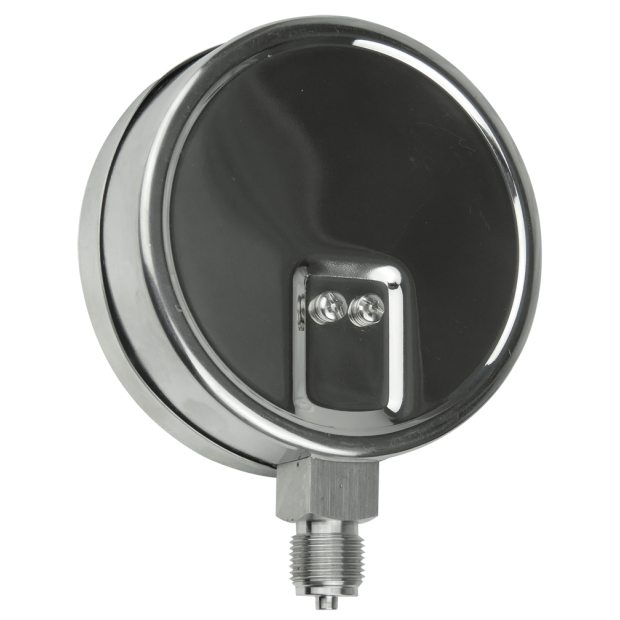

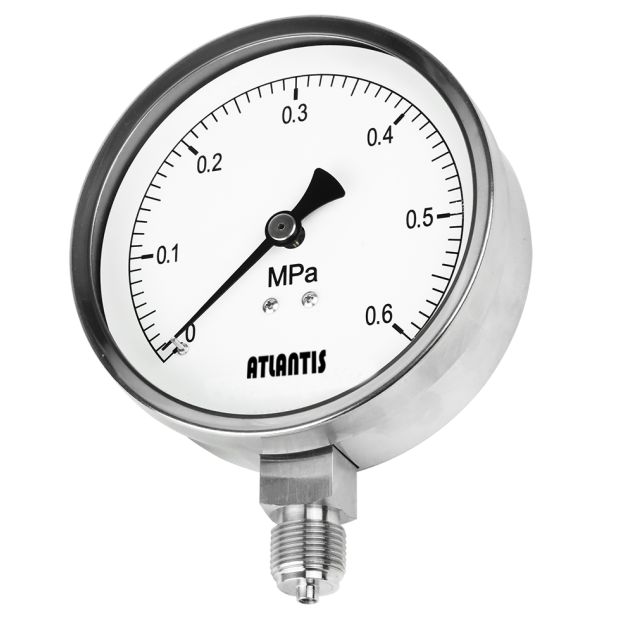

All Stainless Steel Steam Pressure Gauge SPG-SUS

All Stainless Steel Steam Pressure Gauge SPG-SUS

SPG-SUS All stainless steel pressure gauge is suitable for measuring the steam pressure in the boiler or water tank, can accurately measure the boiler or tank vapor pressure value.
  • All Stainless Steel Steam Pressure Gauge.png
  • All Stainless Steel Steam Pressure Gauge.png
DETAIL
All Stainless Steel Steam Pressure Gauge
Model: SPG-SUS


Introduction
SPG-SUS All stainless steel pressure gauge is suitable for measuring the steam pressure in the boiler or water tank, can accurately measure the boiler or tank vapor pressure value.

Features
■ Specially design for steam pressure measurement
■ Dry pressure gauge, max media temp. 180℃
■ Snap-in bezel, non-hermetic case
■ Adopts SS 316 as material of Bourdon tube and connection
■ Accuracy≤1.6%

Main Specifications
▼Size
4”
▼Installation type
Bottom mount/Back mount
▼Window
Glass
▼Pressure connection
Material: SS316
G3/8”male thread
Thread nipple outer dia. Ø5mm
1/2”BSPT
1/2”NPT male thread
R1/8”male thread
Integrated structure
TIG welding
▼Pressure range
-1…0 to 1000bar
▼Applicable media
Liquid and gas that compatible with SS304
▼Liquid-filling
Dry pressure gauge
No oil-filling
▼Ambient temperature
-20°C to +60°C
▼Media temperature
Max. 180°C

Other Specifications
▼Case
SS304
Snap-in bezel
Non-hermetic case
▼Pointer
Aluminum with black enamel
▼Dial face
White dial with all black scale
Pressure unit, scale, color, etc. can be customized upon request
▼Measuring elements
Bourdon tube
Material: SS316L
▼Movement
Copper alloy
▼Accuracy
≤1.6%
▼Operating pressure
0.75* full scale (recommended)
