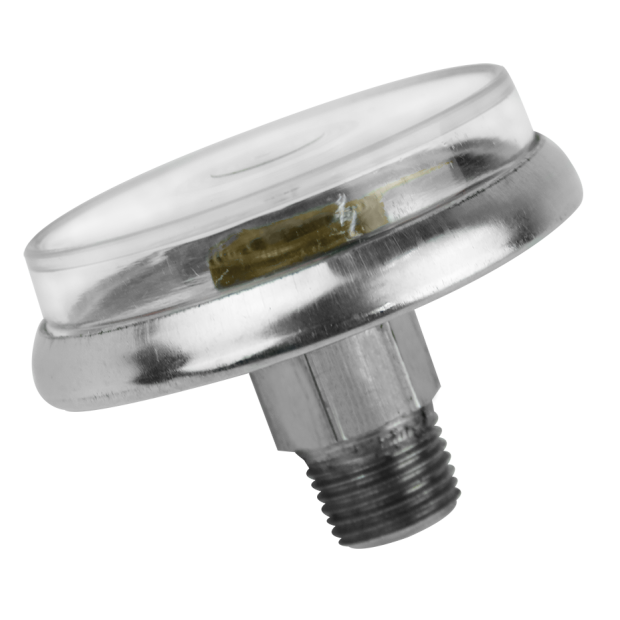

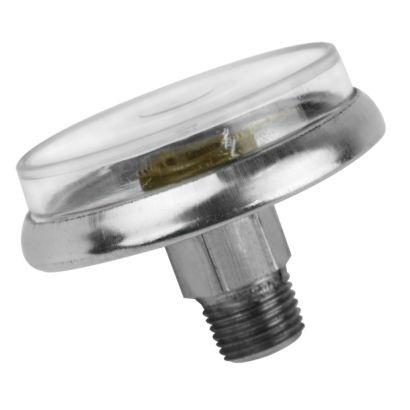

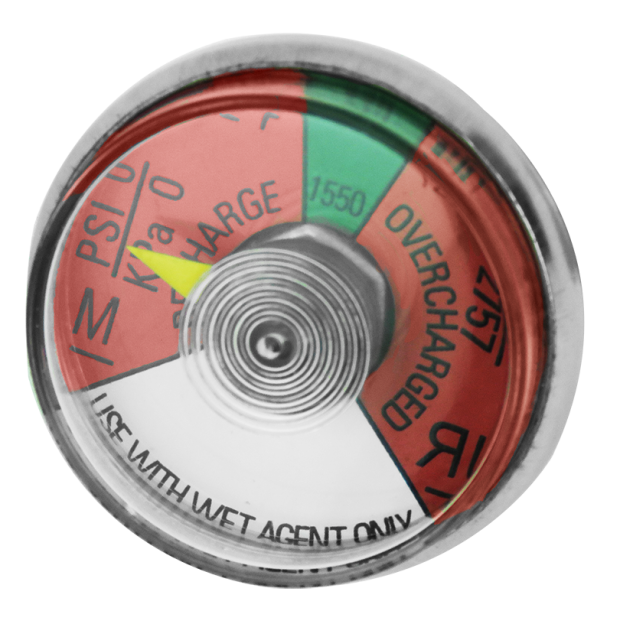

Mini Pressure Gauge (Spiral Tube Type)
Model: SSG


Introduction
The mini pressure gauge is commonly applied in limited space with affordable price. It is suitable for liquid and gas pressure measurement that compatible with connection’s material.

Features
■ OEM service
■ Various case materials available (stainless steel, chrome-plated copper or reinforced plastic PP)
■ Spiral tube is adopted for general measurement requirement with affordable price


Main Specifications
▼Size
1”(25mm)/1.24”(31mm)/1.37”(35mm)
▼Installation type
Back mount (ADC)
▼Window
PC
▼Pressure connection
Material: copper alloy/chrome coated copper
Thread size: 1/8”, 1/4”
Thread type: BSPT / NPT / PF
Other thread specification available upon request
▼Pressure range
0…2 to 28kg/cm2
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Ambient temperature
-20°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Standard: 20℃
Every ±8℃
max. error: ±0.5% F.S
▼Protection level
IP43

Other Specifications
▼Ring
Stainless steel / PC
▼Ring mount
Snap-in
▼Case
SS 304/Polypropylene (PP)/Chrome-plated copper
▼Pointer
Aluminum with black enamel
▼Dial face
All black scale
Angle: 60° / 120° / 165° Scale, color, unit, can be customized upon request
▼Measuring elements
Spiral tube
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
±5.0%F.S./±4.0%F.S.
▼Operating pressure
Stabilization: 0.75* full scale
Impulse: 0.9* full scale
