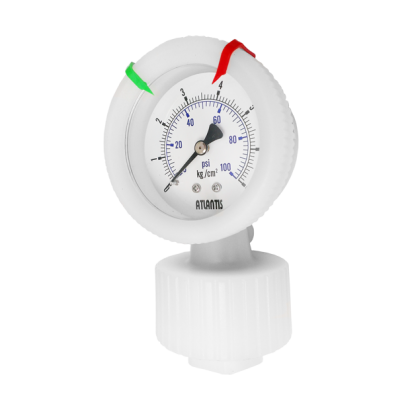

Integrated Diaphragm Pressure Gauge (PVDF Case Type) DSPLA

Integrated Diaphragm Pressure Gauge (PVDF Case Type) DSPLA

DSPLA diaphragm pressure gauge with integrated design, combined pressure gauge and diaphragm seal in one structure.
DSPLA adopts PVDF case, which is suitable for low corrosive, crystalized and viscous media measurement.
DETAIL
Integrated Diaphragm Pressure Gauge (PVDF Case Type)
Model: DSPLA

Introduction

DSPLA diaphragm pressure gauge with integrated design, combined pressure gauge and diaphragm seal in one structure. DSPLA adopts PVDF case, which is suitable for low corrosive, crystalized and viscous media measurement.

Features

■ OEM service
■ Integrated design, rigid structure
■ Diaphragm seal and pressure gauge case adopts all PVDF material
■ Strong acid and alkaline resistance performance
■ Apply to low corrosive, crystalized and viscous media pressure measurement

Main Specifications
▼Dial diameter
2.5”(65mm)
▼Installation type
Bottom mount
▼Window
Glass
With rubber O-ring sealed
▼Thread size
1/2”, 1/4”
▼Thread type
BSPT, NPT
Male / Female thread
▼Pressure range
Min.: 0-10kg/cm2<standard>
Max.: 20kg/cm2 <option>
Pressure unit is selectable
▼Ambient temperature
-20°C to 60°C
▼Fluid temperature
+60°C
▼Heat deflection temperature
+150°C
▼Oil-filling
No oil filling / Glycerin
▼Applicable fluid
Liquid and gas that compatible with connection's material
Low corrosive, crystallized, and viscous media
▼Protection level
IP54

Other Specifications
▼Structure
Integrated design (Pressure gauge and diaphragm seal in one structure)
▼Ring (pressure gauge)
PVDF
▼Case (pressure gauge)
PVDF
▼Case (Diaphragm seal)
PVDF
▼Measuring elements
(Pressure gauge)
Bourdon tube
Material: copper
▼Measuring elements
(Diaphragm seal)
Diaphragm
Material: PVDF
▼Dial face
Black scale on whiteboard
Dial arc: 270°
▼Pointer
Aluminum with black enamel
▼Indicator
Clamp on bezel
Material: ABS
▼Movement
Stainless steel
▼Accuracy
±1.5%
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
