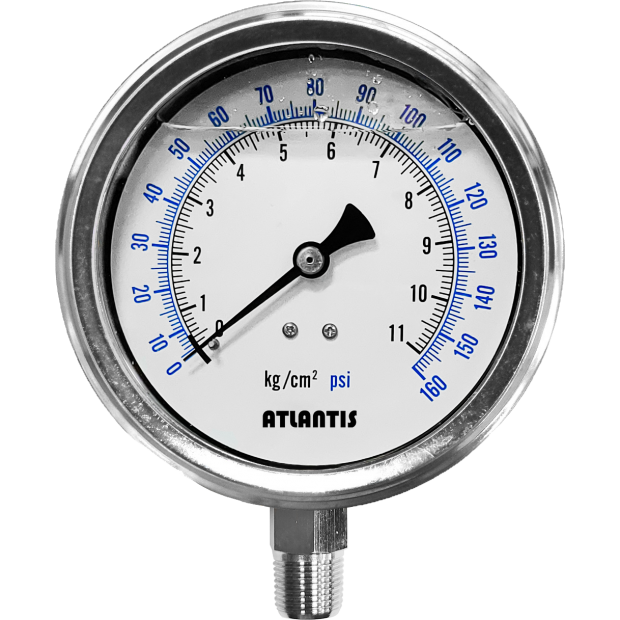

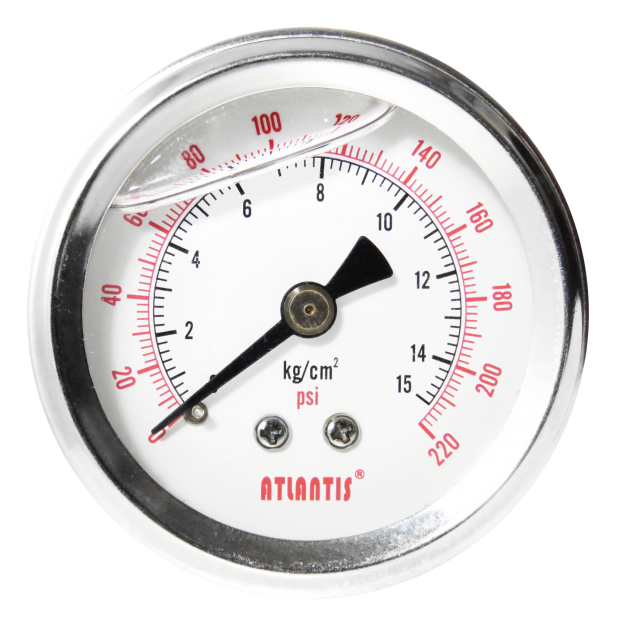

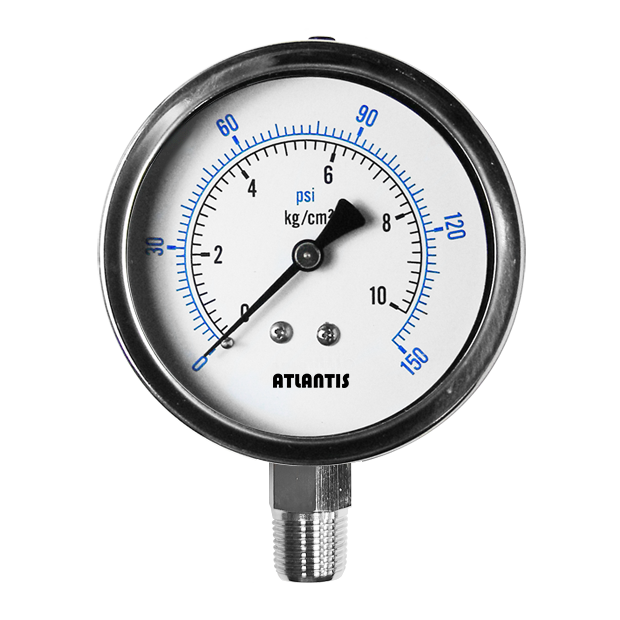

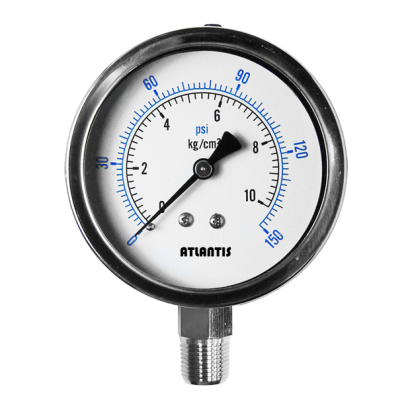

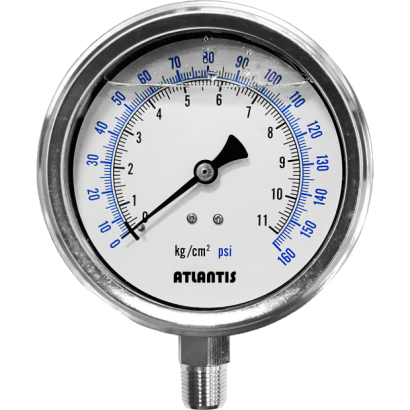

Stainless Steel Case Pressure Gauge
Model: SC


Introduction
SC pressure gauge has various size and installation type for selection, which is suitable for measuring slight corrosive media that compatible with copper alloy. Particularly used in hydraulics, compressors, general mechanical engineering, pumps, water treatment plants.

Features
■ OEM service
■ Stainless steel case pressure gauge for general application
■ Various installation and thread type available for different application
■ Filled with liquid to improve vibration-proof performance and service life (option)


Main specifications
▼Size
1.5”, 2”, 2.5”, 3”, 4”, 6”
▼Installation type
Bottom mount (A) / Bottom mount with flange(B) / Back mount (Centric thread) (ADC) / Back mount (Eccentric thread) (ADE) / Back mount with flange (Centric thread) (BDC)/Back mount with flange (Eccentric thread) (BDE) / Back mount with U-Clamp (Centric thread) (UDC)/Back mount with U-Clamp (Eccentric thread) (UDE)/Back mount with flange and U-Clamp (Centric thread) (UBDC) /
Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
▼Window
PC/Glass
Option: safety glass
▼Pressure connection
Material: copper plating
Thread size: 1/8”, 1/4”, 3/8”, 1/2”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar
Negative pressure▼
-1…0bar/-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
Dry
-40°C to +60°C
Glycerin-filled
-20°C to +60°C
Silicone oil-filled
-40°C to +60°C
▼Media temperature
Dry
+60°C
Glycerin
+60°C
+180°C is available made-toorder
▼Temperature drift
Every 12°C
max. error: ±0.3% F.S
▼Protection level
IP54 (std.) / IP65 (option)

Other specifications
▼Ring material
Stainless steel
▼Ring mount
Crimp/Bayonet/Snap-in
▼Case material
SS 304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Other pressure unit, scale & color available upon request
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Design protection (option)
Blow out disk
▼Movement
Copper alloy
▼Accuracy
±2.0% F.S. for Φ1.5”& 2”
±1.5% F.S. for Φ2.5”~ 6”
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
Customized dial face (scale, color, unit, etc.)
Install a diaphragm seal
Dampened movement
Window-Safety glass (Only available for size > 4”)
Peak hold pointer
Coating
External indicator (red, green, yellow)
Thread - chrome plated
Knife edge pointer
Adjustable pointer (Only available for size > 4”)
Install a blow out back
High accuracy type
