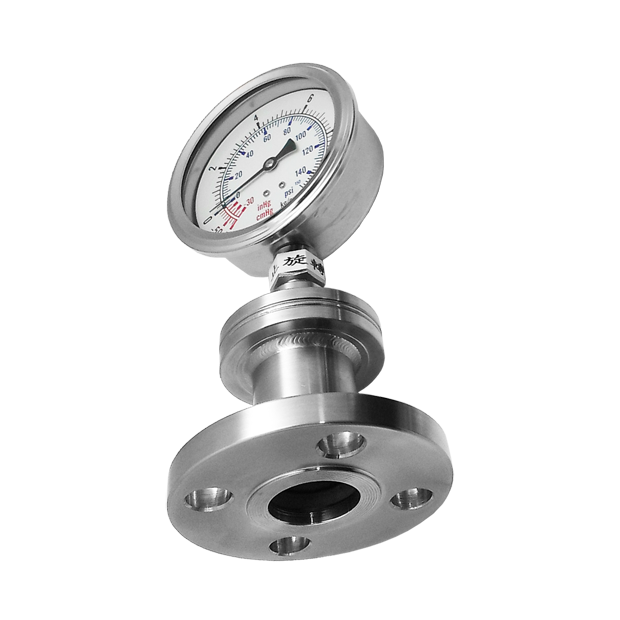

DS200-GP(W) All-Welded Diaphragm Seal (IType)
DS200-GP(W) All-Welded Diaphragm Seal (IType)
Features
■ OEM service
■ Designed for applications requiring media isolation
■ Fully welded flange construction
■ Flange standard, pressure rating, and dimensions available upon request
■ OEM service
■ Designed for applications requiring media isolation
■ Fully welded flange construction
■ Flange standard, pressure rating, and dimensions available upon request
DETAIL
Model: DS200-GP(W)
Features
■ OEM service
■ Designed for applications requiring media isolation
■ Fully welded flange construction
■ Flange standard, pressure rating, and dimensions available upon request
Main Specifications
▼Structure
All-Welded Design
I-Type Flange
▼Internal Filling
Glycerin or Silicone Oil (depending on operating temperature)
▼Gasket
Rubber
▼Flange Standards
JIS (Japanese Standard)
ANSI (American Standard)
DIN (German Standard)
▼Pressure Range
Min.: 1 bar
Max.: 60 bar
▼Ambient Temperature
10°C to 60°C
▼Fluid Temperature
+80°C
▼Protection Rating
IP68
