Digital Pressure Gauge

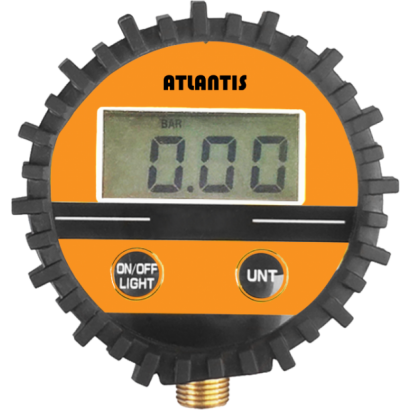

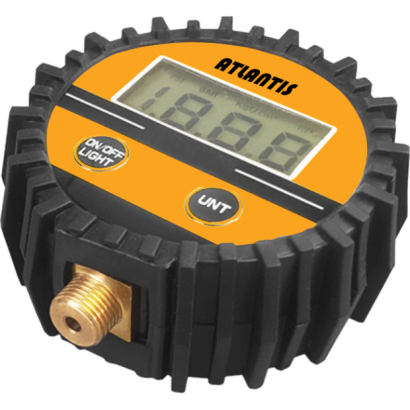

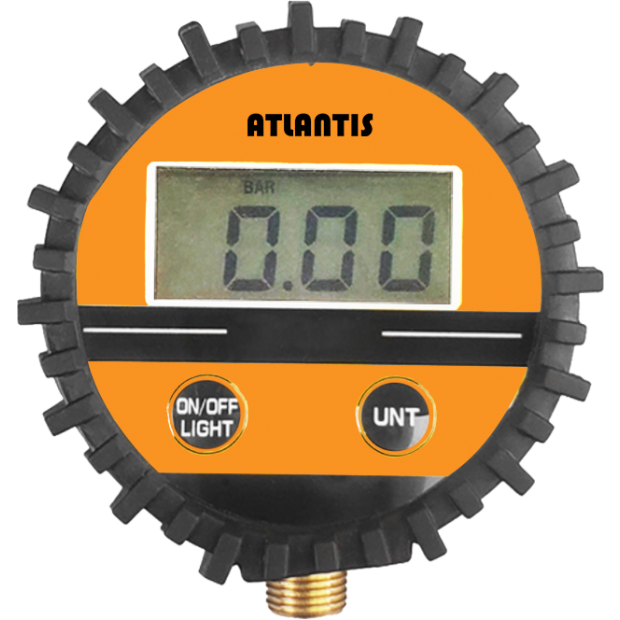

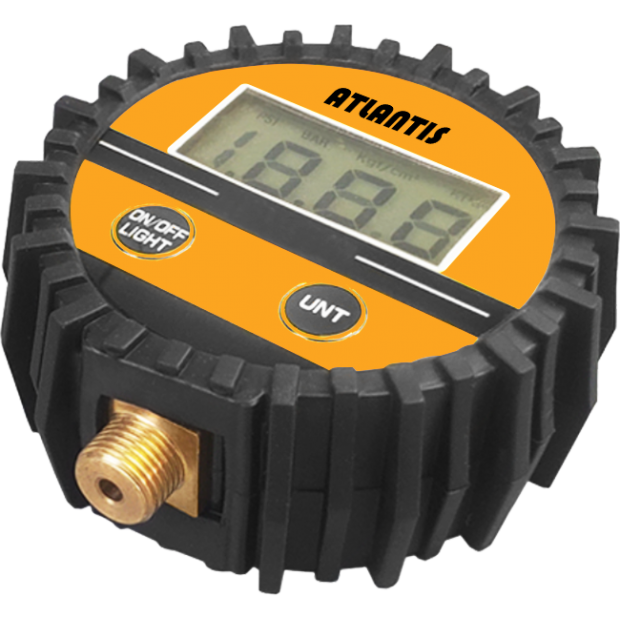

Digital pressure gauge DPG-X162
Digital pressure gauge DPG-X162
The DPG-X162 is a digital pressure gauge that can accurately display pressure in real time. It features low power consumption and long-term stability. The product uses a copper alloy connector and a plastic casing, providing good shock resistance. It can measure gas media that do not corrode copper alloy and is suitable for measurement fields such as pressure vessels and tire inspection.
DETAIL
Model: DPG-X162
Introduction
The DPG-X162 is a digital pressure gauge that can accurately display pressure in real time. It features low power consumption and long-term stability. The product uses a copper alloy connector and a plastic casing, providing good shock resistance. It can measure gas media that do not corrode copper alloy and is suitable for measurement fields such as pressure vessels and tire inspection.
Features
■ OEM Service
■ LCD display with backlight
■ Multiple functions including pressure unit switching, backlight, auto power-off, etc.
■ Low power consumption design, battery life over 12 months
■ Lightweight product, simple operation, easy installation
Main Specifications
▼Size
2.5”
▼Pressure connection
Material: Copper Alloy
M20*1.5
G1/2”
G1/4”
1/2”NPT
1/4”NPT
Other specifications available upon request
▼Pressure range
0~100…150…200…255 psi
▼Applicable Media
Liquid and gas that compatible with copper alloy
▼Operating Temperature
-10~60℃
Other Specifications
▼Case Materia
Engineering Plastic
▼Display
LCD Display
Blue Backlight
▼Display Size
38 mm*16.5 mm
▼Pressure Units
kPa, psi, kgf/cm2, bar
▼Power Supply
3 VDC (2 × AAA Batteries)
▼Accuracy
±1.0％F.S.
▼Long-Term Stability
±0.5％F.S./year
▼Overpressure Limit
150％
▼Weight
90g (without batteries)
114g (with batteries)
