Digital Pressure Gauge

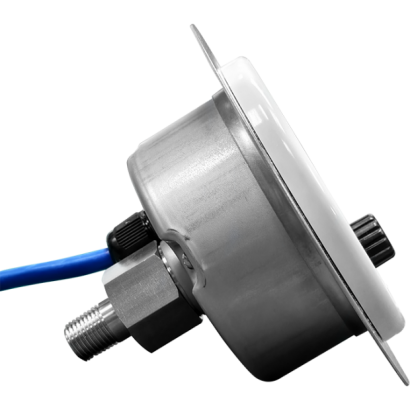

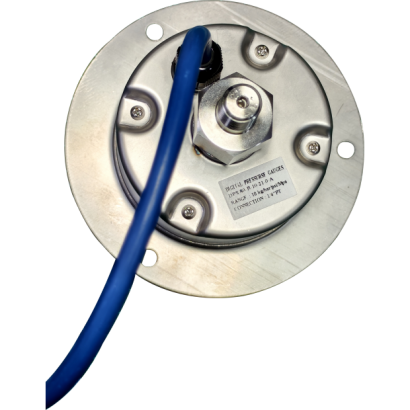

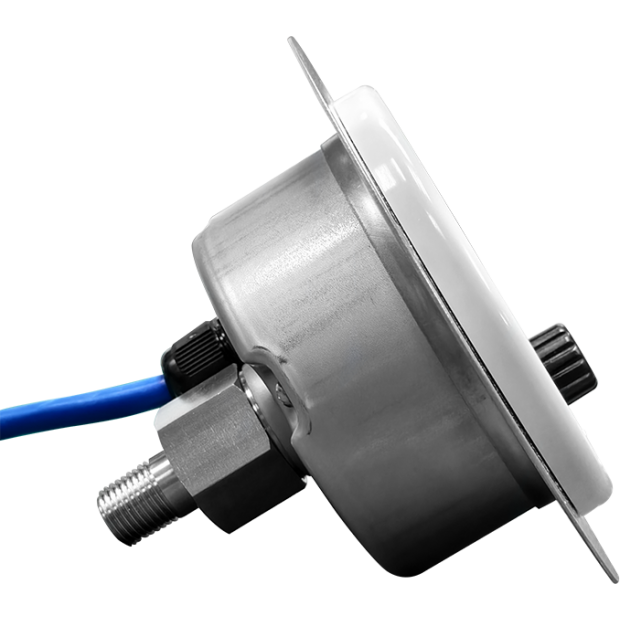

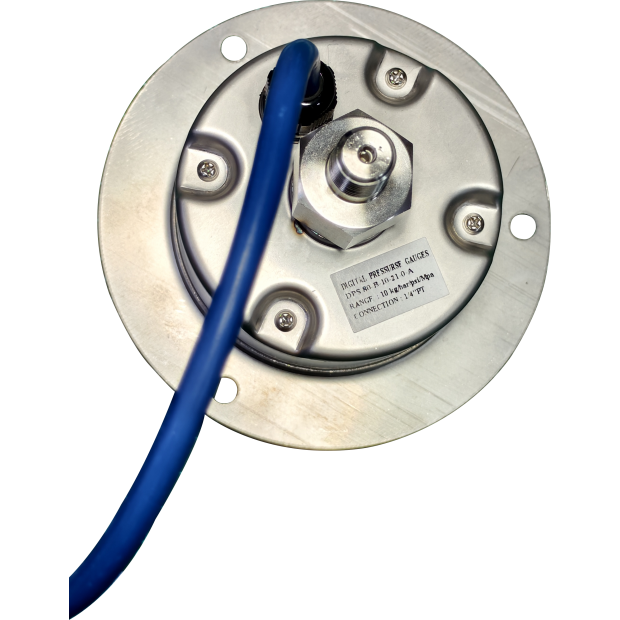

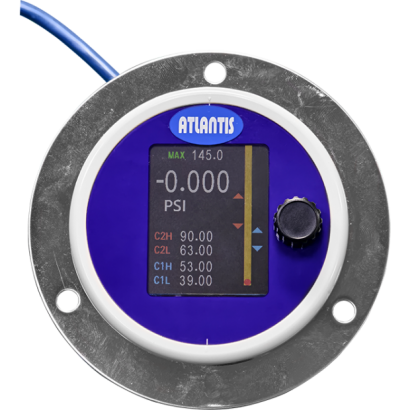

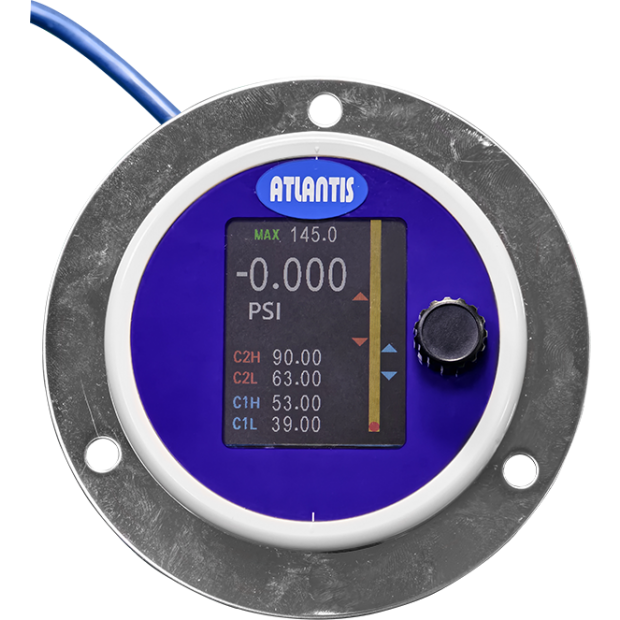

Digital Pressure Switch DPS-919
Digital Pressure Switch DPS-919
■ OEM service
■ Large-size LCD screen
■ Wide operating voltage range
■ Two output options
■ Allows 20% overvoltage
■ Large-size LCD screen
■ Wide operating voltage range
■ Two output options
■ Allows 20% overvoltage
DETAIL
Model: DPS-919
Features
■ OEM service
■ Large-size LCD screen
■ Wide operating voltage range
■ Two output options
■ Allows 20% overvoltage
Main Specifications
▼Size
3.5”(92mm)
▼Installation types
Bottom mount , Back mount
▼Pressure connection
Material: Stainless Steel 316L
1/4”, 1/2”
PT, NPT, PF
▼Pressure Range
Please refer to the pressure range table
▼Addlicable Fluid
Non-corrosive gases or liquids compatible with the connecting parts
▼Operation Temperature
-20℃~85℃
▼Protect level
IP65
Other Specifications
▼Ring
Stainless Steel 304
▼Display
50mm*14mm
4-digit LCD
Backlight display
▼Pressure unit
psi , bar, MPa, kg/cm2
▼Output Options
Relay output, Transistor output
▼Power Supply
Lithium battery
External power supply DC 3.7V~5V
▼Accuracy
±0.4%F.S. (Standard)
±0.2%F.S. (Options)
With temperature compensation
