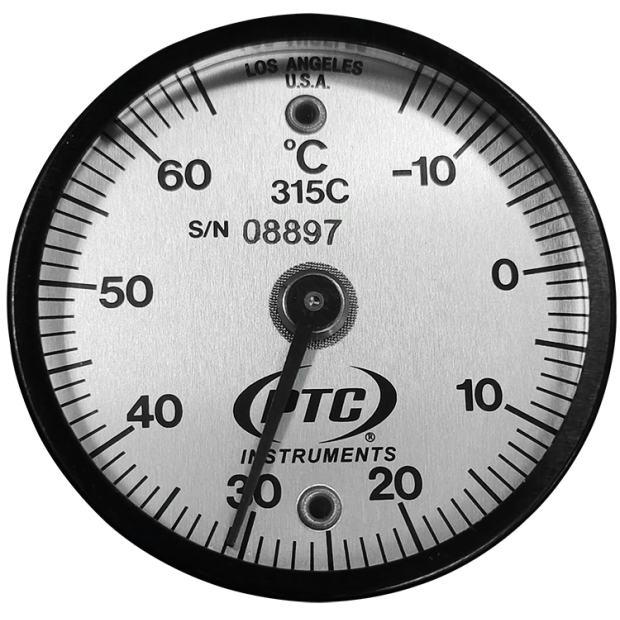

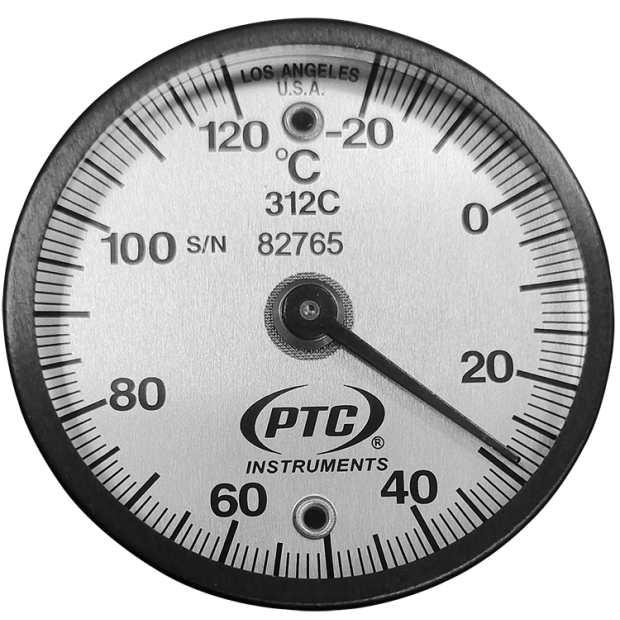

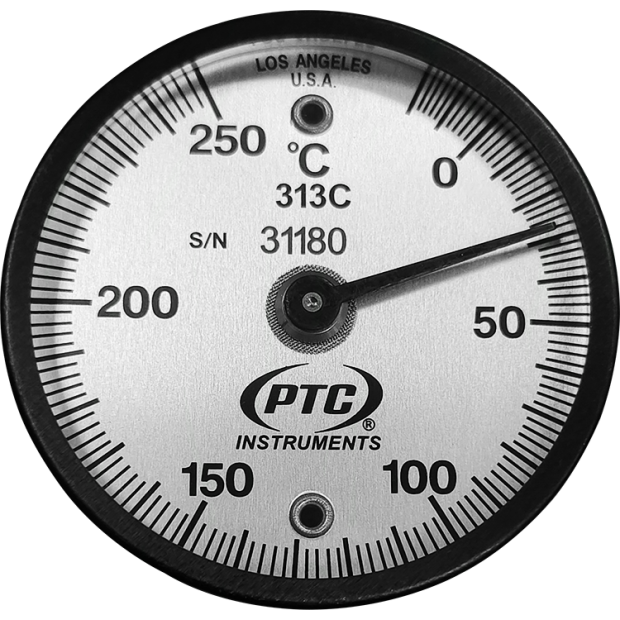

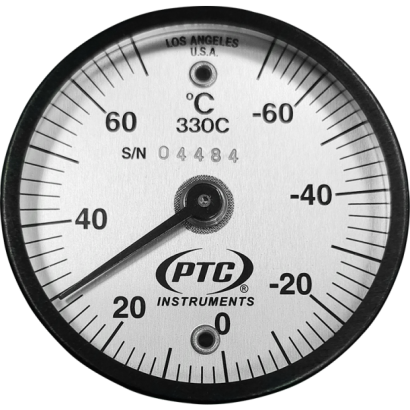

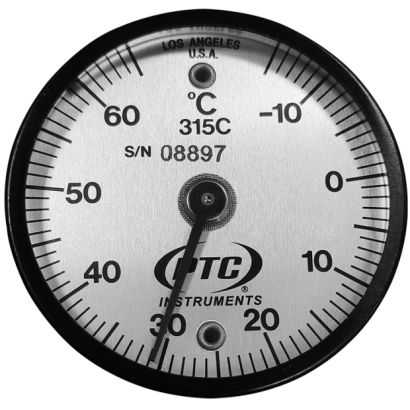

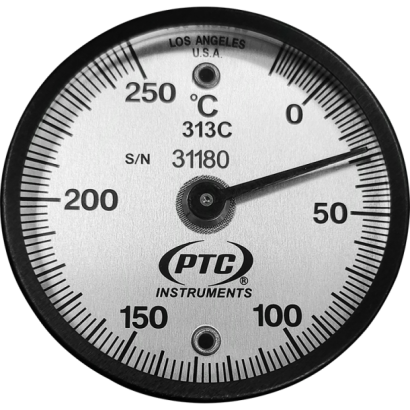

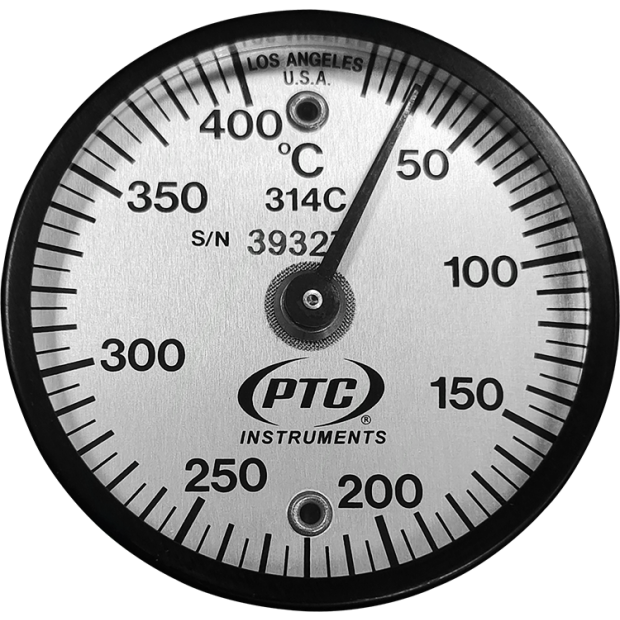

Magnetic Surface Thermometer MST-52 Series

Magnetic Surface Thermometer MST-52 Series

American original imported PTC magnetic surface thermometer, designed based on thermodynamics, used for measuring surface temperature.
  • Magnetic Surface Thermometer
  • Magnetic Surface Thermometer
  • Magnetic Surface Thermometer
  • Magnetic Surface Thermometer
  • Magnetic Surface Thermometer
  • Magnetic Surface Thermometer
DETAIL

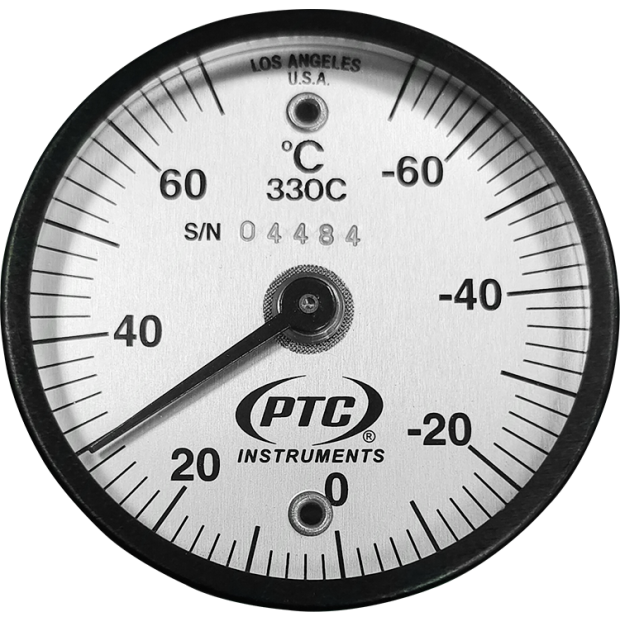

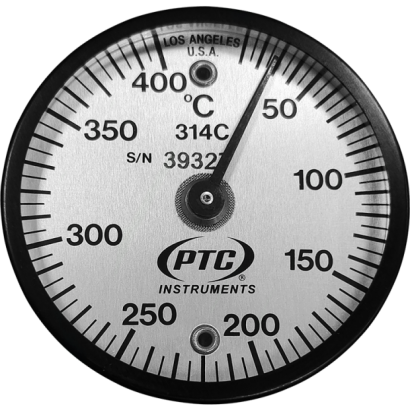

Magnetic Surface Thermometer
Model: MST-52 Series

Introduction

American original imported PTC magnetic surface thermometer, designed based on thermodynamics, used for measuring surface temperature.

Features
■ Original imported brand from PTC in the United States
■ Installation using magnetic attracion
■ Independent calibration

Main Specifications
▼Size
2”(52mm)
▼Window
Regular glass
▼Temperature Range
Min. -70℃
Max 400℃
Please fefer to the temperature range table
▼Installation Method
Magnetic adsorption, back connection
▼Applicable Places
Surfaces that can be magnetically attached

Other Specifications
▼Case
Stainless Steel
▼Pointer
Aluminum with black paint
▼Dial
Aluminum dial

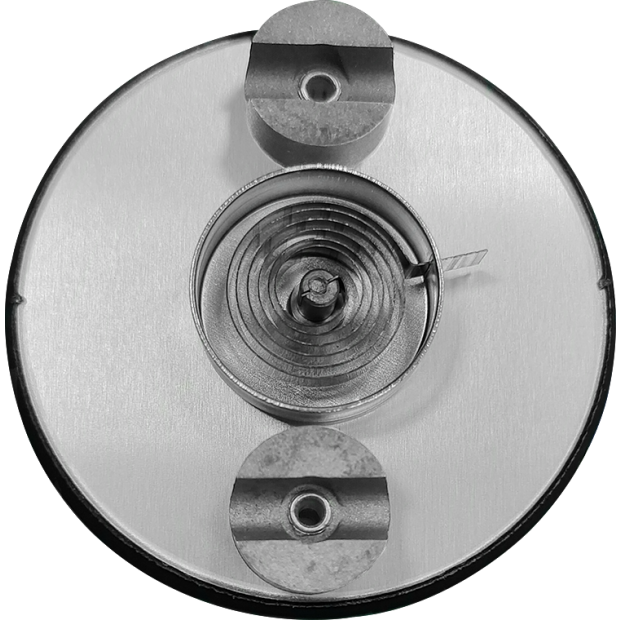

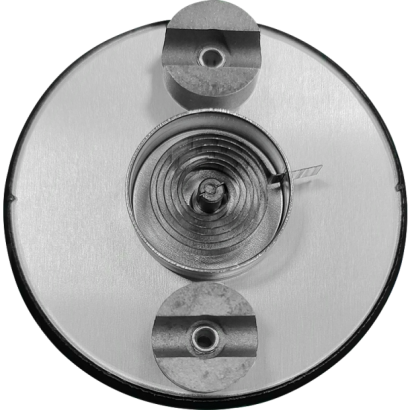

▼Measuring elements
Dual metal spiral spring
▼Number of Magnets
2 pieces
▼Accuracy
±2.0%F.S.
▼Weight
43g
