Pressure Regulator R 3000/4000/5000

Pressure Regulator R 3000/4000/5000

Adjustable pressure regulators are suitable for pneumatic gas line regulation to maintain the twice setting outlet pressure.
  • Pressure Regulator
  • Pressure Regulator
DETAIL

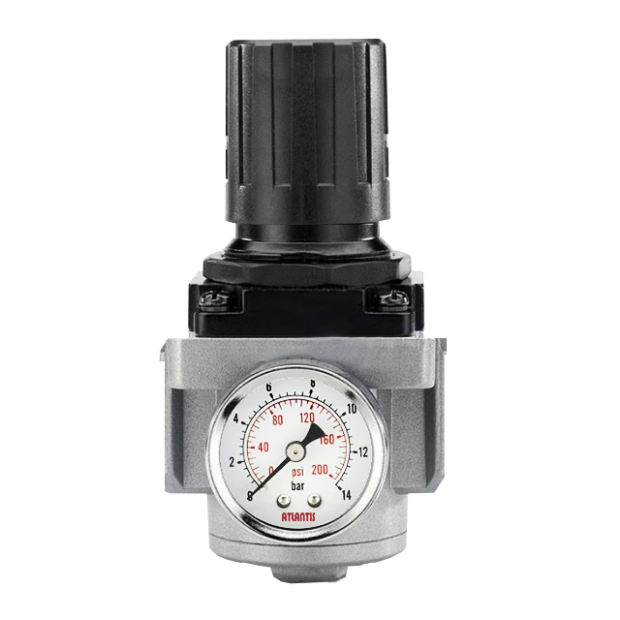

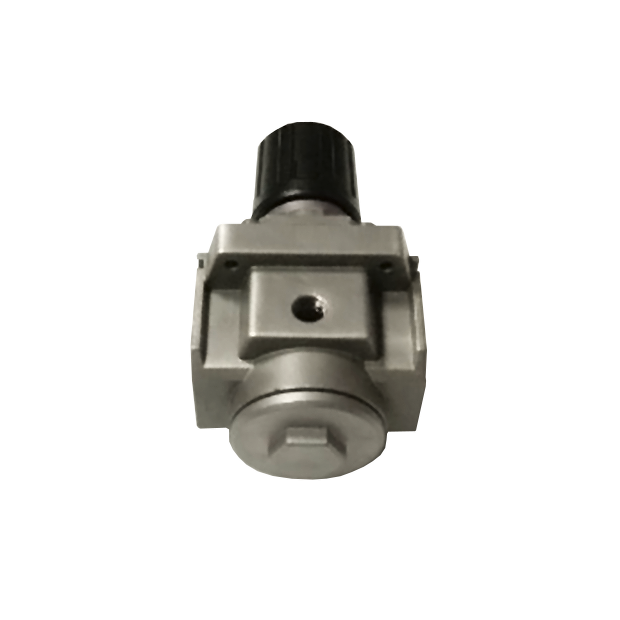

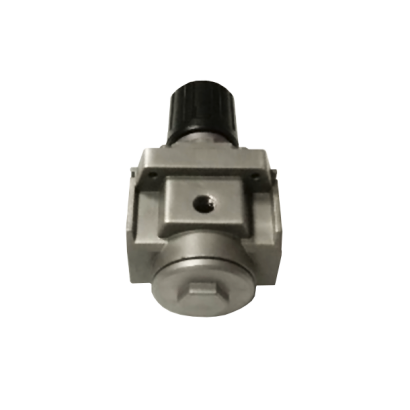

Pressure Regulator
Model: R 3000/4000/5000

Introduction

Adjustable pressure regulators are suitable for pneumatic gas line regulation to maintain the twice setting outlet pressure.

Features
■ Single regulator unit
■ Body material SUS 316 available
■ Attached with a mounting bracket
■ Regulators come with a pressure gauge and protective cover
■ With overflow function (option)
■ Outsourcing parts were selected and tested very strictly to ensure its quality

Main specifications
▼Dimension
R 3000: 53 x 127.5 mm
R 4000: 70 x 149.5 mm
R 5000: 90 x 178 mm
▼Pipe connection
R 3000: 1/4”, 3/8”
R 4000: 3/8”, 1/2”, 3/4”
R 5000: 3/4”, 1”
Specification: G, NPT, PT
▼Gauge connection
R 3000: 1/8”PT
R 4000: 1/4”PT
R 5000: 1/4”PT
▼Adjustable pressure range
0.05 to 0.85MPa
▼Operating temperature
-5 to 60℃
▼Applicable media
Gas that compatible with aluminum alloy or SUS 316

Other Specifications
▼Body material
Aluminum die casting / SUS 316
▼Bonnet material
Polyacetal with black painting
▼Diaphragm & O-ring material
NBR
▼Max operating pressure
1MPa
▼Ensured pressure resistance
1.5MPa
▼Filtering element roughness
20u
