Single / Dual Input Digital Handheld Thermometer DHT-SD series

Single / Dual Input Digital Handheld Thermometer DHT-SD series

DHT-SD series single / dual input digital handheld thermometer has a variety of thermocouples to choose from and features wide temperature measurement ranges. For 83D and 84D, the data logging function reads up to 14,000 records. It is suitable for various industrial environments.
DETAIL

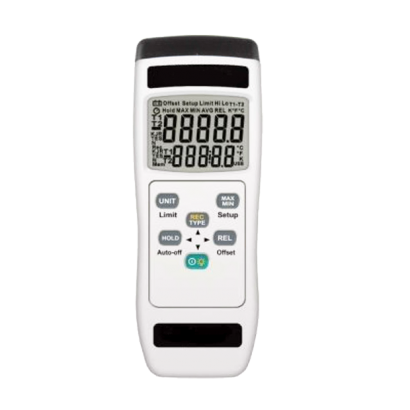

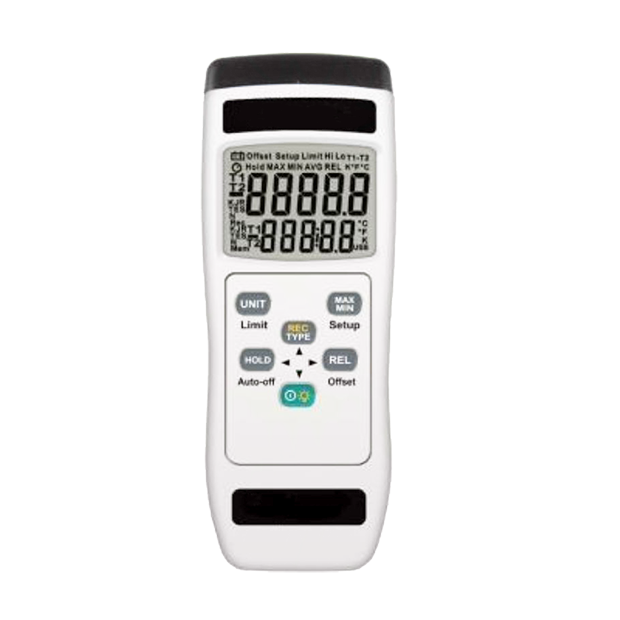

Single / Dual Input Digital Handheld Thermometer
Model: DHT-SD series

Introduction

DHT-SD series single / dual input digital handheld thermometer has a variety of thermocouples to  choose from and features wide temperature measurement ranges. For 83D and 84D, the data logging  function reads up to 14,000 records. It is suitable for various industrial environments.

Features
■ Seven thermocouple type available: K / J / T / E / R / S / N
■ 5-digit LCD screen dual display with backlight (Max. reading display: 9999.9)
■ Max. / Min. / AVG / Time and data storage function
■ Over-temperature alarm function
■ Enabling and disabling auto power-off function
■ Can store 300 reading records manually (For 83/84 type)
■ Switchable display T1, T2, or T1-T2 (For 84 / 84D type)
■ Data logging memory reading up to 14,000 records (For 83D / 84D type)
■ USB / PC serial interface: Windows XP, 7~10 (For 83D / 84D type)

Main Specifications
▼Thermometer type
Single input: 83 / 83D (with data logger)
Dual input: 84 / 84D (with data logger)
▼Thermocouple type
K / J / T / E / R / S / N type
▼Temperature range
K type: -200~1372℃ / -328~2501℉
J type: -210~1200℃ / -346~2192℉
T type: -250~400℃ / -418~752℉
E type: -200~1000℃ / -346~1832℉
R / S type: 0~1767℃ / 32~3212℉
N type: -150~1300℃ / -238~2372℉

Other Specifications
▼Size
155*56*40mm (L*W*H)
▼Screen display
5-digit LCD screen dual display with backlight
Max. reading: 9999.9
▼Temperature unit
°C / °F / K
▼Min. measurable temperature value
K / J / T / E / N type: 0.1℃
R / S type: 1℃
▼Accuracy
K / J / E / T / N type: ±(0.05%rdg+0.7℃/1.4℉) (-250~100℃ / -418~148℉)
±(0.05%rdg+0.6℃/1℉) (-100~1372℃ / -148~2501℉)
R / S type: ±(0.05%rdg+2℃/4℉) (0~1767℃ / 32~3212℉)
▼Weight
Appx. 200g
