Thermometer gauge

Small Remote Reading Thermometer FT-M

Small Remote Reading Thermometer FT-M

FT-M Small remote reading thermometer applicable to measure temperature of dry machine, food, refrigeration and air conditioning, and environmental oil-water separation equipment.
  • Small Remote Reading Thermometer.png
  • Small Remote Reading Thermometer.png
  • Small Remote Reading Thermometer.png
  • Small Remote Reading Thermometer.png
  • Small Remote Reading Thermometer.png
DETAIL

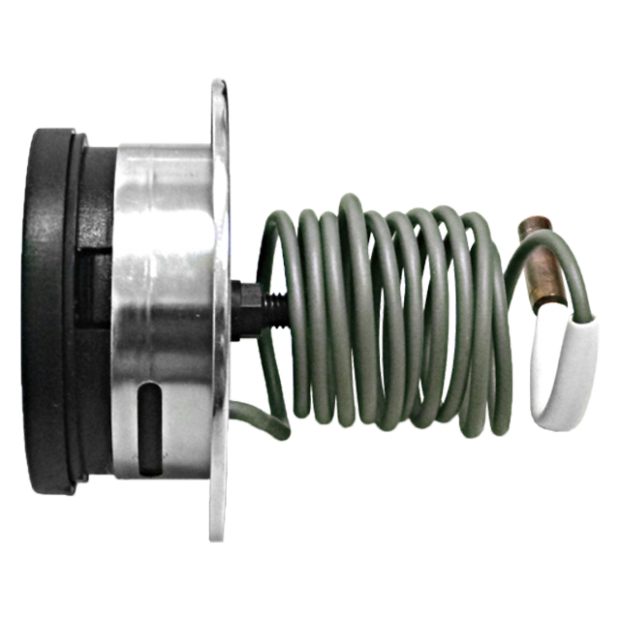

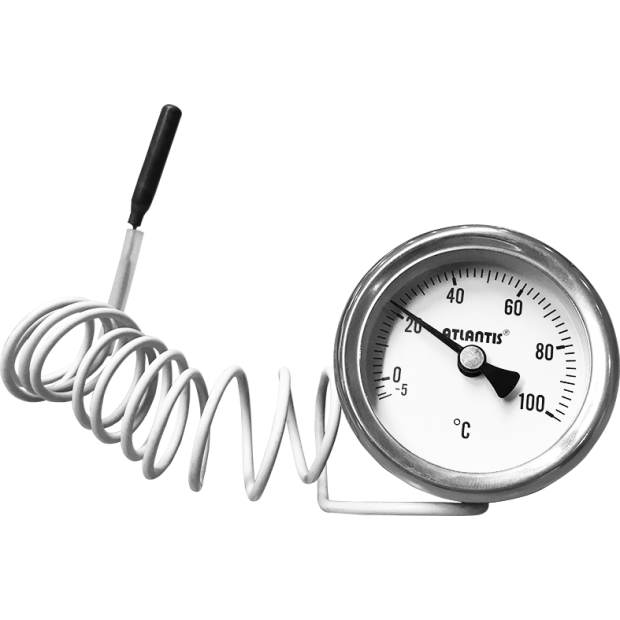

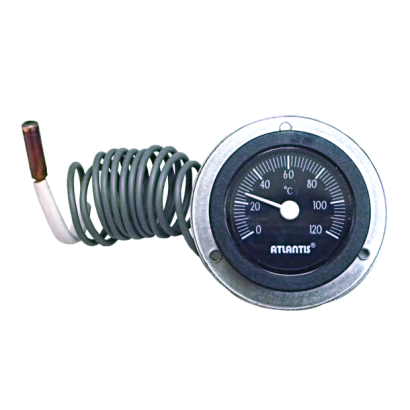

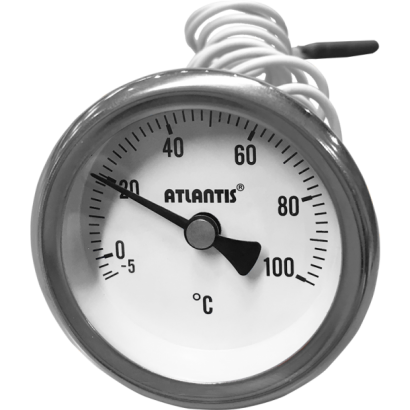

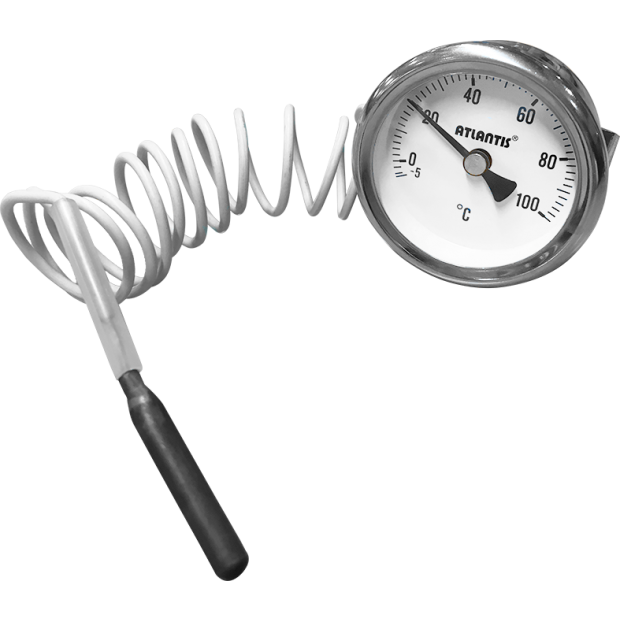

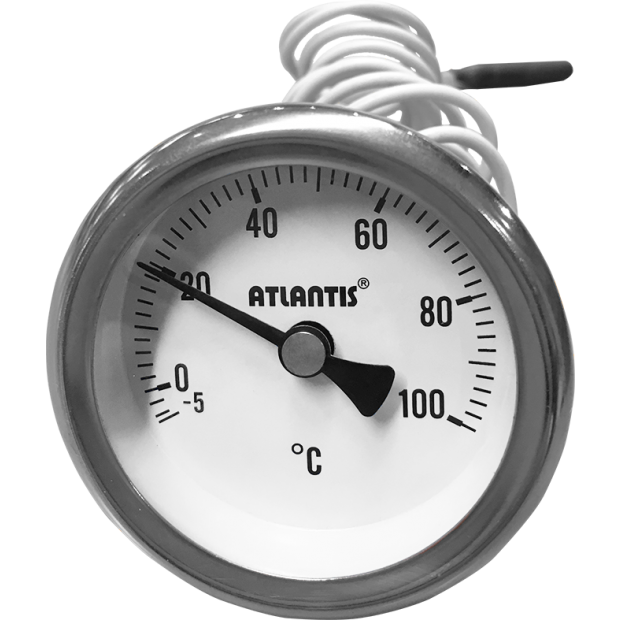

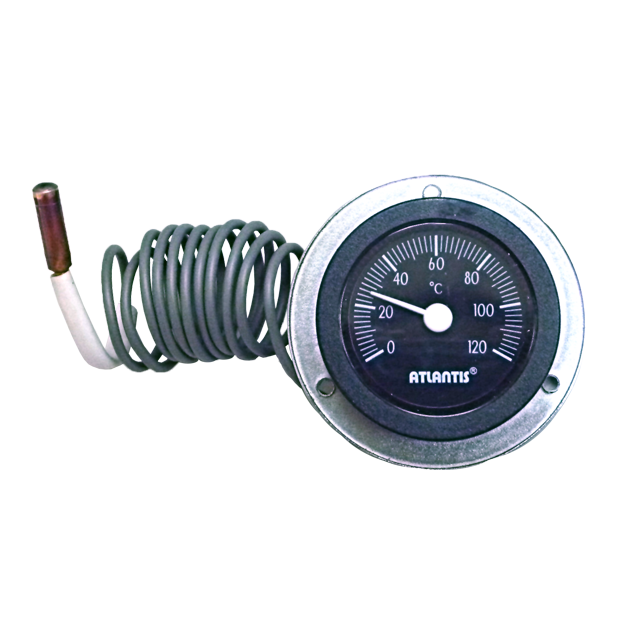

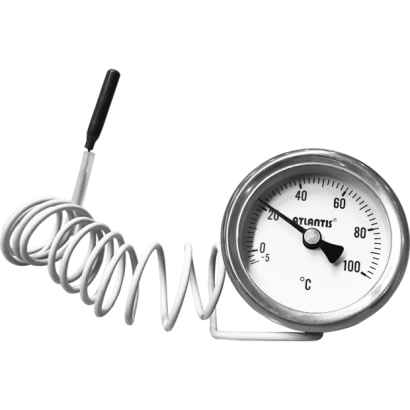

Small Remote Reading Thermometer
Model: FT-M


Introduction
FT-M Small remote reading thermometer applicable to measure temperature of dry machine, food,  refrigeration and air conditioning, and environmental oil-water separation equipment.

Features
■ OEM service
■ Small type remote reading thermometer
■ Easy installation and affordable price
■ Stem & capillary’s outer diameter and length can be customized
■ Media-expansion thermometer, fast response to ambient temperature

Main Specifications
▼Size
2”, 2.5”
▼Installation type
Back mount with flange (FTFF-M)
Wall mount with flange (FTWF-M)
Back mount with U-clamp (FTFU-M)
▼Temperature range
-5~100℃
Other temperature range available upon request
▼Stem
Length: 36mmL
Outer diameter: 6mmΦ
Material: copper alloy
Other stem length available upon request
▼Capillary
Length: 1m (standard)
Material: Nickel-plated copper/Tin-plated copper
Covered with white plastic leather protection
Other capillary length available upon request

Other Specifications
▼Case
SS 304
▼Window
PC
▼Liquid-in-capillary
Kerosene or other fluid (Gas-filling for food or pharmaceuticals)
▼Dial face
Aluminum dial and black scale
With adjustable screw
▼Accuracy
±4%
Higher accuracy available upon request

Download
