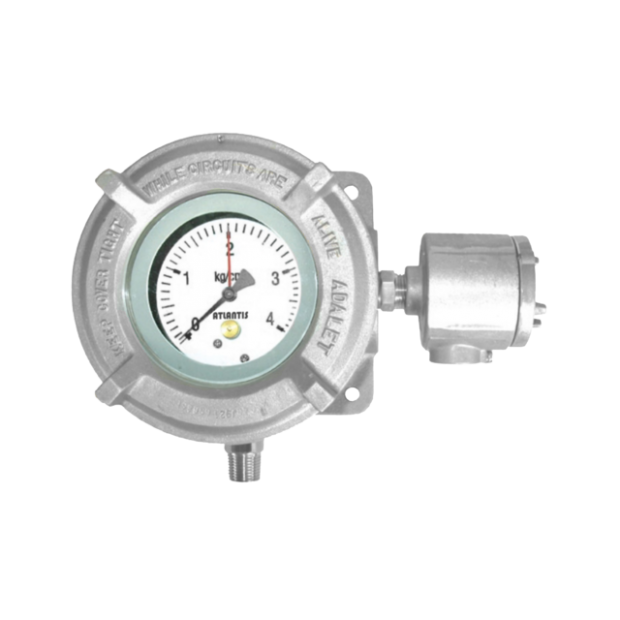

Pressure Gauge with Switch Contact (Explosion-proof Type) MS-APS-5000X

Pressure Gauge with Switch Contact (Explosion-proof Type) MS-APS-5000X

MS-APS-5000X pressure gauge adopts SDPT micro switch. Compared with other electrical contact, MS- APS-5000X has superior indication accuracy, set point accuracy and repeatability, which is suitable for pressure measurement, monitor and auto control.
DETAIL
Pressure Gauge with Switch Contact (Explosion-proof Type)
Model: MS-APS-5000X


Introduction
MS-APS-5000X pressure gauge adopts SDPT micro switch. Compared with other electrical contact, MS- APS-5000X has superior indication accuracy, set point accuracy and repeatability, which is suitable for  pressure measurement, monitor and auto control.

Features
■ OEM service
■ Adopting micro switch, setting point SPDT x1 and SPDT x2 available for choice
■ Gauge indication accuracy ±1%, set point accuracy±2%
■ Actuation point can be set on any position within the full scale range

Main specificaiton
▼Size
6”
▼Mount type
Bottom mount
▼Window
Safety glass
▼Process connection
Material: SS316
3/8”NPT, 1/2”NPT
Other types available upon request
▼Electrical connection (Female)
1/2”NPT
3/4”NPT
G1/2”
G3/4”
M20*1.5
M25*1.5
Other types available upon request
▼Pressure range
-1…0…1 to 400 kg/cm2
▼Operating temperature
-20℃ to +70℃
▼Applicable media
Liquid and gas that compatible with connection’s material
▼Explosion-proof level
Class I groups B, C, D
Class II groups E, F, G
NEMA 4, 7, 9

Other specification
▼Ring
Aluminum alloy
Option: SS316
▼Measuring elements
Bourdon tube
Material: SS316
▼Gauge indication accuracy
±1.0%F.S.
▼Dead band
±2%F.S.
▼Switch type
Micro switch
SPDT x1 (standard)
SPDT x2 (option)
▼Set point
Full scale range available
▼Contact rating
AC load:
250 VAC, 5A
DC load:
28 VDC, 5A (ohmic load),
3A (inductive load)
▼Contact material
Pure silver 999.9
▼Max operating pressure
1.3* full scale
