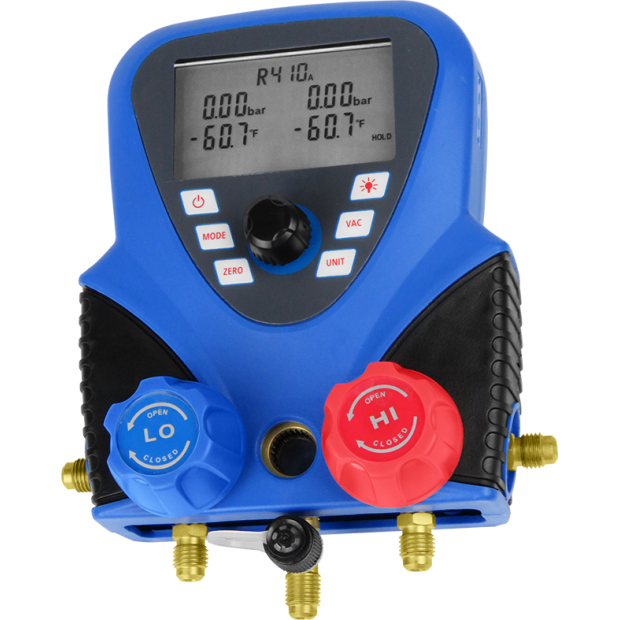

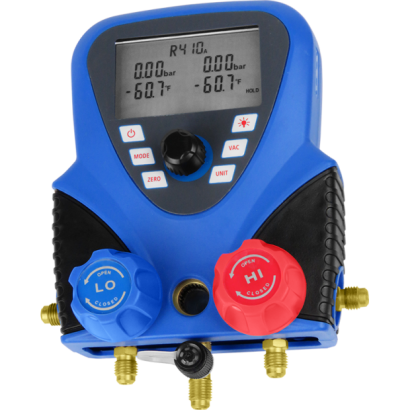

Multi-functional Digital Manifold Gauge Set FDPG-2013
Multi-functional Digital Manifold Gauge Set FDPG-2013
This type of digital refrigeration gauge has high accuracy, wide measuring range and complete performance. It can completely replace the traditional pointer type refrigeration gauge. According to the temperature characteristic of different refrigerant, the pressure value is compensated automatically. Suitable for maintenance and commissioning of air conditioning and cooling systems.
DETAIL
Model: FDPG-2013
Introduction
This type of digital refrigeration gauge has high accuracy, wide measuring range and complete performance. It can completely replace the traditional pointer type refrigeration gauge. According to the temperature characteristic of different refrigerant, the pressure value is compensated automatically. Suitable for maintenance and commissioning of air conditioning and cooling systems.
Features
■ Applicable to a variety of refrigerants: CFC / HCFC / HFC type
■ Simultaneous display high / low pressure and temperature values
■ Folding hook design for easy storage
■ LCD screen flashes when low battery
■ Auto power offautomatically shut down if it is not operated for more than 30 mins. automatically turn off backlight if it is not operated for more than 10 mins.
■ Record the max. / min. / average pressure and temperature
Main Specifications
▼Size
190 x 140 x 80mm
▼Connection
1/4”SAE x3
▼Pressure range
High pressure end: 0…725 psi (0…50bar)
Low pressure end: 0…435 psi (0…30bar)
Vacuum measurement: 29.92 inHg…0inHg
▼Temp. measurement range
-20 to 70°C
▼Applicable refrigerant type
CFC / HCFC / HFC
For more information please refer to applicable refrigerant type table
▼Max. operating pressure
High pressure end: 10875 psi (75bar)
Low pressure end: 6255 psi (45bar)
▼Ambient temperature
-15 to 50°C
▼Ambient humidity
10~90%RH
▼Accessories
Refrigerant pipe (red, blue, yellow) X1

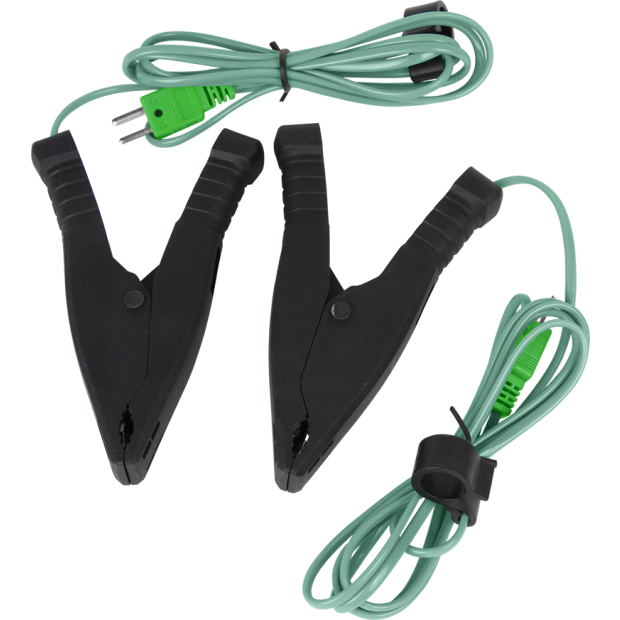

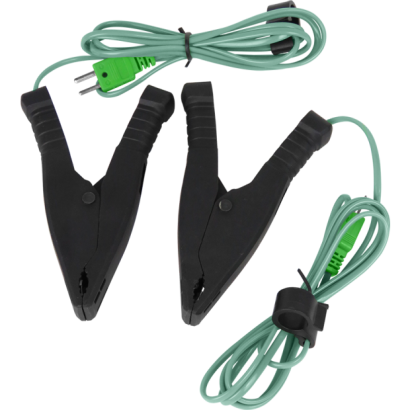

Temperature sensor X2
Other Specifications
▼Case material
ABS/PA/TPE
▼Screen display
LCD screen
Turn on/off backlight with the button
Simultaneous display high and low pressure and temperature values
Pressure display digits: 4-digits
Temp. display digits: 3-digits
▼Screen size
71 (W) * 43 (H) mm
▼Pressure & temperature unit
Switchable pressure unit▼
inHg, bar, psi, kPa
Switchable vacuum unit▼
Micron, kPa
Switchable temp. unit▼
°C, °F
▼Power supply
AA 1.5V battery x5
Service life is about 150 hours (without backlight)
The screen flashes as the alarm when the battery is low
▼Accuracy
Pressure: ±0.5%F.S.
Vacuum: ±5Micron
Temperature: ±0.5°C
▼Weight
800g (without battery)
