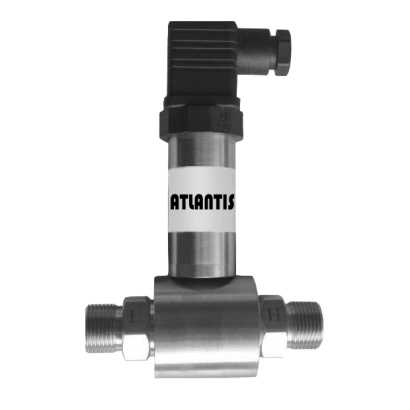

Differential Pressure Transmitter (Anti-corrosive Type) DPT-AC

Differential Pressure Transmitter (Anti-corrosive Type) DPT-AC

DPT-AC differential pressure transmitter adopts high quality SS316L diaphragm pressure sensor. With high accuracy and strong anti-corrosive features, it is suitable for petroleum, chemical and electrical industry, air- conditioning system, energy and wastewater treatment system, auto control system and industry process control.
DETAIL

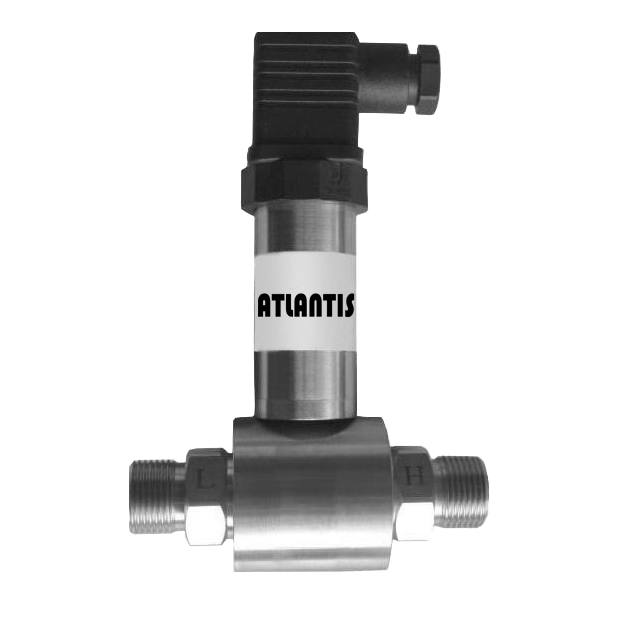

Differential Pressure Transmitter (Anti-corrosive Type)
Model: DPT-AC


Introduction
DPT-AC differential pressure transmitter adopts high quality SS316L diaphragm pressure sensor. With high accuracy and strong anti-corrosive features, it is suitable for petroleum, chemical and electrical industry, air-conditioning system, energy and wastewater treatment system, auto control system and industry process control.

Features
■ OEM service
■ Wide measurement range: 0⋯35kPa~7MPa
■ Compact design with easy installation
■ High accuracy and stability
■ Strong anti-corrosive SS316L diaphragm
■ Operating temperature can up to 150℃ (option)

Main Specifications
▼Pressure connection
Material: stainless steel
M20 x 1.5
G1/2”
For other connection specifications please specify your requests before order
▼Electrical connection
Hirschmann / Wire boot / Packard / Aviation plug
▼Pressure range
Type: differential pressure
Min.: 35kPa
Max: 7MPa
▼Applicable fluid
Gas and liquid that compatible with stainless steel
▼Operating temperature
-20 to 85℃
(option: -20 to 150℃)
▼Protection level
IP 65 (Hirschmann connector)
IP 66 (Wire boot)
IP 67 (Aviation plug and Packard connector)

Other Specifications
▼Housing
Stainless steel
▼Power supply
12~36VDC (standard 24V)
▼Output signal
4~20mA (2-wire)
▼Measuring elements
Diaphragm
Material: SS316L/Ceramic
▼Resistive load
750Ω
▼Zero & span temp. drift
±0.02% F.S.
▼Accuracy
0.1/0.25/0.5% F.S.
▼Repeatability
≤ 0.1/0.25/0.5% F.S.
▼Stability
±0.25% F.S. / year
▼Overpressure
3*F.S.
▼Response time
≤ 1ms
▼Service life
> 9,000,000 cycles
▼Weight
180g
