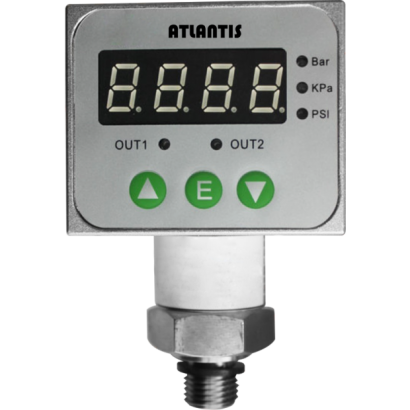

LED Digital Pressure Switch DPS-4ED(0.5)

LED Digital Pressure Switch DPS-4ED(0.5)

DPS-4ED(0.5) digital pressure switch integrates pressure measurement, display, and control. It adopts high-quality diffused silicon and isolated diaphragm as measuring elements. This product has a variety of setting functions and is easy to calibrate. It is suitable for pressure measurement, display, and control in power plants, water, petroleum, chemical industry, engineering and other industrial environments.
DETAIL

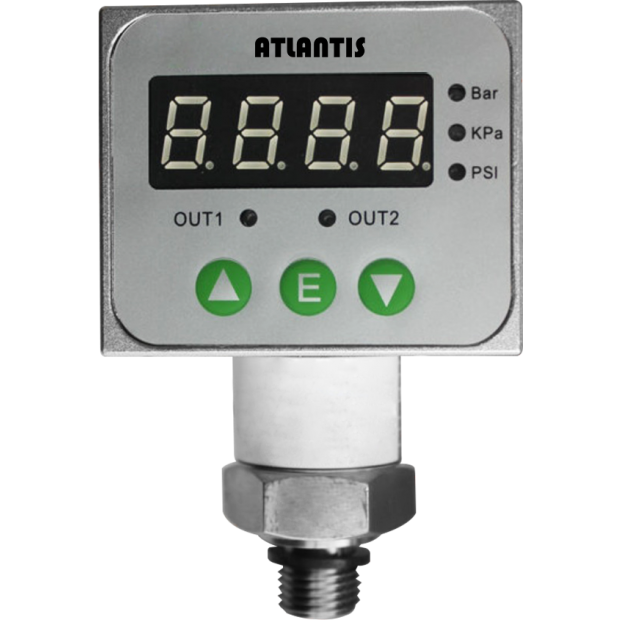

LED Digital Pressure Switch
Model: DPS-4ED(0.5)

Introduction

DPS-4ED(0.5) digital pressure switch integrates pressure measurement, display, and control. It adopts  high-quality diffused silicon and isolated diaphragm as measuring elements. This product has a variety  of setting functions and is easy to calibrate. It is suitable for pressure measurement, display, and control  in power plants, water, petroleum, chemical industry, engineering and other industrial  environments.

Features
■ Integrated pressure measurement display, alarm control, signal output
■ User can set high or low pressure alarm point
■ Relay + 4-20mA output
■ 4-digit LED screen display
■ Easy to install and operate
■ Standard accuracy 0.5%, up to 0.1%
■ Protection level: IP65

Main Specifications
▼Connection
Material: SS304
Welded seal structure
M20*1.5, M14*1.5,
G1/2”, G3/8”, G1/4”, 1/2”NPT, 1/4”NPT
Other specifications are available made-to-order
▼Electrical connector
8-pin aviation plug with cable
▼Screen display
4-digit LED display
▼Alarm output
Relayx2
▼Analog signal output
4-20mA
▼Pressure range
0 to 600bar
▼Operating temperature
-20…85℃
▼Storage temperature
-20…125℃
▼Protection level
IP65

Other Specifications
▼Case
SS304
▼Power supply
Std: 24VDC/220VAC
▼Contact rating
Max. 30V/3A, 240V/3A
▼Pressure unit
kPa, bar, psi
▼Measuring elements
Precision diffusion silicon chip + isolated diaphragm
▼Accuracy (Including non-linearity, hysteresis and repeatability)
0.5% (Standard)
Option: 0.25% / 0.1%
▼Insulation resistance
Min. 1MΩ@250VDC&25℃
▼Stability
±0.1%F.S./year
▼Thermal zero & full shift
±1.0% F.S.
▼Operating pressure
Overpressure▼
3*F.S.
Burst pressure▼
4*F.S.
▼Shockproof
100g, 11msec
▼Weight
About 350g
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
