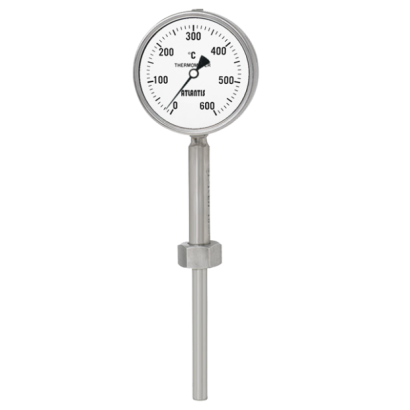

Gas-actuated Thermometer (For Marine Type) ITI-M

Gas-actuated Thermometer (For Marine Type) ITI-M

ITI-M gas actuated thermometer adopts all stainless steel material design with custom stem length, diameter and various process connection. Measuring principle adopts gas-actuated to ensure fast reaction to ambient temperature. With silicone oil filling, ITI-M thermometer has better shockproof performance compared to other thermometers.
DETAIL

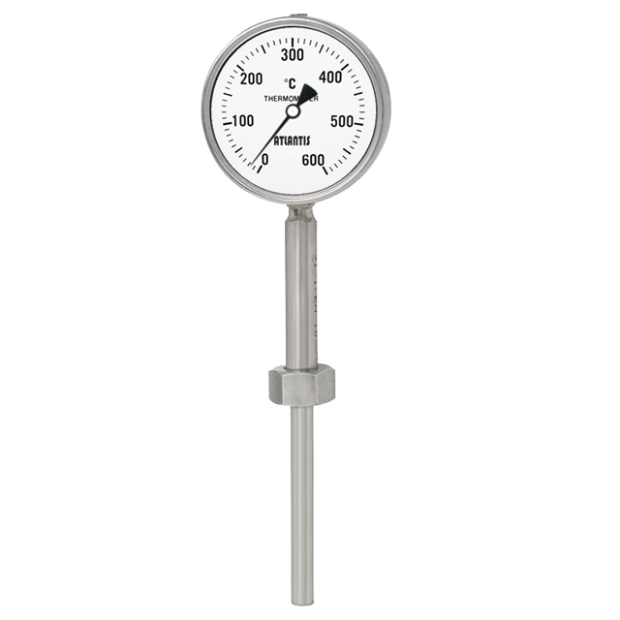

Gas-actuated Thermometer (For Marine Type)
Model: ITI-M

Introduction

ITI-M gas actuated thermometer adopts all stainless steel material design with custom stem length, diameter and various process connection. Measuring principle adopts gas-actuated to ensure  fast reaction to ambient temperature. With silicone oil filling, ITI-M thermometer has better shockproof performance compared to other thermometers.

Features
■ OEM service
■ All stainless steel design
■ Silicone oil has been filled to ensure shockproof performance
■ Adjustable male thread design with a stop plate
■ Gas-actuated measurement ensuring the fastest reaction to temperature change
■ Ship specialized industrial thermometer

Main Specifications
▼Size
3”, 4”,5”,6”
▼Window
Glass
▼Process connection
Thread type: M27x2 Adjustable
male thread, G3/4”, 3/4”NPT
Material: SS304
Other specifications (include female thread) are available, please specify
▼Extension neck
Outer diameter: 16mm (std.)
Length 75mm (Std.)
Other specifications are available, please specify
▼Stem
Material: SS304
Length: 106mm (std.) 60mm (min.)
Outer diameter: 8 / 9.5 / 12mm
Other specifications are available, please specify
▼Temperature range
Min.: -50°C
Max.: +650°C
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Oil-filling
Silicone oil
▼Protection level
IP 65
▼Temperature error
Standard: calibrated temp.
Every ±4 °C max. error: 0.25%

Other Specifications
▼Ring
Stainless steel
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale on whiteboard
▼Measuring elements
Gas-actuated
Gas-pressure inert gas filling
▼Accuracy
±1%F.S.
▼Operating temperature
Stability: 3/4*F.S.
Short-time: 1*F.S.
