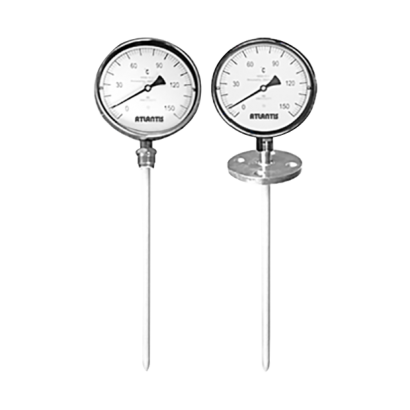

Anti-Corrosive Bimetal Thermometer BTI-AC

Anti-Corrosive Bimetal Thermometer BTI-AC

The stem of anti-corrosive Bimetal Thermometer is processed with advanced processing technology for PTFE tube or thermowell sintered with PTFE to protect thermometer from corrosive media. It can be used to measure the temperature of severe industrial media in all kinds of chemical industries.
DETAIL

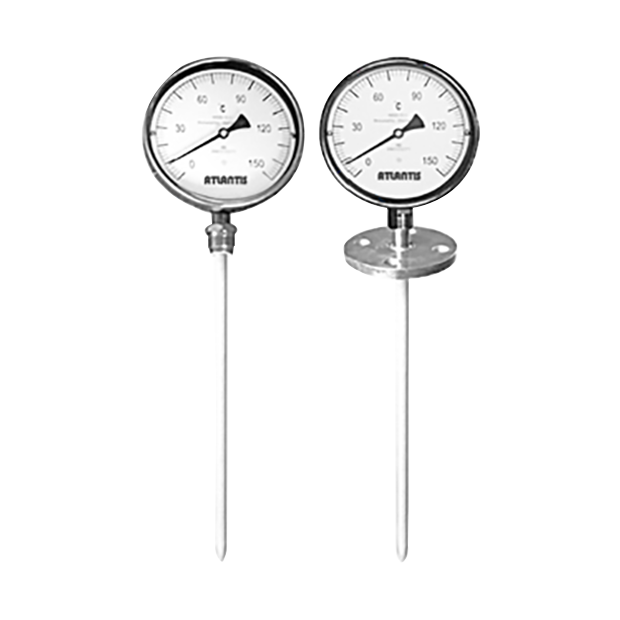

Anti-Corrosive Bimetal Thermometer
Model: BTI-AC

Introduction

The stem of anti-corrosive Bimetal Thermometer is processed with advanced processing technology for PTFE tube or thermowell sintered with PTFE to protect thermometer from corrosive media. It can be  used to measure the temperature of severe industrial media in all kinds of chemical industries.

Features
■ OEM service
■ PFTE tube / thermowell sintered with PFTE to protect thermometer from corrosive media
■ All stainless steel design
■ Full scale accuracy - within 1.5%
■ Customized stem length
■ Dual scale (℃/℉) available

Main Specifications
▼Size
3”, 4”,5”,6”
▼Window
Glass
With O-ring sealed
▼Process connection
Material: SS 304 / SS316
Sliding male / fixed flange: Metric thread, British thread
▼Stem
Material: SS 304
Outer diameter (Φ): 6mm / 8mm / 9.5mm / 12mm
Length:
Minimum length: 4”
Maximum length: 80”
(100.6mm ~ 2032mm)
▼Temperature range
Min.: -60°C
Max.: +250°C
▼Applicable fluid
Liquid and gas that compatible with SS 304
▼Working environment
Head temperature should not over 90℃
Stem cannot continually expose to: operating temperature over 1/2 full scale or 400℃
▼Protection level
IP 65

Other Specifications
▼Housing
SS304
▼Outer Coating
PTFE tube / thermowell with
PTFE coating.
▼Pointer
Aluminum with black enamel
Adjustable pointer
▼Dial face
Aluminum, black and red markings on with background
Single scale (℃) or Dual scale (℃ & ℉)
▼Measuring elements
Bi-metal
Temperature sensing area: last 2”-4”of stem
▼Temperature accuracy
±1.5% / ±1%F.S.
▼Operating pressure
Max. 40bar
