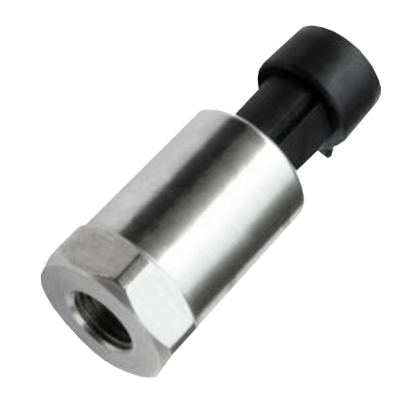

Pressure Transmitter (For Refrigeration Compressor and Humidifier) PT-RCH1100

Pressure Transmitter (For Refrigeration Compressor and Humidifier) PT-RCH1100

PT-RCH1100 pressure transmitter mainly used in refrigeration compressors and humidifiers. It apply to measure the pressure of refrigerants (before/after energy exchange) or humidifiers, the measured pressure value will transmit to control unit to control refrigeration compressors and humidifiers working status accordingly.
DETAIL

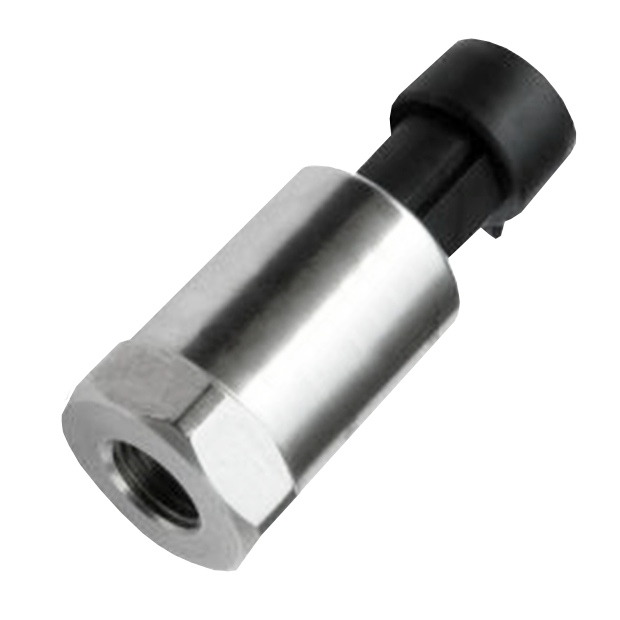

Pressure Transmitter (For Refrigeration Compressor and Humidifier)
Model: PT-RCH1100

Introduction

PT-RCH1100 pressure transmitter mainly used in refrigeration compressors and humidifiers. It apply to  measure the pressure of refrigerants (before/after energy exchange) or humidifiers, the measured pressure value will transmit to control unit to control refrigeration compressors and  humidifiers working status accordingly.

Features
■ OEM service
■ Accuracy ±1.0% F.S.
■ Transmit measured pressure value to refrigeration compressors or humidifiers’ control unit

Main Specifications
▼Pressure connection
7/16-20UNF / 9/16-20UNF
▼Sealing
O-ring sealed
Material: CR (Neoprene) / HNBR (Hydrogenated Nitrile)
▼Electrical connection
Packard
▼Pressure range
-1.0…0~2…50bar
▼Pressure type
Gauge pressure
▼Applicable refrigerant
CR O-ring sealing: R12, R22, R134a, R404A, R407C, R410A, R507
HNBR O-ring sealing: R134a, R404A, R407C, R410A, R507
▼Applicable fluid
Gas and liquid that compatible with SS304 and ceramic
▼Medium temperature
-20 to 120℃
▼Protection level
IP 65

Other Specifications
▼Housing material
SS 304
▼Supply voltage
10~30VDC (Two-wire) / 5VDC (Three-wire)
▼Output signal
4~20 mA (Two-wire) / 0.5 ~ 2.5…4.5 VDC (Three-wire)
▼Measuring elements
Ceramic capacitive pressure sensor
▼Response time
10ms
▼Accuracy
±1.0% F.S.
▼Operating pressure
Overpressure: 1.5* full scale
Burst pressure: 2* full scale
▼Electromagnetic field radiation
±10V/m
▼Static electricity
Air discharge: ±8kV
Contact discharge: ±4kV
▼Other requests (Option)
Third party notarized documents
Inspection report (issued by Re-Atlantis)
