4”Digital Pressure Gauge DPG-K4.0

4”Digital Pressure Gauge DPG-K4.0

Features
■ OEM service
■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
■ Plastic / Stainless steel case available
■ Power saving mode - auto turn off backlight after 10 secs
■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature
  • 4”Digital Pressure Gauge
  • 4”Digital Pressure Gauge
DETAIL

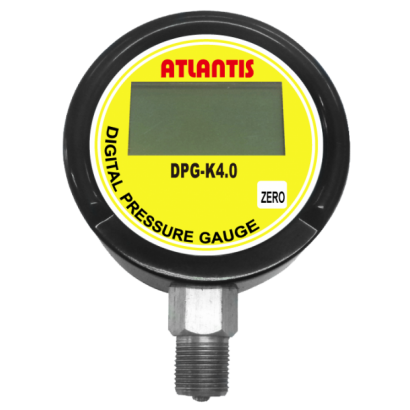

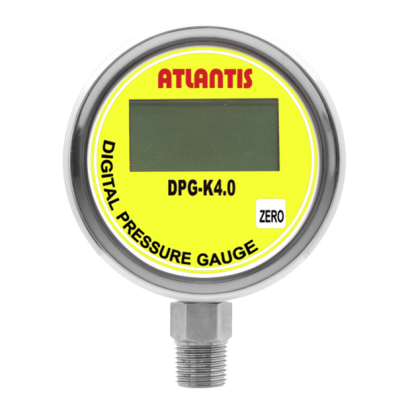

4”Digital Pressure Gauge
Model: DPG-K4.0

Features

■ OEM service
■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
■ Plastic / Stainless steel case available
■ Power saving mode - auto turn off backlight after 10 secs
■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature

Main Specifications
▼Size
4”(100mm)
▼Installation type
Bottom mount
▼Pressure connection
Material: Stainless steel
1/4”PT
1/4”NPT
Other threads can be customized upon request
▼Pressure range
Gauge pressure▼
0~1000 bar
Vacuum▼
-760mmHg…0
▼Applicable media
Liquid and gas that compatible with stainless steel
▼Operating temperature
-15 to 70℃
▼Media temperature
+80℃

Other Specifications
▼Case material
Plastic/Stainless steel
▼Screen display
4-digit LCD display with backlight function
Option: 5-digit LCD display
▼Screen size
4-digit LCD display▼
52 (W) x 27 (H) mm
5-digit LCD display▼
55 (W) x 30 (H) mm
▼Switchable unit
Gauge pressure: MPa, psi, kg/cm2
Vacuum: mbar, mmHg, inHg
▼Power supply
Plastic case: 1.5V battery×3
Stainless steel case: 9V lithium batteryx1
▼Accuracy
±1.0% F.S./±0.5%F.S./±0.25%F.S.
▼Max. pressure resistance
150% F.S.
