Black Steel Case Shockproof Dry Pressure Gauge SP-EPG

Black Steel Case Shockproof Dry Pressure Gauge SP-EPG

SP Series pressure gauge adopts diaphragm as measuring element to ensure great shockproof performance. SP series are suitable for high vibration frequency environment with use no oil requirement.
  • Black Steel Case Shockproof Dry Pressure Gauge
  • Black Steel Case Shockproof Dry Pressure Gauge
DETAIL
Black Steel Case Shockproof Dry Pressure Gauge

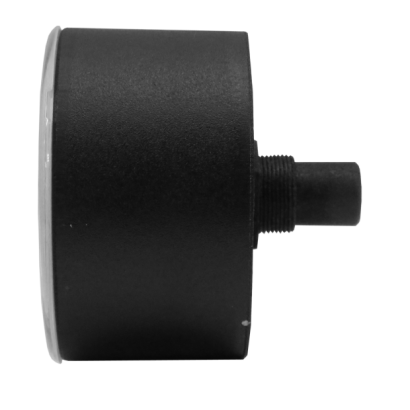

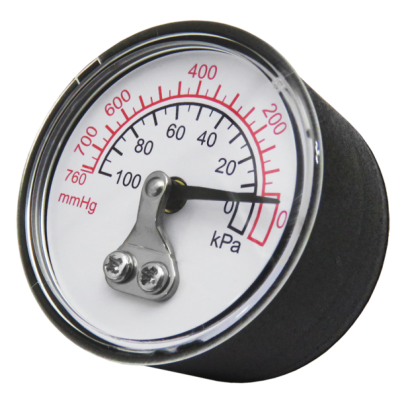

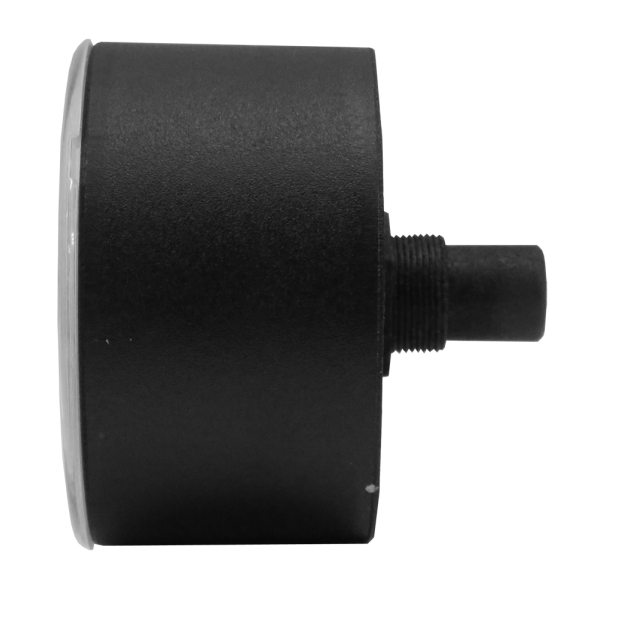

Model: SP-EPG

Introduction

SP Series pressure gauge adopts diaphragm as measuring element to ensure great shockproof performance. SP series are suitable for high vibration frequency environment with use no oil  requirement.

Features
■ OEM service
■ Adopts diaphragm as measuring element, providing shockproof performance without filling liquid
■ Dampened movement
■ Instant pressure resistance
■ Shatterproof performance
■ Long service life

Main Specifications
▼Size
1.5”, 2”, 2.5”, 3.5”
▼Installation type
Bottom mount (A)/Bottom mount with flange (B)/Back mount (ADC)/Back mount with flange (BDC)/Back mount with U-clamp (UDC)
▼Window
PC / glass / Acrylic
PE gasket
▼Pressure connection
Material: copper alloy
Thread size: 1/8”, 1/4”, 3/8”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…1 to 28bar
Negative pressure▼
-1…0bar/-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP 54

Other Specifications
▼Ring material
ABS/Steel with black enamel
▼Ring mount
Inside bayonet/Outside bayonet/Snap-in
For more information please refer to ring mount type-size table
▼Case material
ABS/Steel with black enamel
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Diaphragm
Material: beryllium copper
▼Movement
Dampened movement
Material: copper alloy
▼Accuracy
±2.5% (Option: ±1.6%, ±1% )
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
