Low Temperature Level Differential Pressure Gauge LDPG-LTHP

Low Temperature Level Differential Pressure Gauge LDPG-LTHP

LDPG-LTHP low temperature level differential pressure gauge is suitable for non-viscous crystallization, liquid and gas medium level measurement compatible with copper alloys, and is generally used in low temperature equipment, filter equipment monitoring, pump monitoring, closed pressure storage tanks and other places in the refrigeration industry.
  • Low Temperature Level Differential Pressure Gauge
  • Low Temperature Level Differential Pressure Gauge
DETAIL

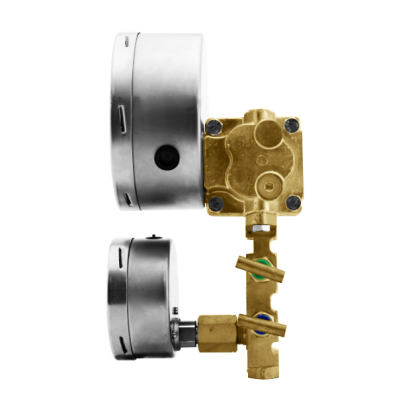

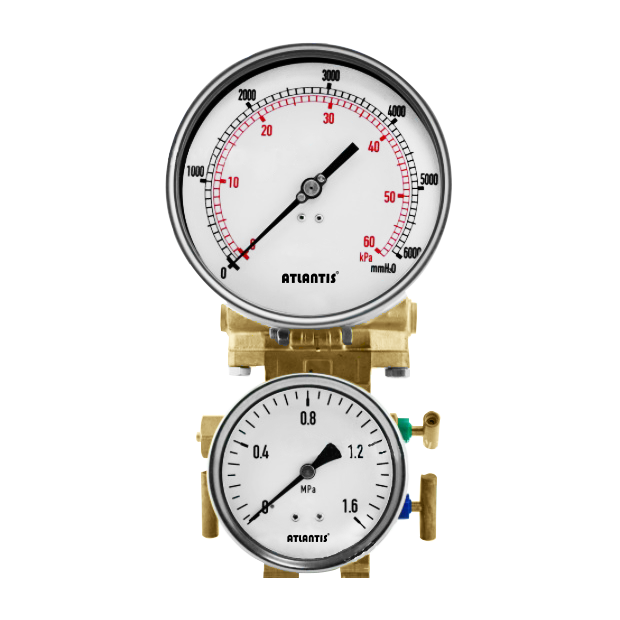

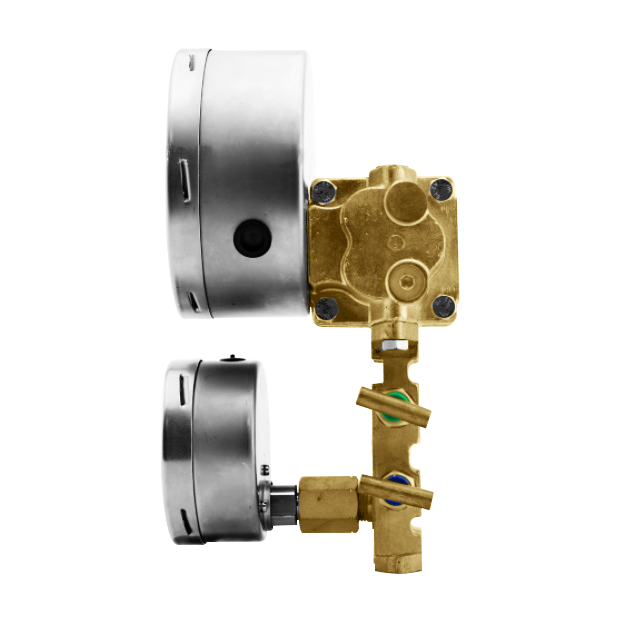

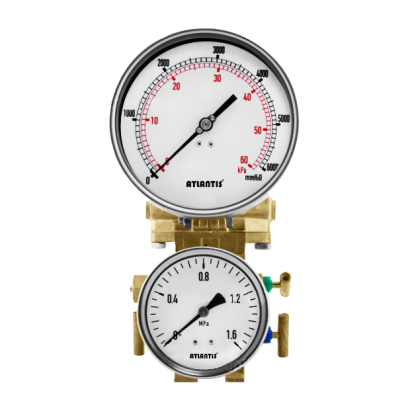

Low Temperature Level Differential Pressure Gauge
Model: LDPG-LTHP

Introduction

LDPG-LTHP low temperature level differential pressure gauge is suitable for non-viscous crystallization,  liquid and gas medium level measurement compatible with copper alloys, and is generally used in low  temperature equipment, filter equipment monitoring, pump monitoring, closed pressure storage tanks  and other places in the refrigeration industry.

Features
■ Designed for low temperature equipment, indicating current level difference on site
■ Differential pressure measurement range: 0⋯10 to100kPa
■ Max. static pressure 5MPa
■ 4-20mA remote signal output
■ Connection distance converter is optional upon request
■ 3 or 5 valve sets are optional to use with differential pressure gauge

Main Specifications
▼Diameter of differential pressure level gauge
150mm, 101mm
▼Installation type
Install with four M8 fixed holes or adopt back type fixed plate
▼Window
Glass
▼Pressure connection
Material: Copper alloy
Spec.: G1/4”, M20*1.5
Other spec. are available made-to-order
▼Connection distance
Standard: 37mm
Option: 50mm / 54mm
▼Differential pressure measurement range
0…10 to 100kPa
▼Applicable media
Non-corrosive and noncrystalline liquid or gas compatible with copper alloy
▼Ambient temperature
-40 to 60℃
▼Media temperature
-40 to 60℃
▼Protection level
IP65

Other Specifications
▼Case material
SS304
▼Measuring chamber material
Copper alloy
▼Pointer
Iron with black enamel, zero set pointer
▼Dial
Aluminum white panel with black scale
▼Output signal
4~20mA
▼Movement
SS304
▼Measuring elements
Diaphragm
Material: NBR/SS316/65Mn
▼Accuracy
±2.5% F.S. (Positive and negative end measure differential pressure gauge)
±1.6% F.S. (Negative pressure end measures pressure gauge)
▼Max. static pressure
5MPa
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
3 valve set
5 valve set
Connection distance converter
Wetted part degreasing treatment
