Integrated Digital Temperature Transmitter (Thread Connected Type) ITT-L200 (T)

Integrated Digital Temperature Transmitter (Thread Connected Type) ITT-L200 (T)

ITT-L200 (T) series digital temperature transmitter adopts PT100 temperature sensor, LCD display is optional. It adopts an integrated transient voltage terminal module and can be used in severe surge voltage situations. It is suitable for various industrial temperature measurement and transmission requirements.

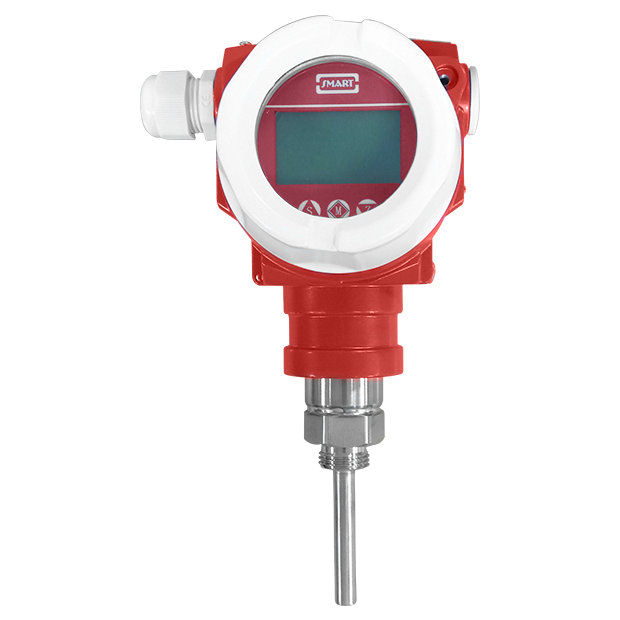

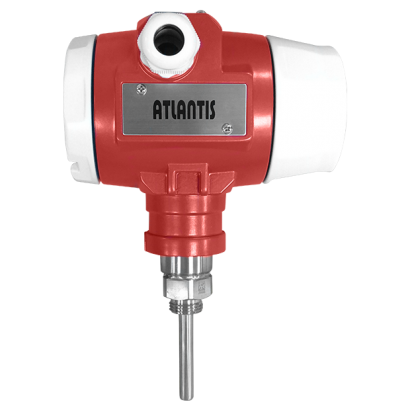

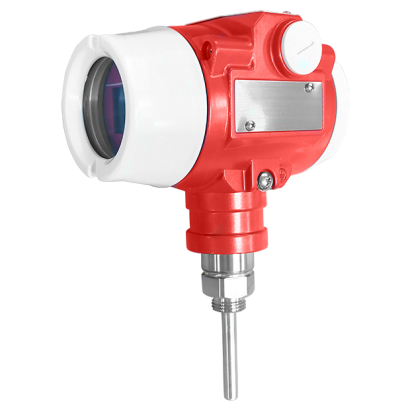

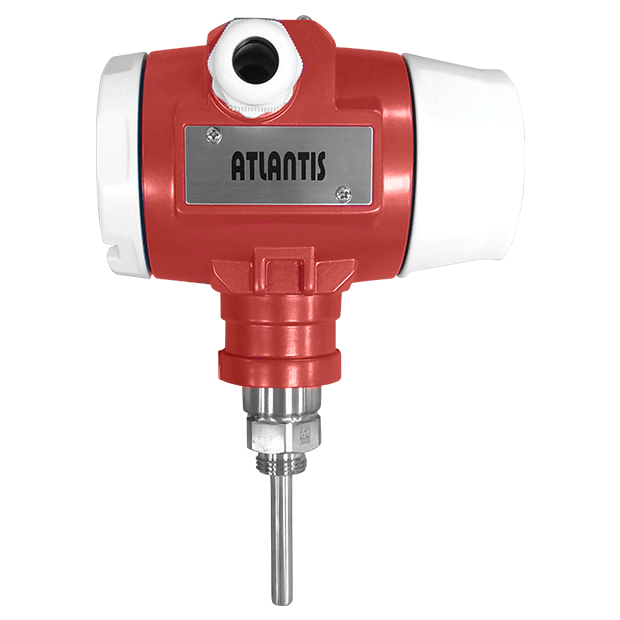

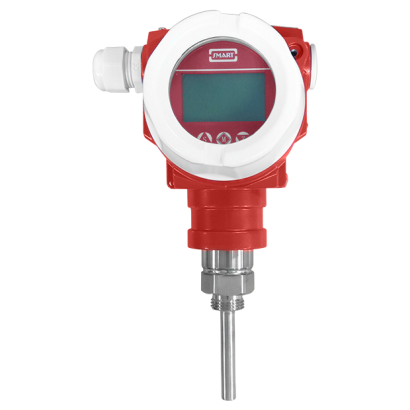

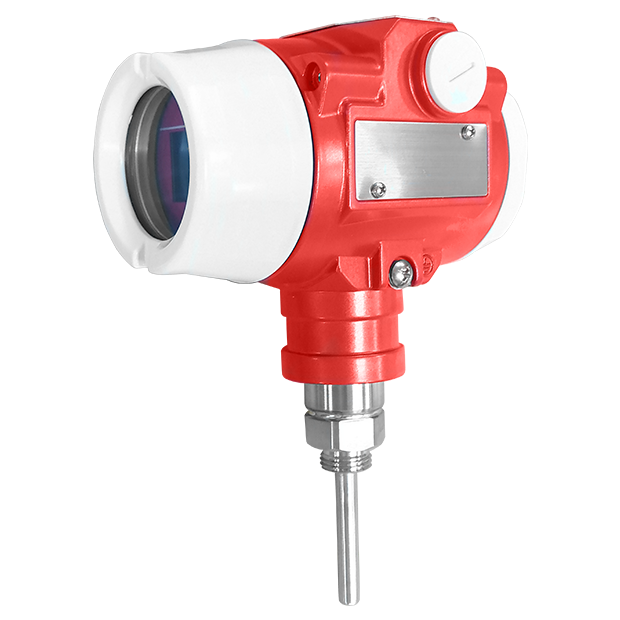

  • Integrated Digital Temperature Transmitter.png
  • Integrated Digital Temperature Transmitter.png
  • Integrated Digital Temperature Transmitter.png
DETAIL
Integrated Digital Temperature Transmitter (Thread Connected Type)
Model: ITT-L200 (T)

Introduction

ITT-L200 (T) series digital temperature transmitter adopts PT100 temperature sensor, LCD display is optional. It adopts an integrated transient voltage terminal module and can be used in severe  surge voltage situations. It is suitable for various industrial temperature measurement and transmission requirements.

Features
■ Thread connection type, active thread is optional
■ Customized stem length and outer diameter, and install a thermowell is available
■ Wide temp. measurement range: -50 to 400℃
■ Output signal: 4-20mA
■ Temperature measuring element adopts Pt100, accuracy 0.5%F.S.
■ User friendly interface, parameters are easy to set and its value could show immediately when it with LCD display
■ Protection level: IP67
■ Digital RS485 output is available

Main Specifications
▼Mounting type
Fixed thread/active thread connection mounting
▼Connection
Material: SS304/SS316
M20*1.5 male thread/G1/2”male thread
1/2”NPT male thread
Other specification is available made-to-order
▼Electrical connector
Aluminum alloy junction box
Outlet female thread: M20*1.5
Applicable wire diameter: Φ6-8mm
▼Temperature range
-50 to 400℃
Min. measurement range: 100℃
▼Stem
Outer diameter:
Φ6/8/10/12/16mm
Material: Same as material of connection
Length: Customized, 50…3000mm
Install a thermowell (Option)
▼Applicable media
Liquid and gas that compatible with material of connection
▼Ambient temperature
Standard: -40 to 85℃
With LCD display: -20 to 70℃
▼Storage temperature
Standard: -40 to 100℃
With LCD display: -40 to 85℃
▼Ambient humidity
0…95% R.H.
▼Protection level
IP67

Other Specifications
▼Analog signal output
4-20mA
▼Digital signal output (Option)
RS485
▼Screen display (Option)
5-digit LCD display with backlight
Size: 39 x 23 mm
▼Wiring protection
M20*1.5 waterproof connector
▼Extension tube (Option)
Outer diameter: Φ12m
Material: SS316
Length: 50 / 100 / 150 / 200mm
▼Measuring elements
Pt100
▼Power supply
10~30VDC
▼Stability
±0.05% F.S./year
▼Accuracy
±0.5% F.S. (Standard)
▼Temp. response time
≤10s@ water flow 0.4m/s
▼Insulation resistance
≥20MΩ, 100VDC
▼Power consumption
≤500Mw@24VDC, 20.8Ma
▼Weight
About 1.29kg
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
RS485 output
Connection material: SS316
Install a thermowell
Active thread
Flameproof, 1/2”NPT (F) one side, stainless steel blind plug another side
Flameproof, M20x1.5 (F) one side, stainless steel blind plug another side
Degreasing treatment
Wetted part electrolytic polishing
