Digital Precision Differential Pressure Gauge Model: AT803-D Introduction

Digital Precision Differential Pressure Gauge Model: AT803-D Introduction

The accuracy of AT803-D digital precision differential
pressure gauge is up to 0.05%, which is suitable for
high precision micro differential pressure
measurement such as on-site and laboratory pressure
measurement and calibration.
DETAIL

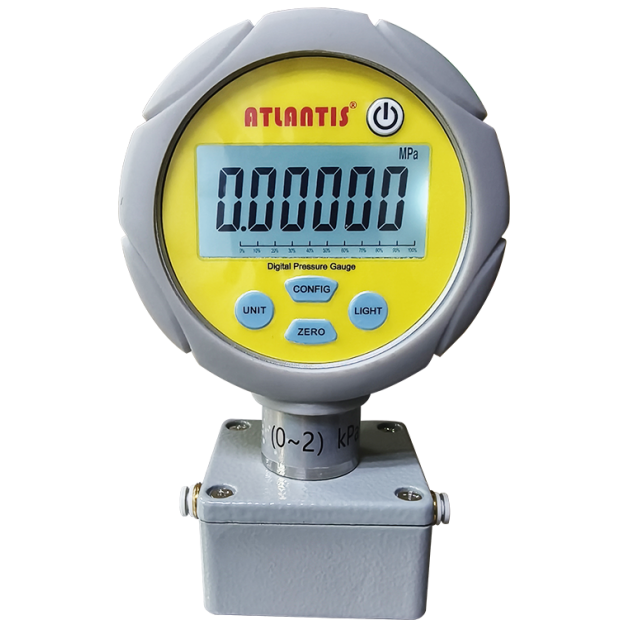

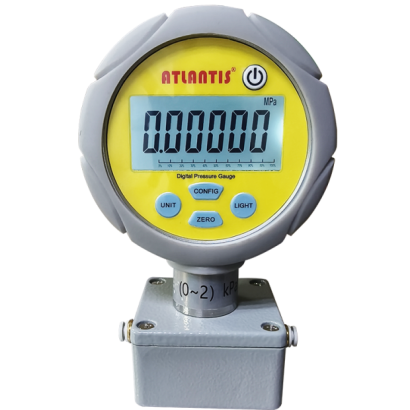

Digital Precision Differential
Pressure Gauge
Model: AT803-D


Features
■ OEM service
■ Micro differential pressure measurement
■ High accuracy - up to 0.05%
■ 5- or 6-digit LCD display
■ Zero adjustment button
■ Low power consumption -
continually operate over 10000 hours
■ Large display screen 58 x 29 mm
■ Adjustable pressure units:
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar

▼Size
3.5”(95 mm)
▼Process connection
High and low pressure port:
Ø4 mm test hose x2
▼Differential pressure range
Min.: 60Pa
Max.: 10kPa
Compound pressure available
▼Applicable media
Non-corrosive gases that
compatible with SS 316
▼Ambient temperature
-20°C to +70°C
▼Storage temperature
-40°C to +85°C
▼Media temperature
-10°C to +50°C
▼Ambient humidity
95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temp.: 20℃
max. error: ±0.1% F.S
(0~50℃)

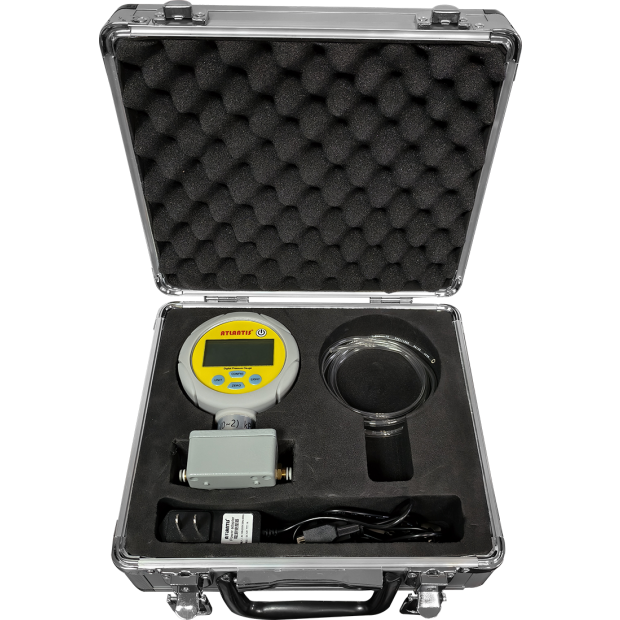

▼Accessory
3.6V lithium battery
Hose
▼Ring
Aluminum die casting
▼Back housing
Aluminum die casting
▼Screen display
5-digit LCD/6-digit LCD
White backlight
▼Refresh rate
Adjustable from 3 readings per
second to 1 reading every ten
seconds
▼Screen size
58 x 29 mm
▼Pressure unit
mmH2O, mmHg, inH2O, Pa,
kPa, mbar
▼Resolution
0.0001
▼Measuring elements
High-tech silicon chip
SS 316L diaphragm
▼Accuracy
Please refer to pressure range
and accuracy table
▼Overpressure
Please refer to pressure range
and accuracy table
▼Compensated temperature
0°C to 50°C
▼Power supply
3.6V lithium battery/
AA batteries x3/
Input DC 9V (2A) adapter
▼Battery life
Please refer to battery life table
▼Weight
450g
▼Other requests (Option)
Third party notarized
document
Inspection report
(issued by Re-Atlantis)
Tag
Customized dial face
(brand, color, etc.)
