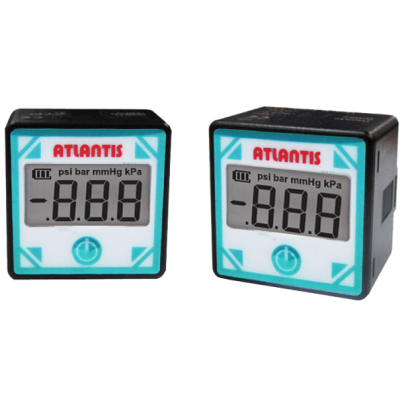

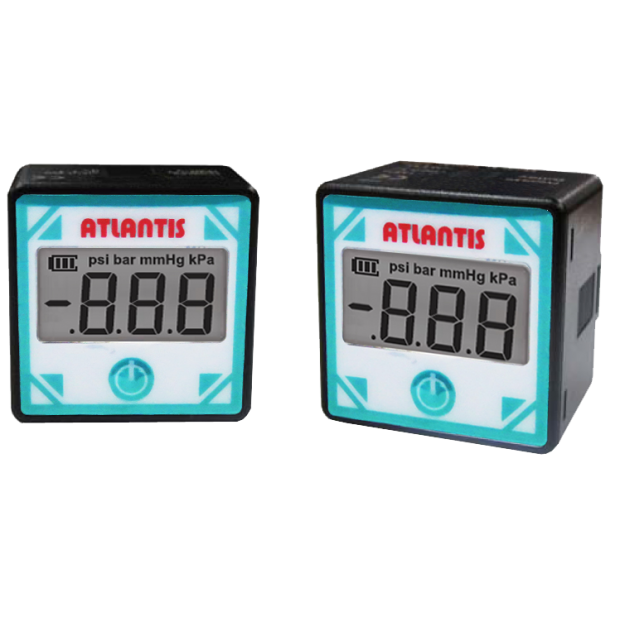

Mini Air Digital Pressure Gauge Model: DPG-A60 Series Introduction

Mini Air Digital Pressure Gauge Model: DPG-A60 Series Introduction

Features
■ OEM service
■ Connection part laser welding
■ Auto power off design to conserve energy
■ Instant measure pressure once power on
■ Protection level IP65(*1)

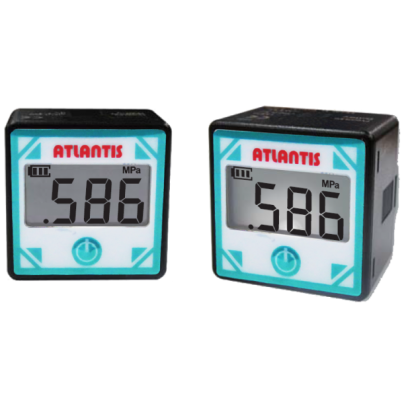

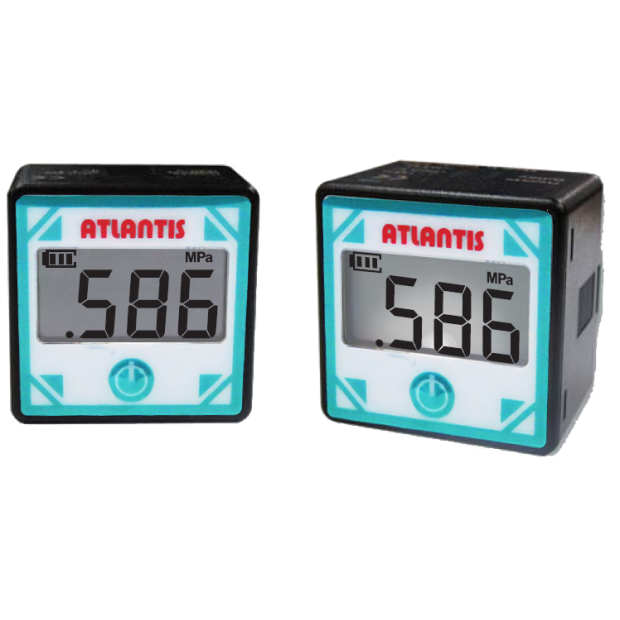

  • DPG-A60.jpg

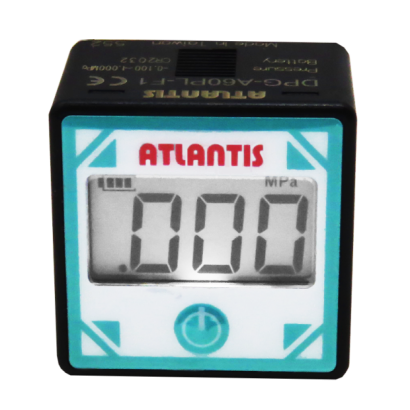

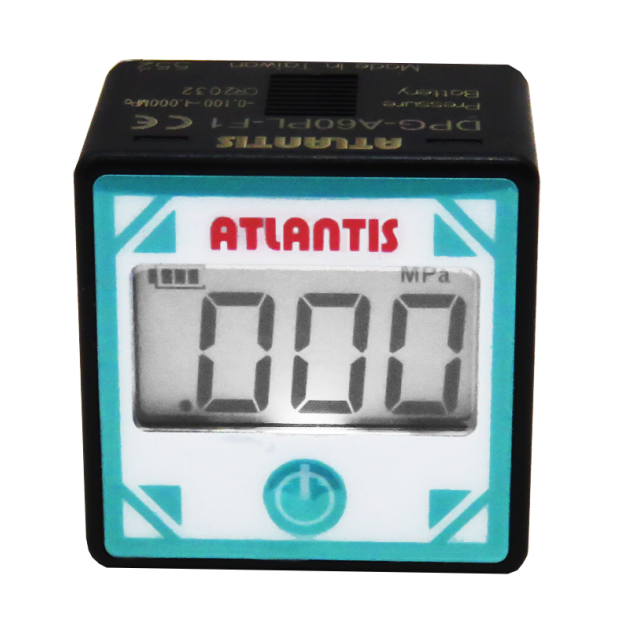

  • NEW_DPG-A60P_PL.jpg
DETAIL
Mini Air Digital Pressure Gauge
Model: DPG-A60 Series


Features
■ OEM service
■ Connection part laser welding
■ Auto power off design to conserve energy
■ Instant measure pressure once power on
■ Protection level IP65(*1)

▼Type
A60V / A60VL / A60P / A60PL
For detail please refer to
technical specification table
▼Size
1.2”(30mm)
▼Pressure connection
Material: SS 304L (standard)/
SS 316L (option)
Laser welding
Thread spec.: 1/8”
Other available upon request
▼Pressure range
Positive pressure▼
0 to 10bar
Negative pressure▼
-101 to 0kPa
▼Applicable fluid
Pure, non-corrosive gases
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
-10°C to 60°C
▼Ambient humidity
85% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temp.: 22℃
max. error: ±0.5% F.S
(0~50℃)
▼Protection level
IP65(*1)
▼Test data
Vibration test: 10 to 55 Hz, 10g
sinusoidal in 3 axes for 2 hours
Humidity test: 250 hours (40°C
and 90% to 95% R.H)
Impact test: 100m/s2 (10g)
sinusoidal in 3 axes for 3 times
▼Ring
ABS, Screw fixed
▼Back housing
ABS
▼Screen display
3.5-digit LCD display
Yellow backlight
▼Refresh rate
2 times/sec
▼Screen size
25 x 15 mm
▼Pressure unit
Positive pressure▼
psi, bar, kg/cm2, MPa
Negative pressure▼
psi, bar, mmHg, kPa
▼Resolution
0.001
▼Measuring elements
High-tech silicon chip
▼Accuracy
2% (0~50°C)
▼Max. operating pressure
Positive pressure▼
15bar
Negative pressure▼
300kPa
▼Compensated temperature
0°C to 50°C
▼Power supply
CR 2032 lithium battery
Auto power saving mode after
idle for 60secs
▼Weight
40g
