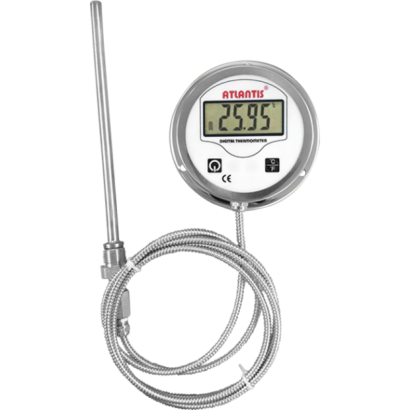

Remote Reading Digital Thermometer DTG-FT
Remote Reading Digital Thermometer DTG-FT
Features
■ OEM service
■ Accuracy ±0.5％F.S. (20℃~ 80℃)
■ All stainless steel design
■ Remote reading with capillary (maximum capillary length 20 meter)
■ Other stem/capillary length, stem diameter, connection specification and material are available upon request
■ Install a thermowell (option)
■ OEM service
■ Accuracy ±0.5％F.S. (20℃~ 80℃)
■ All stainless steel design
■ Remote reading with capillary (maximum capillary length 20 meter)
■ Other stem/capillary length, stem diameter, connection specification and material are available upon request
■ Install a thermowell (option)
DETAIL
Model: DTG-FT
Features
■ OEM service
■ Accuracy ±0.5％F.S. (20℃~ 80℃)
■ All stainless steel design
■ Remote reading with capillary (maximum capillary length 20 meter)
■ Other stem/capillary length, stem diameter, connection specification and material are available upon request
■ Install a thermowell (option)
Main Specifications
▼Size
4”
▼Installation type
Bottom mount with flange
Back mount with flange
▼Window
PC
Sealing with silicone rubber
▼Process connection
Material: SS 304
1/2”NPT
Welded connection
Adjustable single male thread
Other specification available upon request
▼Stem
Material: SS 304
Outer diameter 10mm
Length: 6”(standard)
(Other diameter and length available upon request)
▼Capillary
Material: SS 304
Outer diameter 6.35mm
Length: 3 meter (Maximum length 20 meter)
▼Temperature range
-200℃~ 450℃
▼Applicable fluid
Liquid and gas that compatible with SS 304
▼Ambient temperature
-20℃~+50℃
Other Specifications
▼Ring
Stainless steel
Screw fixed
▼Back housing
SS 304
ABS
▼Screen display
3-digit LCD
Resolution: 0.01
▼Refresh rate
10 secs/times
Option: 5secs/times, 3secs/times
▼Measuring elements
NTC
▼Power supply
3V button battery
▼Accuracy
±0.5％F.S. (-20℃～80℃)
±1.0％F.S. (Other)
