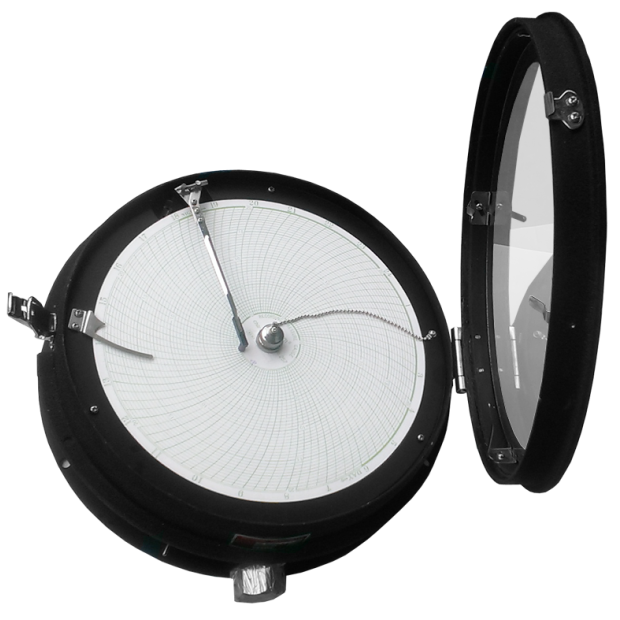

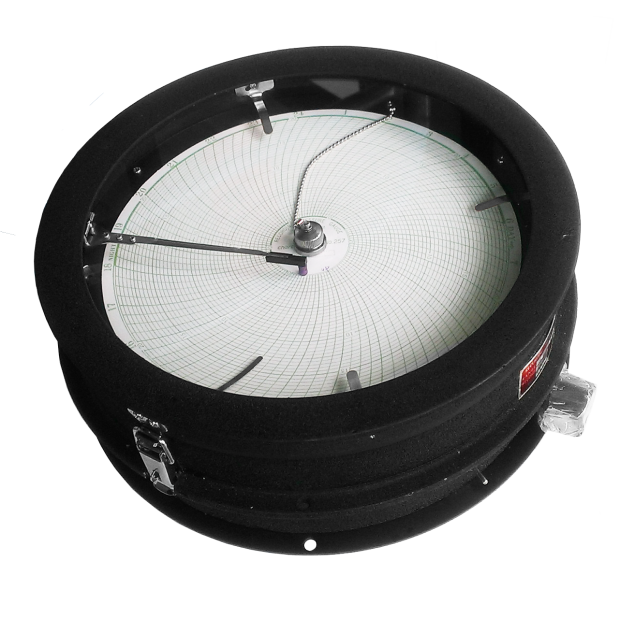

Single (standard) and dual (option) pen temperature record.
  • Temperature Recorder.png
  • Temperature Recorder.png
DETAIL

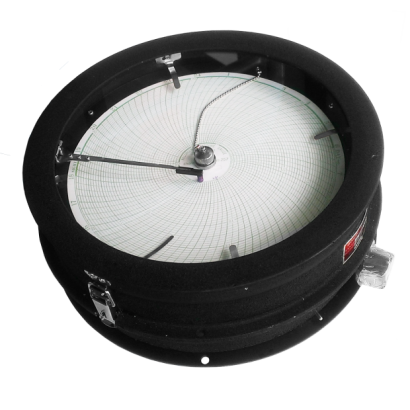

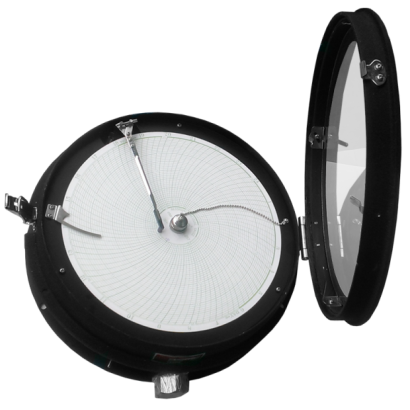

Temperature Recorder
Model: TR


Introduction
Recording principle - chart paper rotation to drive record pen recording temperature. Single (standard) and dual (option) pen temperature record.

Features
■ OEM service
■ To track temperature change continually

Main Specifications
▼Size
8”, 10”,12”
▼Window
Galss / Tempered glass
With O-ring sealed
▼Process connection
Material: SS304 / copper alloy
With O-ring sealed
Size: 1/2”
Type: BSPT, NPT, PF
▼Stem
Material: SS304 / copper alloy
Outer diameter: 1/2” (12mm)
Length: 6”(standard)
▼Temperature range
Min.: -50°C
Max.: +500°C
▼Applicable fluid
Liquid and gas that compatible with connection's material
▼Working environment
Head temperature should not over 90℃
Stem cannot continually expose to:
Operating temperature over
1/2 full scale or 400℃
(Install a thermowell is recommended)
▼Protection level
IP 54

Other Specifications
▼Ring
Aluminum alloy casting
Black enamel
▼Back housing
Aluminum alloy casting
Black enamel
▼Record paper
100 pcs
▼Recording period
12/24hours, 7 days a cycle
▼Measuring elements
Bourdon tube
Material: copper alloy
Gas-actuated
▼Capillary
SS 304
Outer diameter: 6.35mm
3 meter
▼Temperature accuracy
±1.5%F.S.
▼Operating pressure
Stabilization: 3/4* full scale
Short-time: 1* full scale
