Bimetal Thermometer (Bar Magnets Type) BT-BM

Bimetal Thermometer (Bar Magnets Type) BT-BM

Thermometer imported German BITHERMA brand.
  • Bimetal Thermometer.png
  • Bimetal Thermometer.png
  • Bimetal Thermometer.png
DETAIL

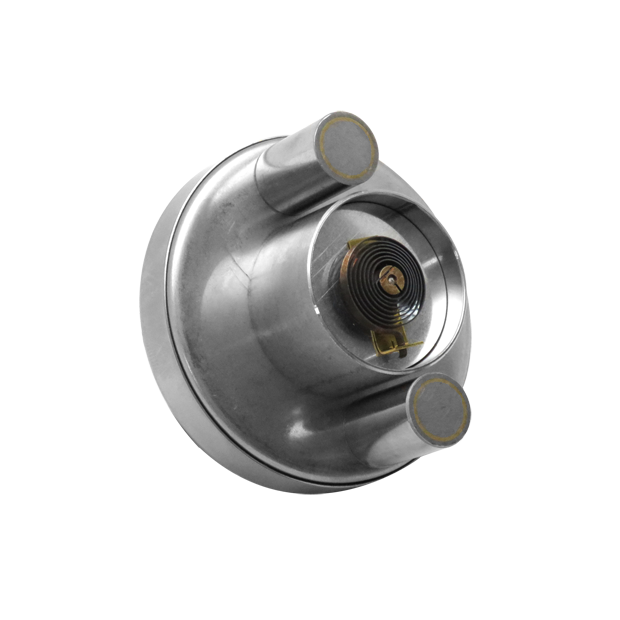

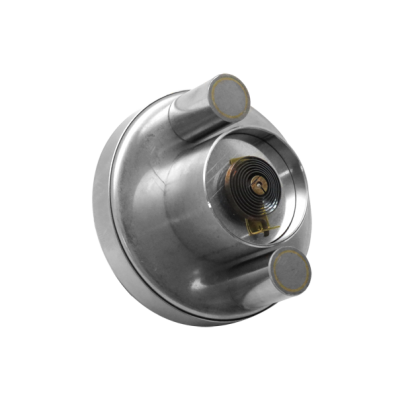

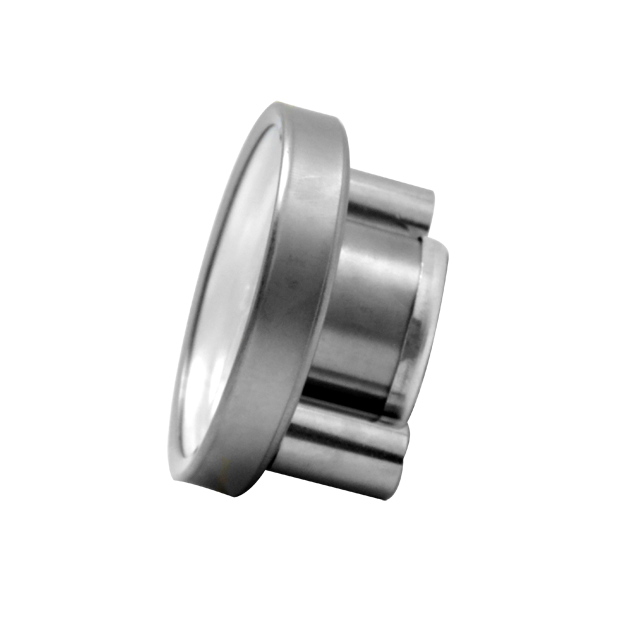

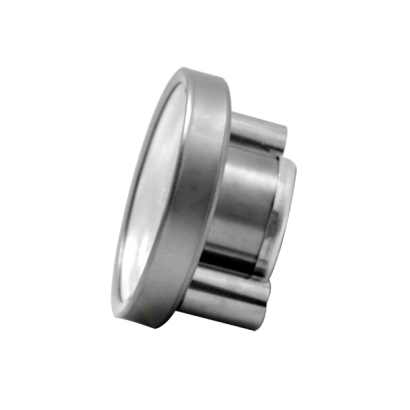

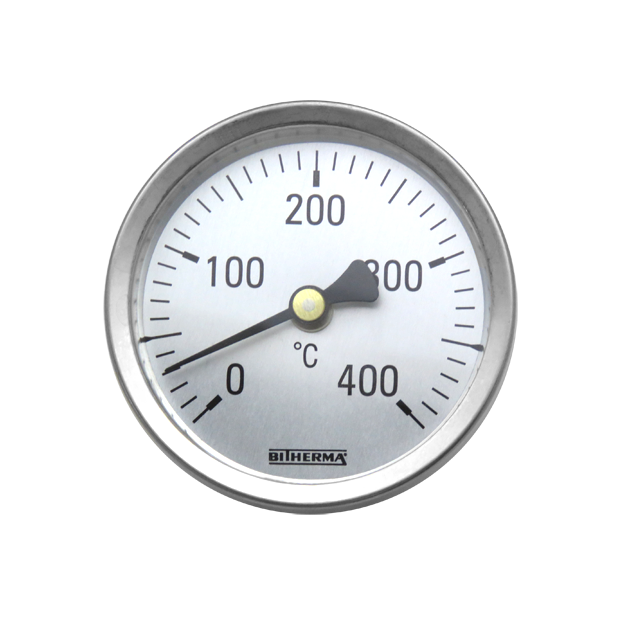

Bimetal Thermometer (Bar Magnets Type)
Model: BT-BM

Introduction

Thermometer imported German BITHERMA brand.

Features
■ Imported from German BITHERMA brand
■ All stainless steel material are available
■ Back mount with bar magnets
■ Number of bar magnets are flexible

Main Specifications
▼Size
2.5”, 3”
(Option: 2”, 4”)
▼Mount type
Back mount with bar magnets
▼Window
Glass / Safety glass
(only available for size > 2.5”)
With O-ring sealed
▼Temperature range
Min.: -50°C
Max.: +600°C
For detail please refer to temperature range table
▼Application
Attachable surface for bar magnets
▼Protection level
IP 54

Other Specifications
▼Housing
Materials are differed from size specification
Please refer to material table
▼Bezel
Materials are differed from size specification
Please refer to material table
▼Back housing
Materials are differed from size specification
Please refer to material table
With bar magnets
▼Pointer
Aluminum with black enamel
Adjustable pointer
▼Dial face
Aluminum with white enamel
All black scale
▼Measuring elements
Bi-metal spiral spring
▼Temperature accuracy
2.5%
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
