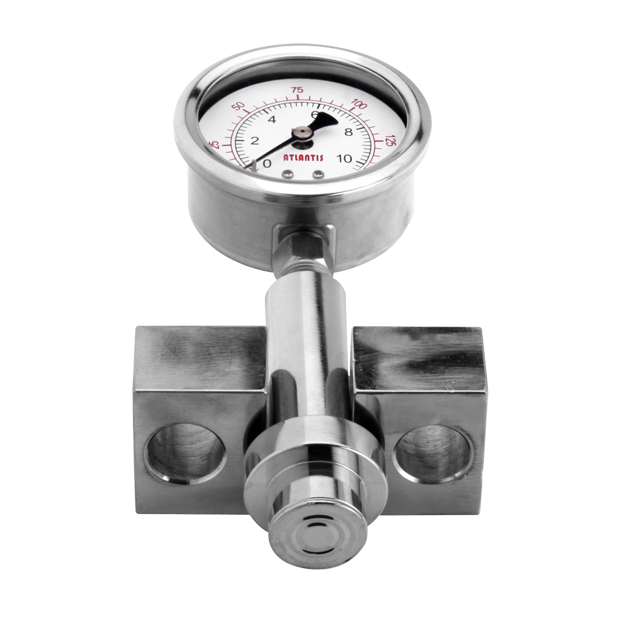

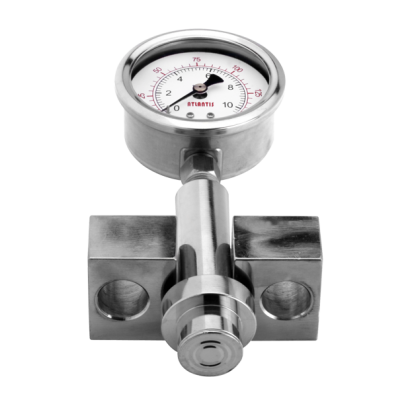

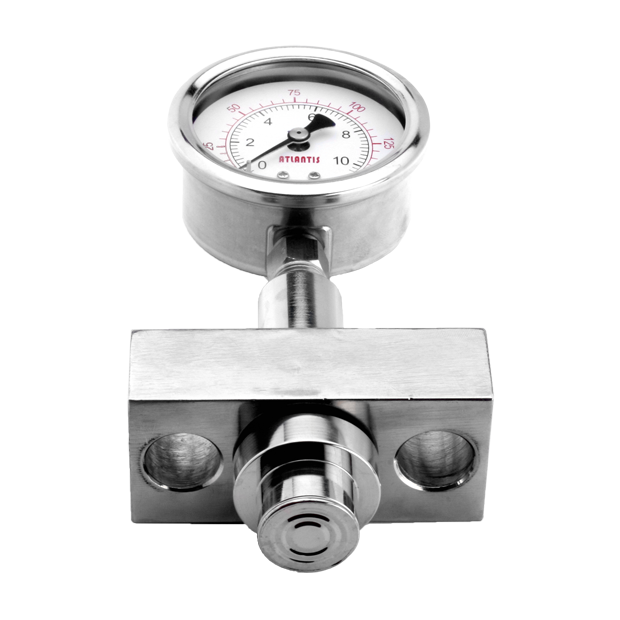

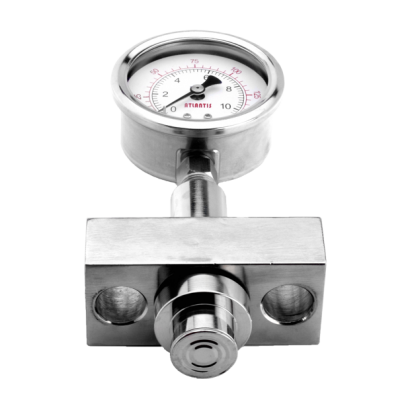

Diaphragm Seal for Homogenizer (Flush Diaphragm Type)
Model: DS350


Introduction

DS350 diaphragm seal is especially designed for homogenizer. It suitable for corrosive, viscous, crystallized  and impurity-contained media measurement. The open design allowing easy cleaning, and blind space has  been eliminated to prevent impurity generated. The internal diaphragm seal is filled with food grade vegetable oil.

Features
■ OEM service
■ The diaphragm seal is especially designed for homogenizer
■ The wetted part adopts SS316L flush diaphragm, the open design allowing easy cleaning, and blind space has been eliminated to prevent impurity generated.
■ The internal diaphragm seal is filled with food grade vegetalbe oil
■ Suitable for corrosive, viscous, crystallized and impurity-contained media measurement.
■ Suitable in food industry such as beverage and diary manufacturers.

Technical Specifications
▼Flush diaphragm diameter
23.5 mm
▼Flange size
42 x 95 mm (2-hole flange)
80 x 89 mm (4-hole flange)
▼Connection size
3/4”(DN20)
1”(DN25)
▼Pressure range
Min.: 100 bar
Max.: 600 bar
▼Applicable media
For corrosive, crystallized, impurity-contained and viscous media pressure measurement
▼Ambient temperature
10°C to 60°C
▼Fluid temperature
+110°C
▼Protection level
IP68


▼Structure
All-welded design
Flush diaphragm connection
▼Installation type
2-hole flange (open type)/2-hole flange (close type)/4-hole flange (close type)
▼Liquid-filling
Food grade vegetable oil
▼Rinse
Direct rinse
▼Body material
SS304 (standard)
Other available material please refer to order table
▼Diaphragm material
SS316L (standard)
Other available material please refer to order table
