Thermocouple (Weather Resistance Type) TC

Thermocouple (Weather Resistance Type) TC

■ OEM service
■ Customized stem length
■ Suitable for measuring medium/high temperature

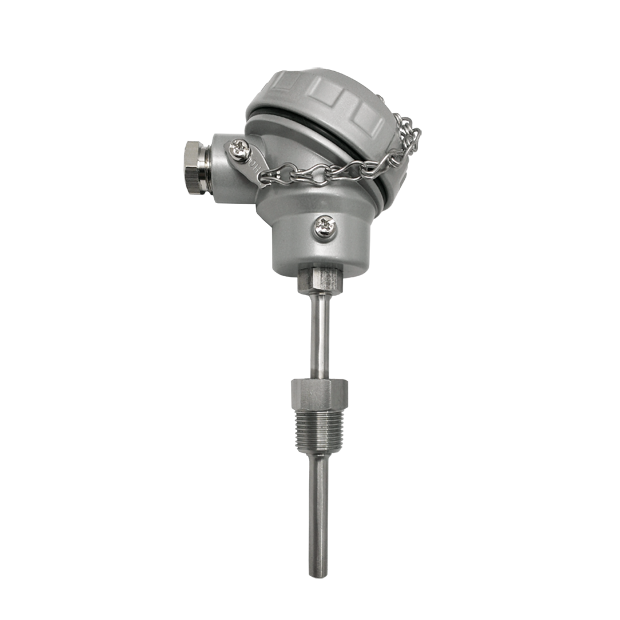

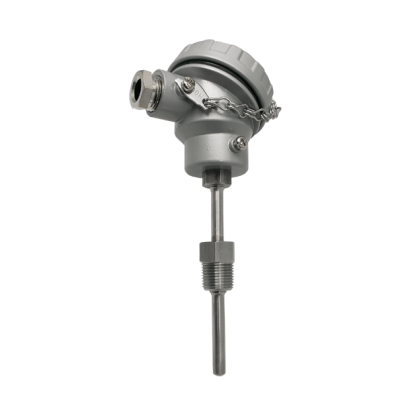

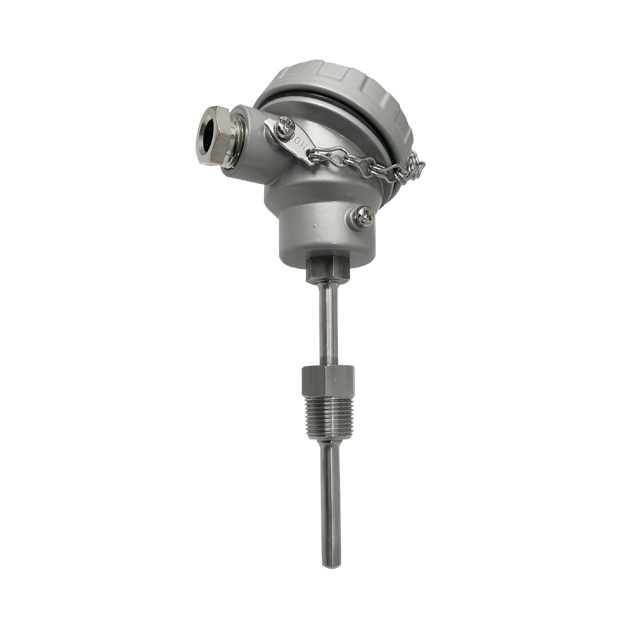

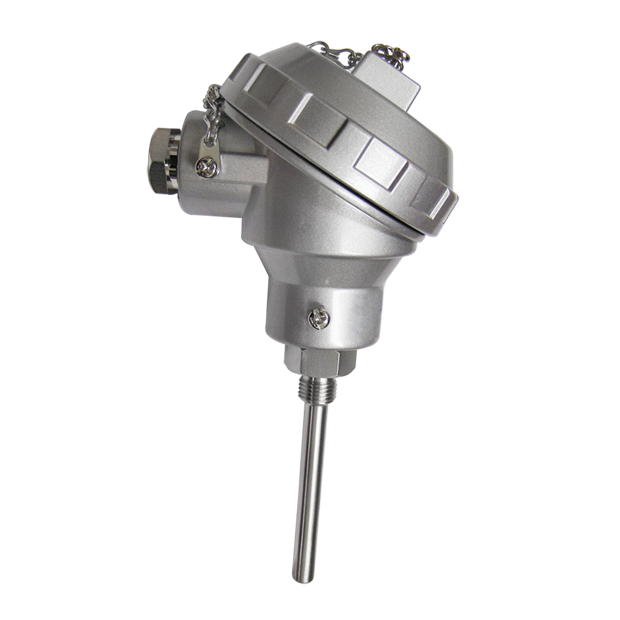

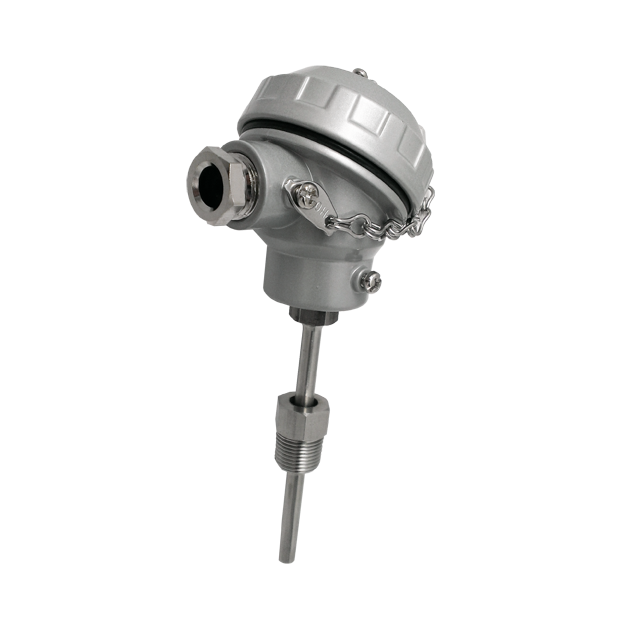

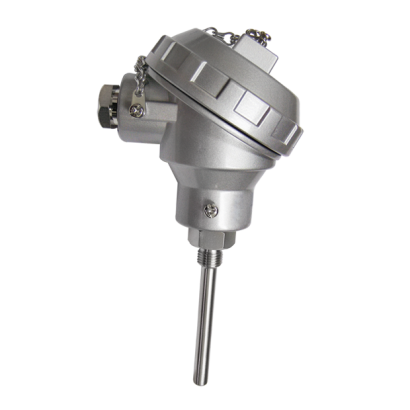

  • Thermocouple _Weather Resistance Type_ TC.png
  • Thermocouple _Weather Resistance Type_ TC -.png
  • Thermocouple _Weather Resistance Type_ TC - -.png
  • Thermocouple _Weather Resistance Type_ TC - - -.png
DETAIL
Thermocouple (Weather Resistance Type)
Model: TC


Features
■ OEM service
■ Customized stem length
■ Suitable for measuring medium/high temperature

Main Specifications
▼Type
Weather resistance
▼Thread
Material: SS 304
Size: 1/2”
Type: BSPT, NPT, PF
▼Electrical connection
1/2”NPT, M20 x 1.5
▼Stem
Material: SS 304
Outer diameter: 1/4” (6.35mm)
Length: 50…2000 mm
▼Temperature range
Min.: 0°C
Max.: 1800°C
▼Applicable fluid
Liquid and gas that compatible with SS 304
▼Working environment
Insert depth: At least > 8*thermowell outer diameter
▼Ambient temperature
15°C to 35°C
▼Ambient humidity
45 to 75% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Protection level
IP 65

Other Specifications
▼Ring
Aluminum alloy with enamel
▼Back housing
Aluminum alloy with enamel
▼Measuring elements
Thermocouple
For detail information, please refer to temperature range table
▼Temperature accuracy
Class I/II
