Simple diaphragm pressure gauge (Threaded Process Connection), DS122 series

Simple diaphragm pressure gauge (Threaded Process Connection), DS122 series

Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous and crystalline or with impurities. Particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.
DETAIL

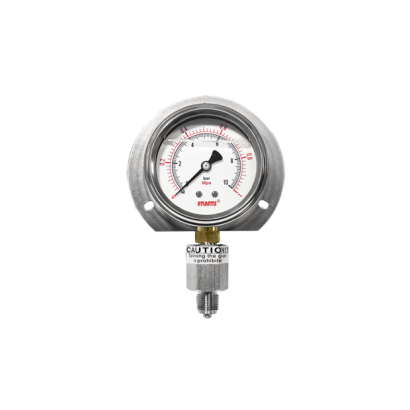

Simple diaphragm pressure gauge (Threaded Process Connection)
Model:   DS122 series


Introduction
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous and crystalline or with impurities. Particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.

Features
■ OEM service
■ Economic
■ Material of diaphragm is Viton, high temperature material, acid proof, alkali proof


SPECIFICATIONS
▼Instruments:
All series pressure gauges and pressure transmitters are available
▼Process Connection (Thread):
1/4" PF (BSP), male thread
Material:Standard-SUS304
Option-SUS316 or Brass
<Other sizes are available upon request>
▼Diaphragm diameter:
Φ25mm x 27mmL
▼Diaphragm material:
Standard-SUS304 ,SUS316
Option-Brass
▼Diaphragm:
viton
▼Coating (option):
Teflon;PFA
▼Temperature:
Ambient < 60℃
Medium< 200℃
▼Filling Fluid:
Glycerin or silicon oil depends on temperature of on-site/medium
▼Pressure Range:
0 / 5 ~ 0 / 60 kg/cm2 (bar), positive
(Below 5 kg/cm2 or over 60 kg/cm2 please choose other types of diaphragm pressure gauges)
