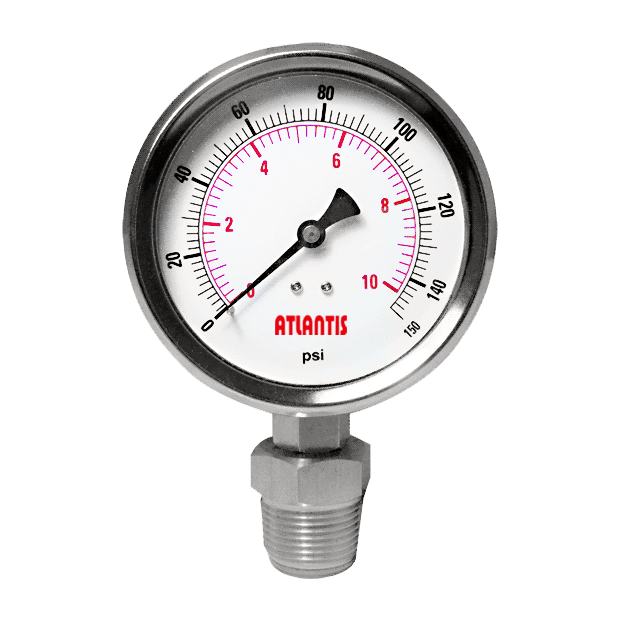

  • Threaded Flush Diaphragm

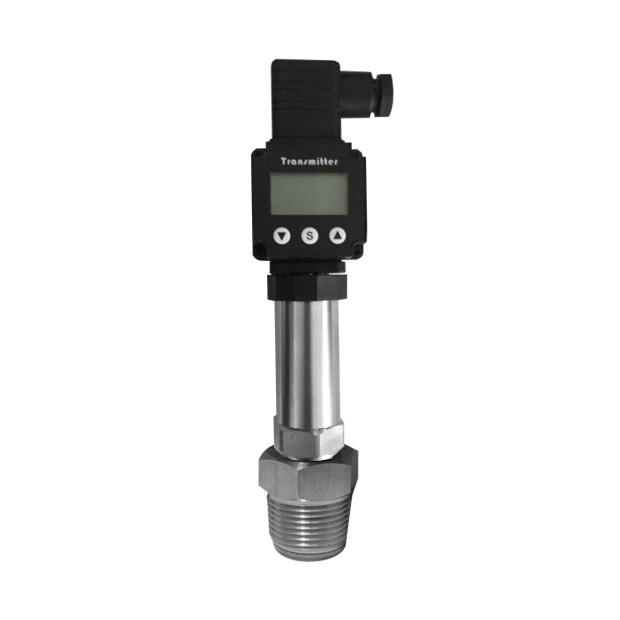

  • Threaded Flush Diaphragm

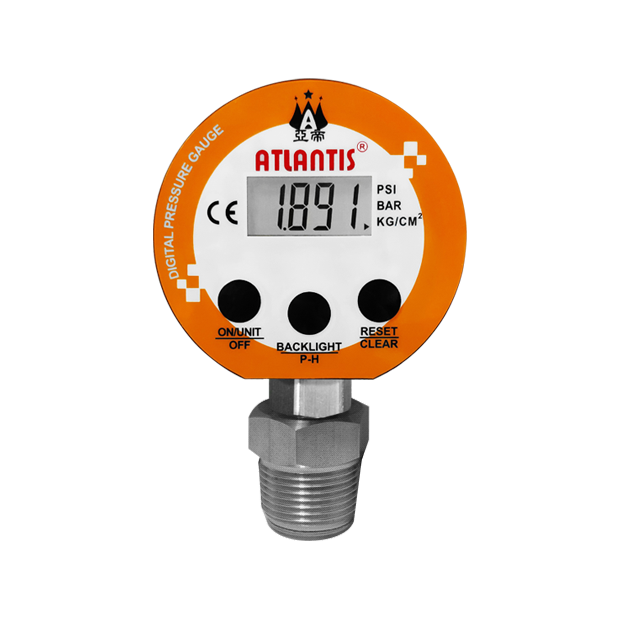

  • Threaded Flush Diaphragm

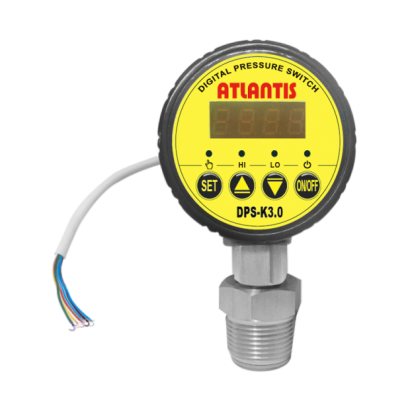

  • Threaded Flush Diaphragm
DETAIL
Threaded Flush Diaphragm
Model: DS132H series


Introduction
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous and crystalline or with impurities. Particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.

Features
■ OEM service
■ Easy to clean and maintain

SPECIFICATIONS
▼Instruments:
All series pressure gauges and pressure transmitters are available
▼Process Connection (Thread):
1/2";3/4";1";1.5";2" PT/NPT, male thread, SUS316
▼Diaphragm Housing:
Material-SUS304
Option-SUS316
▼Diaphragm:
SUS316L
▼ Coating (option):
Teflon;PFA
▼Temperature:
medium +80℃;ambient 10 to 60℃ for medium 80℃ to 400℃ or ambient below 10℃ available made-to-order
▼Filling Fluid:
Glycerin or silicon oil standard (depends on temperature)
▼Pressure Range:
1/2"~3/4" - 60~600 kg/cm2 ( Transmitter / Digital Pressure Gauge)
1" - 2.5~600 kg/cm2
1.5" - 1~600 kg/cm2
2" - 0~1000 kg/cm2
▼Protection:
IP68
▼Accuracy:
1.6%
▼Accessory (option):
1.Cooling fin
2.Capillary for remote measurement(Specify length of capillary when ordering)
▼Inner material:
Brass
▼Outer material:
SUS ( or all is made of SUS )
