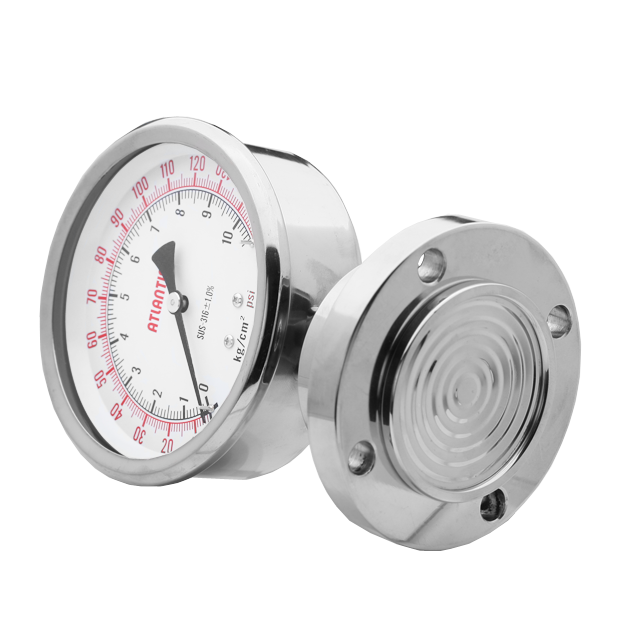

DIAPHRAGM SEALED Flange Process Connection-Single flange type
Model: DS300 series


Introduction
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media, particularly used in chemical and petrochemical industry.

SPECIFICATIONS
▼Instruments
All series pressure gauges and pressure transmitters are available
▼Process Connection (Flange):
JIS 10K-1/2";3/4";1";1-1/4";1-1/2";2" (FF standard ; RF optional)
ANSI 150LB-1/2";3/4";1";1-1/4";1-1/2";2" (RF standard ; FF optional)
DIN、EN 10Bar-15;20;25;32;40;50;80;100
GB/T 1.0Mpa-15;20;25;32;40;50;80;100
(Other flange sizes are available upon request)
▼Flange Material:
SUS304;SUS316;SUS316L
▼Diaphragm:
Standard-SUS316L
Option-Nickel, Teflon (PTFE), Hastelloy C, Monel, Tantalum, Titanium
▼Coating (option):
Teflon;PFA
▼Lining (option):
Teflon;PFA;PVDF
▼Temperature:
medium +80℃;ambient 10 to 60℃ for medium 80~400℃ or ambient below 10℃ available made-to-order
▼Filling Fluid:
Glycerin or silicon oil standard<depends on temperature>
▼Pressure Range:
positive 0 / 2.5 ~ 0 / 60 kg/cm2 (bar), negative or compound not available
▼Accessory (option):
1. Cooling fin
2. Capillary for remote measurement (specify length of capillary when ordering)
