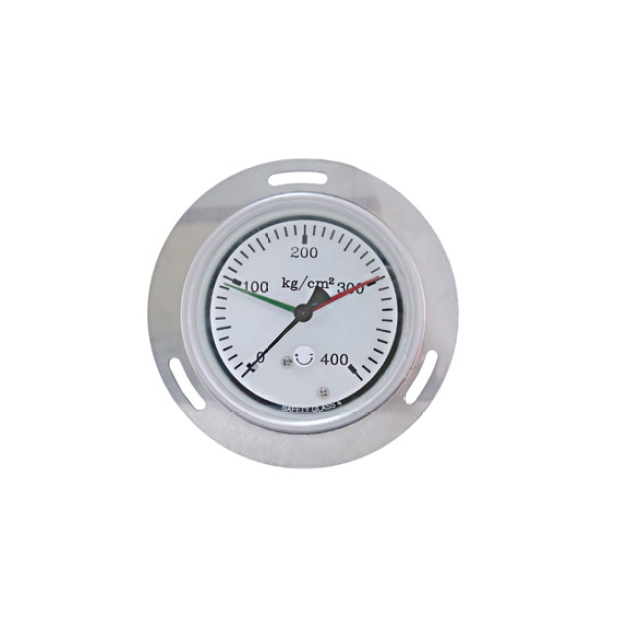

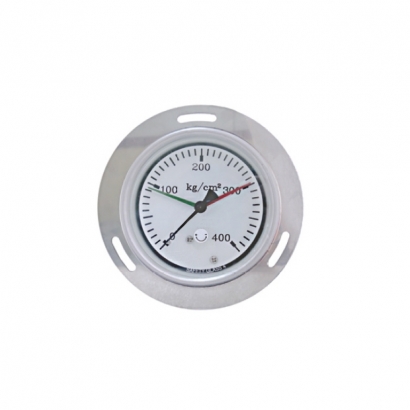

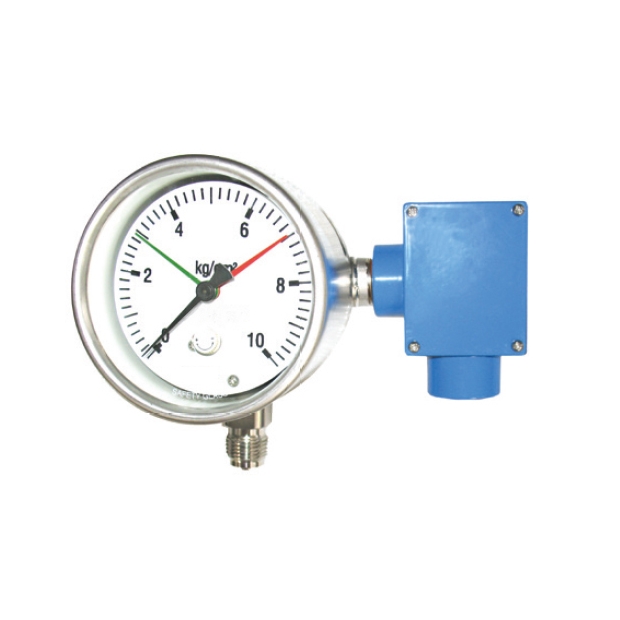

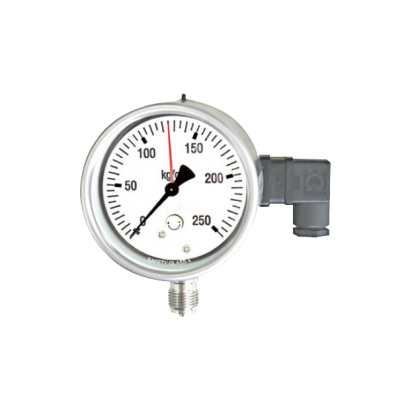

Analog Pressure Gauge with Micro Switch (Weather-proof type)
Model: AMPS (WP)


Features
■ OEM Service
■ Adjustable zero and span
■ Set point full scale adjustment

Main Specifications
▼Dial diameter
4”, 6”
▼Window
Safety glass
▼Process connection
1/2”NPT / PF male
▼Conduit connection
(for bottom entry only)
SPDT x 1: DIN 43650
SPDT x 1 or SPDT x 2: M20 x 1.5 or 1/2”NPT female (adaptor available)
▼Cable gland (for back entry only)
M16 x 1.5
▼Pressure range
Min.: -1 kg/cm2
Max.: 400 kg/cm2
▼Ambient Temperature
-20℃ to +70℃
▼Applicable fluid
Liquid and gas that compatible with SS 316
▼Temperature error
Every ±8℃
max error: ±0.5%
▼Protection level
IP66

Other Specifications
▼Connection type
Back / Bottom (adaptor available)
▼Housing
SS 304
▼Measuring elements
Burdon tube
Material: SS 316
▼Wetted parts
SS 316
▼Contact
Pure silver 999.9
▼Protection
Blow-out back
Diameter: 25mm
▼Accuracy (Gauge indication)
±1.0%
▼Micro switch form
One setting point: SPDT x 1
Two setting points: SPDT x 2
▼Operating voltage
AC: 250 VAC max. (standard)
DC: 28 VDC max. (standard)
▼Current
AC: 5A max.
DC: 5A max. (ohmic load)
3A max. (inductive load)
▼Micro switch dead band
±2% - ±5%
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
Overpressure: 1.3* full scale
