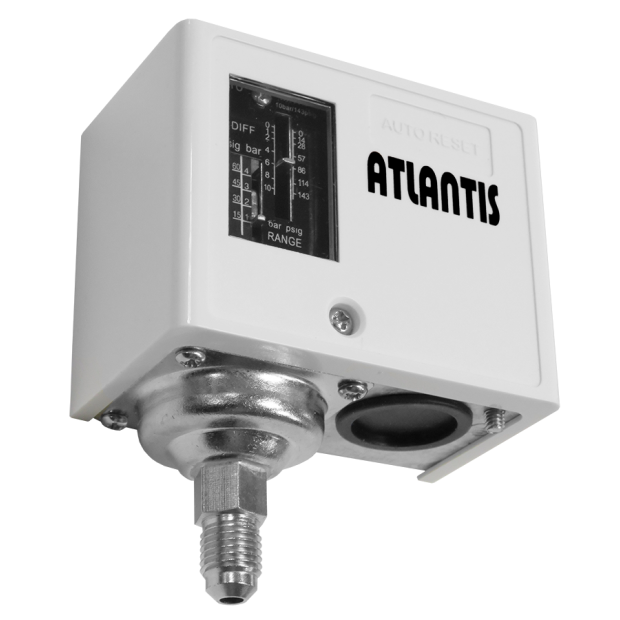

Compact Pressure Switch ATHLP(S)

Compact Pressure Switch ATHLP(S)

Pressure switch is mainly used to protect the refrigeration and air conditioning system, the pressure can be automatically adjusted by intake or release pressure, and it can also be used to control the refrigeration compressor and air compressor fan switch.
DETAIL
Compact Pressure Switch
Model: ATHLP(S)


Introduction
Pressure switch is mainly used to protect the refrigeration and air conditioning system, the pressure can be automatically adjusted by intake or release pressure, and it can also be used to control the refrigeration compressor and air compressor fan switch.

Features

■ OEM service
■ Economic pressure switch with comprehensive applications
■ Renovated micro-switch structure ensures the reliable switch function
■ Standard support rack (L-shape) suits various kinds of application

Main Specifications
▼Pressure connection
Material:
Chrome-plated copper alloy
7/16”UNF (1/4”SAE)
▼Switch type
SPDTx1
▼Pressure range
Low side▼
5 to 20 bar
High side▼
5 to 30 kg
( Please refer to catalog P1 pressure setting range)
▼Wiring type
Screw clamp terminal blocks
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-20°C to +70°C
▼Operation temperature
-10°C to +80°C
▼Fluid temperature
-10°C to +80°C
▼Temperature effect
Every 12°C
max. error ±0.5% F.S
▼Protection level
IP44

Other Specifications
▼Case
White ABS
▼Socket
Chrome-plated copper
▼Movement
Copper alloy
▼Operating pressure
Max. 30bar
▼Operating voltage
Max. 240V
▼Operating current
Max. 15A
▼Min. contact capacity
50mA
▼Rack material
L-shape rack, galvanized iron
