Flush Diaphragm Pressure Transmitter FDPT-Series

Flush Diaphragm Pressure Transmitter FDPT-Series

FDPT series flush diaphragm pressure transmitter adopts flush connection design. The blind space has been eliminated to prevent impurity generated, making FDPT series transmitter suitable for corrosive or viscous media pressure measurement.
  • Flush Diaphragm Pressure Transmitter.png
  • Flush Diaphragm Pressure Transmitter.png
DETAIL

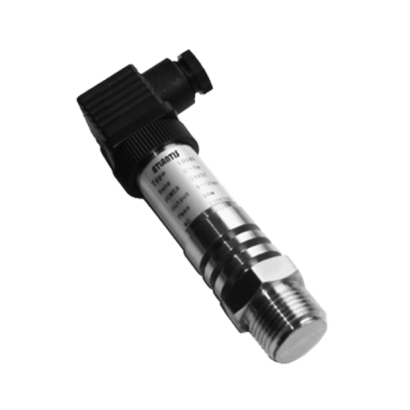

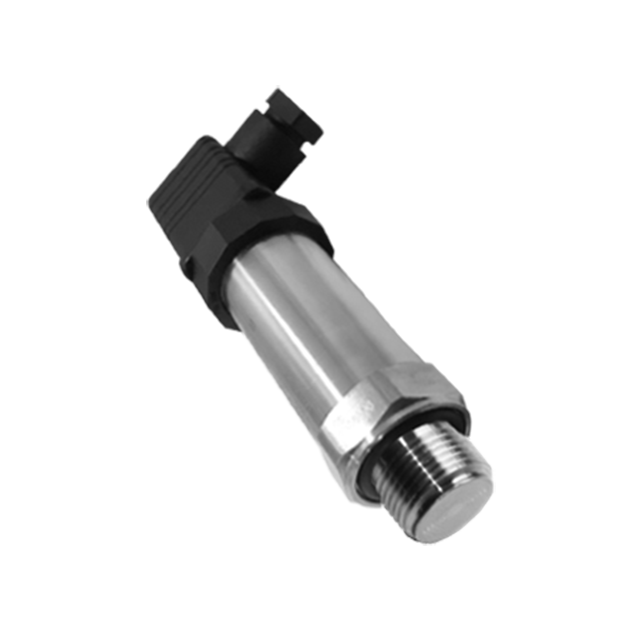

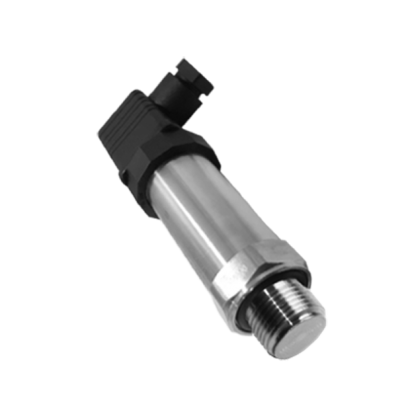

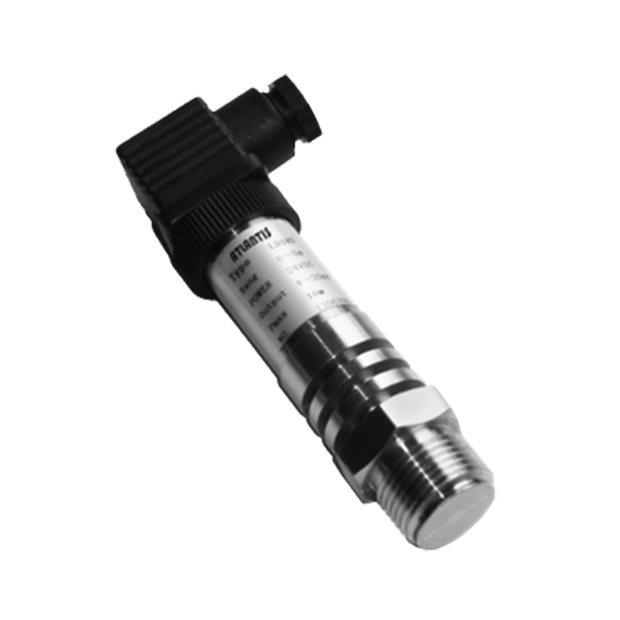

Flush Diaphragm Pressure Transmitter
Model: FDPT-Series


Introduction
FDPT series flush diaphragm pressure transmitter adopts flush connection design. The blind space has been eliminated to prevent impurity generated, making FDPT series transmitter suitable for corrosive or viscous media pressure measurement.

Features
■ OEM service
■ Flush process connection is designed for sanitary-required environment such as food industry
■ High anti-interference, great electric linearity and low temperature drift coefficient
■ High reliability, shock and abrasion resistance
■ Field zero and span adjustment

Main specifications
▼Type
FDPT (Standard)
FDPT-HT (High temperature)
▼Process connection
Material: SS316L
Flush connection
G 1/2”
M20 x 1.5
Rubber O-ring sealed
▼Electrical connection
Hirschmann connector DIN43650 / Cable outlet
▼Pressure range
0…1 to 100bar
▼Applicable fluid
Corrosive or viscous media that compatible with connection’s material
▼Operating temperature
FDPT▼
-20 to 85℃
FDPT-HT▼:
-20 to 150 ℃
▼Protection level
IP65 (standard)
IP66 (cable outlet)

Other specifications
▼Case material
SS304
▼Power supply
24VDC
▼Output signal
2-wire:4~20mA
3-wire:0-5V / 0-10V
▼Load resistance
900Ω
▼Accuracy
0.1% / 0.25% / 0.5%
▼Linear accuracy
0.05%
▼Temperature compensation
-10 to 70℃
▼Temperature drift
Standard: ±0.02%/℃
(Option: ±0.01%/℃)
▼Stability
0.2%/year for accuracy 0.5%
▼Overpressure
2*F.S.
▼Weight
215g
